5.5KIP (25kN) MTS 312.21 Fatigue Load Frame
MTS Model 312.21
LOAD FRAME SPECIFICATIONS:
Model Number / Serial Number: 312.21 / 126
Capacity (KIP): 5.5
Number Of Columns: 2
Distance Between Columns: 21"
Test Specimen Max. Length: 46" (Less Load Cell & Tooling)
Table Size (W x D): 21" x 10"
Approximate Overall Dimensions (W x D x H): 34" x 26" x 97"
Approximate Weight (Lbs): 2,500
EQUIPPED WITH:
-
MTS 5.5 KIP, 3000 PSI Actuator, with 6" Stroke, LVDT
-
Interface 1010ACK-5K-B 5K (25 kN) Fatigue Rated Load Cell
-
25kN NADCAP Alignment Fixture
-
MTS/Moog Servo Valve
-
MTS Hydraulic Crosshead Lifts
FOB Warren, MI
Reconditioned with Warranty
90 Day Parts and Labor Warranty

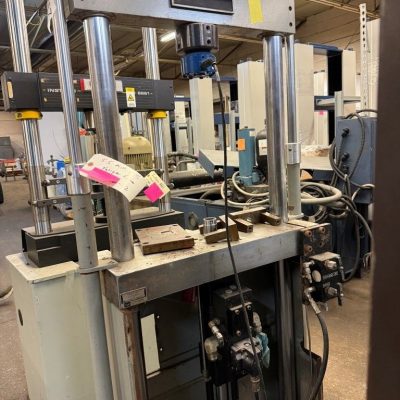

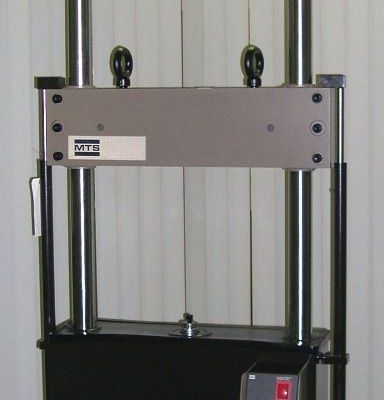

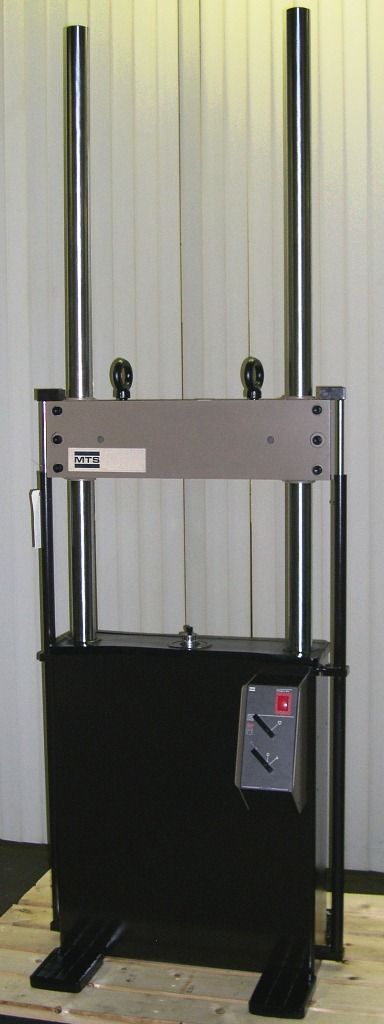

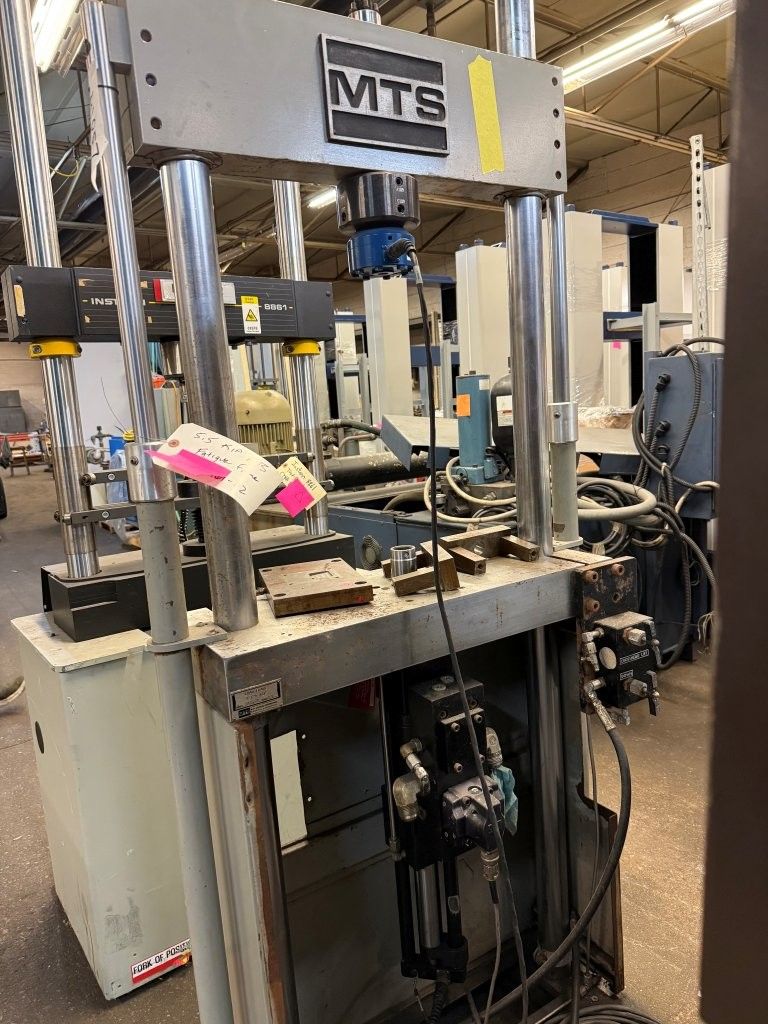

*Representative Image After Reconditioning and Actual Images Before Reconditioning
Click for quote | #12461-02
