5,625 lbf (25 kN) MTS Model QTest 25

MTS Model QTest 25

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Screws: 16"

Testing Stroke: 48"

Table Size: 16" x 4"

Testing Speed (IPM): .002 - 20

Load Frame (W x D x H): 23" x 26" x 70"

Approximate Weight: 600 lbs.

Electrical Requirements: ( V, Hz, PH): 230, 60, 1

EQUIPPED WITH:

Computer System with Keyboard & Mouse.
24" LED-Backlit LCD Color Monitor
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
New AC Servo Motor and AC Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
25kN Tension & Compression Load Cell

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

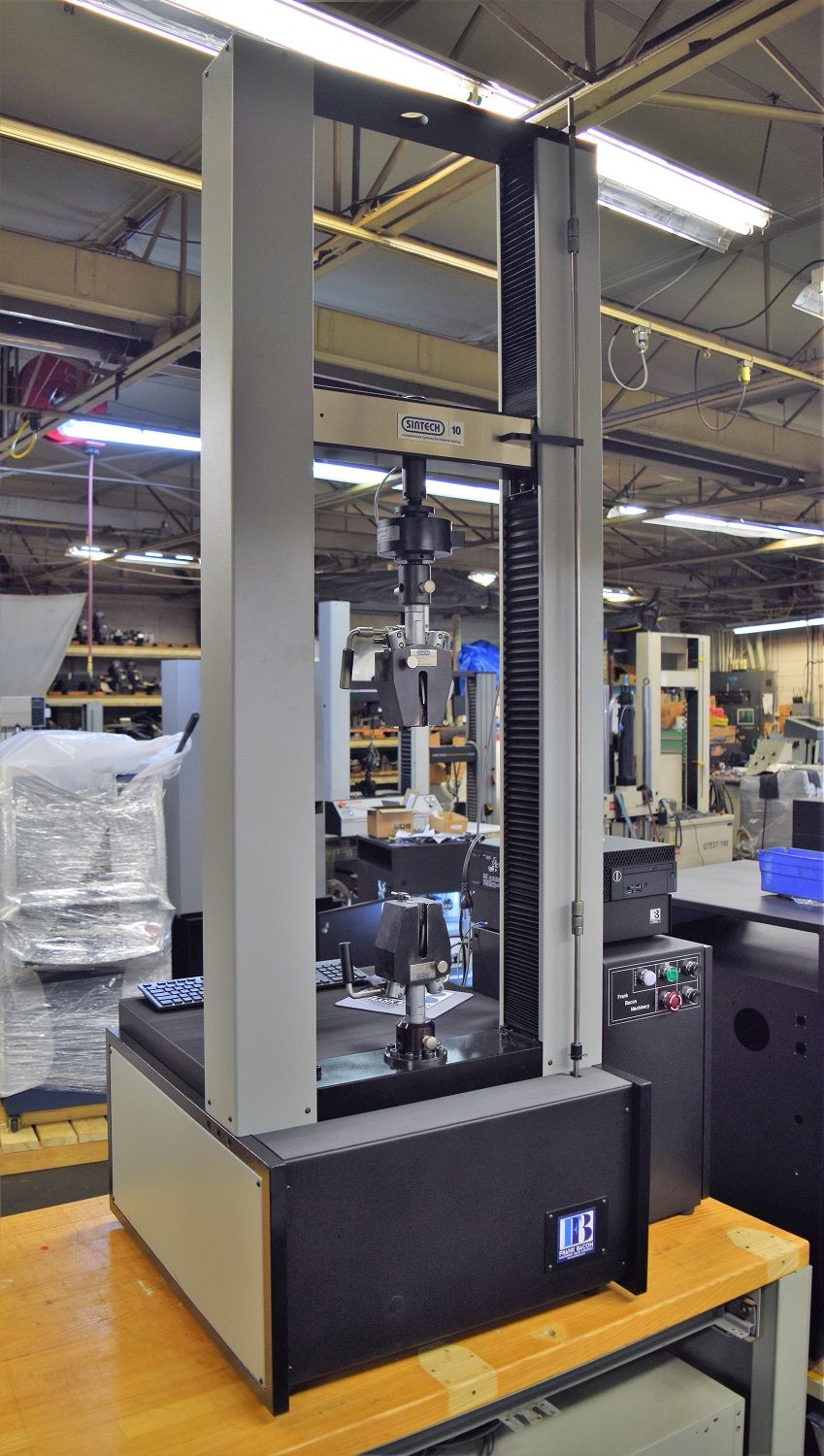

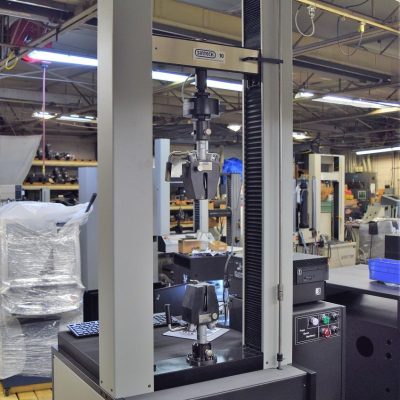

*Actual Images
