5,750 (25kN) MTS Sintech 2G

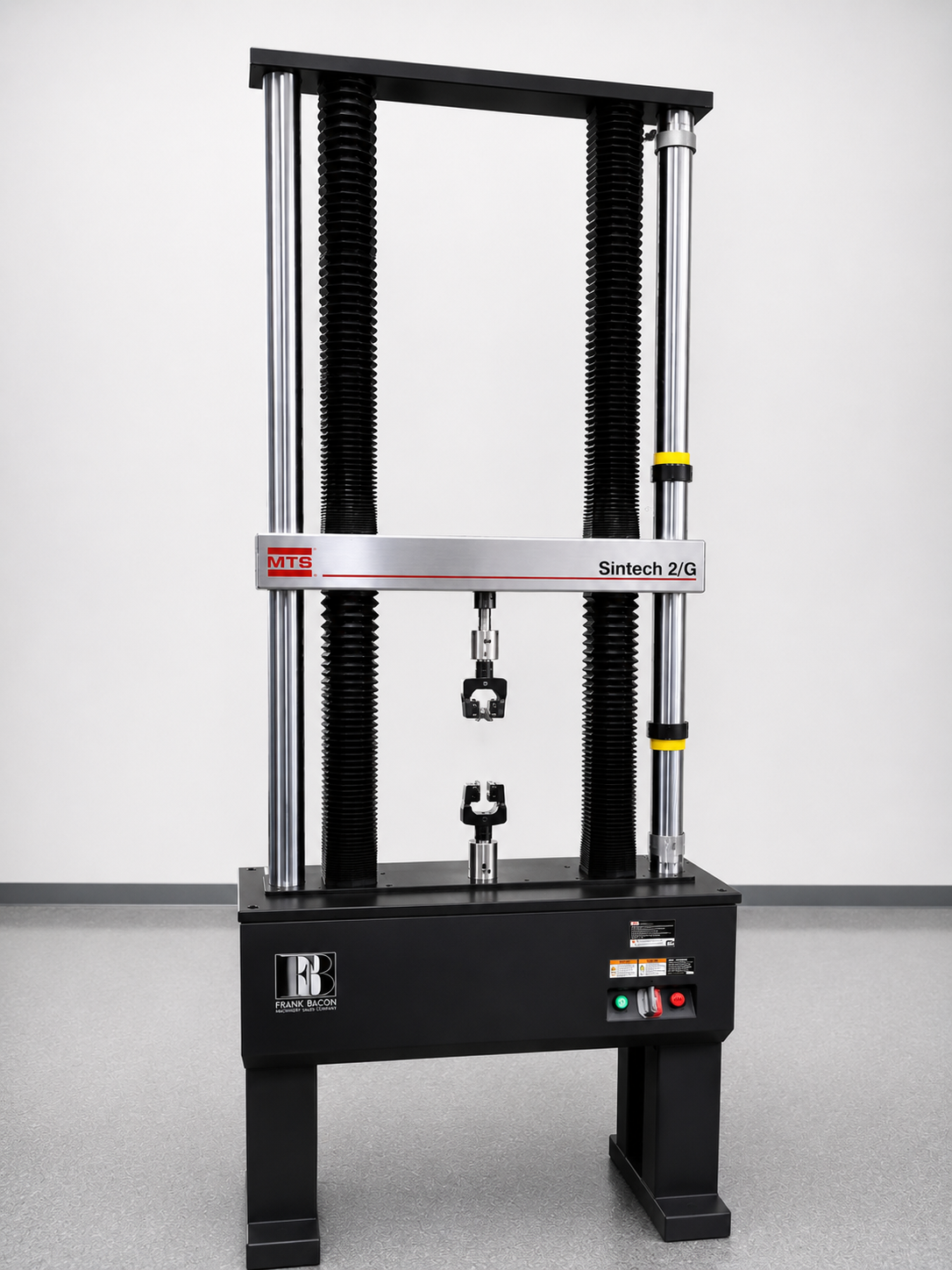

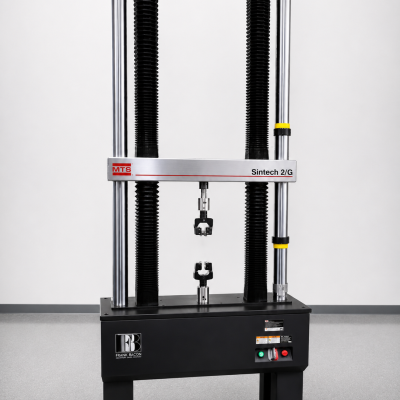

MTS Sintech Model 2G
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 16"
Testing Stroke: 48"
Table Size (W x D): 4" x 16"
Testing Speed (IPM): .00002 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 28" x 35" x 98"
Approximate Weight (lbs): 950
Electrical Requirements (V,Hz,PH): 200-230, 60, 1
EQUIPPED WITH:
-
Computer System with Keyboard & Mouse.
-
24" LED-Backlit LCD Color Monitor
-
Microsoft Windows 10 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-
New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
-
25kN Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
Click for quote | #13143-03
