5,750 lbf (25 kN) Capacity Instron Model 4303 Tensile & Compression Testing System

(1) Reconditioned 5,750 lbf (25 kN) Capacity Instron Model 4303 Electro-Mechanical Unispace Tension and Compression Testing Machine with 25 kN Tension & Compression Load Cell

Instron Model 4303

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 15"

Testing Stroke: 48"

Table Size (W x D): 16" x 8.5"

Testing Speed (IPM): .0002 to 20

Crosshead Adjusting Speed (IPM): 10

Approximate Overall Dimensions:

Load Frame (W x D x H): 47" x 25" x 66"

Weight (lbs.): 490

Electrical Requirements (V, Hz, PH): 230, 50-60, 1

EQUIPPED WITH:

• New Computer System with Keyboard & Mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• 25 kN Tension & Compression Load Cell
• Upper and Lower Quick Release Hubs

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

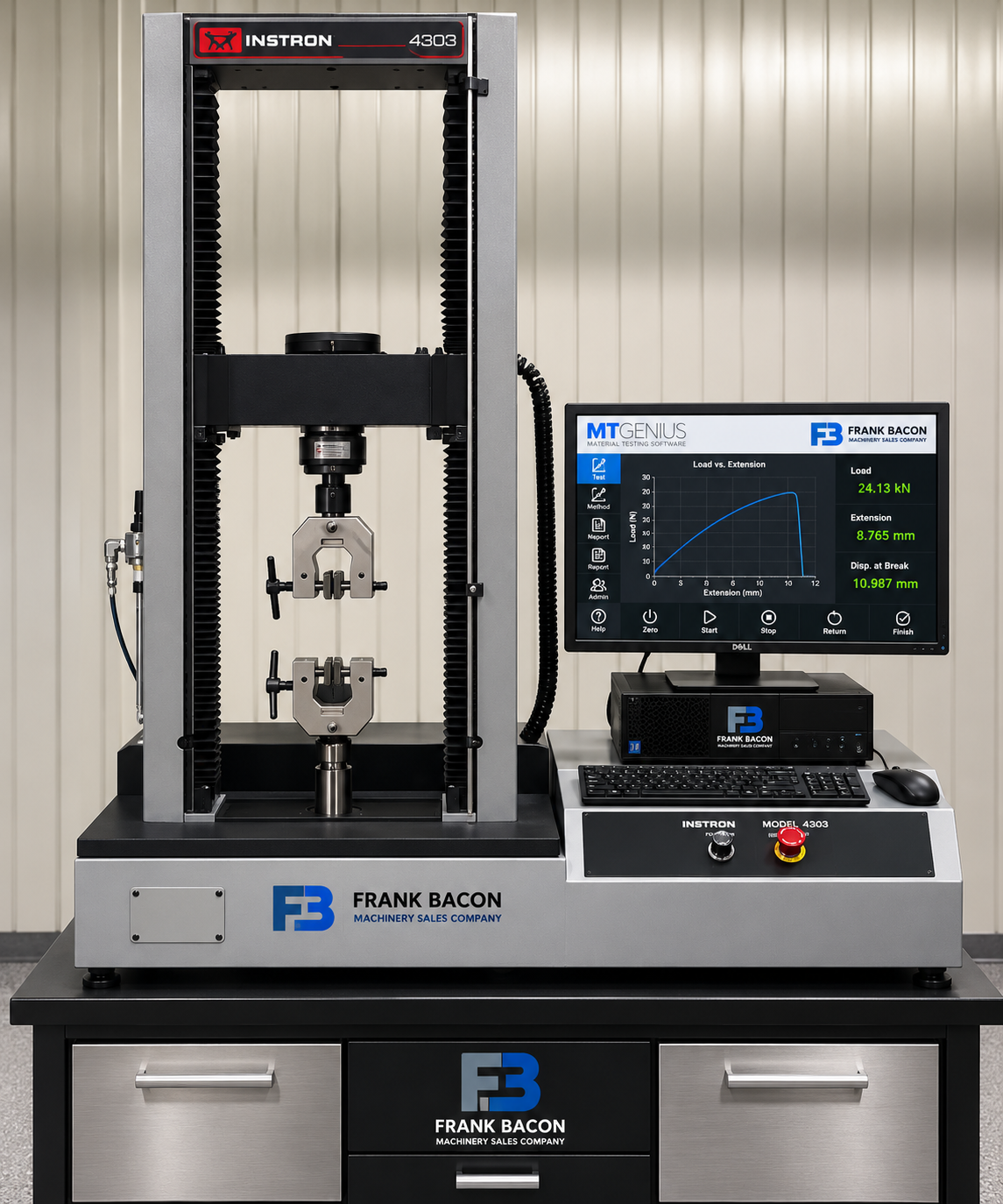

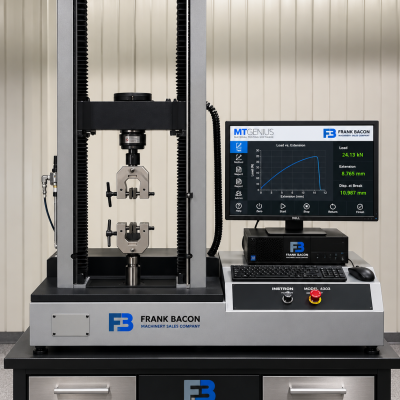

*Representative Image After Reconditioning
