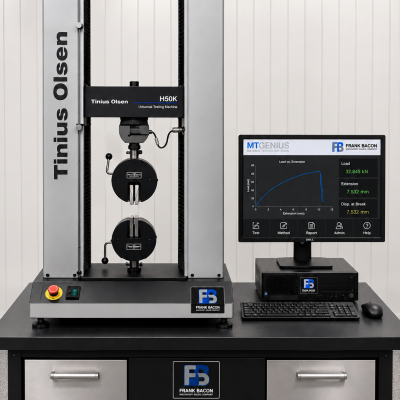

(1) Reconditioned 11,250 lbf (50 kN) Capacity Tinius Olsen, H50K, Electro-Mechanical Tension and Compression Testing Machine.

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 42"

Compression Testing Opening (Less Tooling): 42"

Distance Between Columns/Screws: 16"

Testing Stroke: 42"

Table Size (W x D): 16" x 6"

Testing Speed (IPM): .0002 to 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

Load Frame (W x D x H): 28" x 20" x 64"

Approximate Weight (lbs.): 60

Voltage: 200-240V, 60Hz, 1Ph

EQUIPPED WITH:

• Computer System with Keyboard & Mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• New AC Servo Motor and AC Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 10K (50kN) Tension & Compression Load Cell

FOB WARREN, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

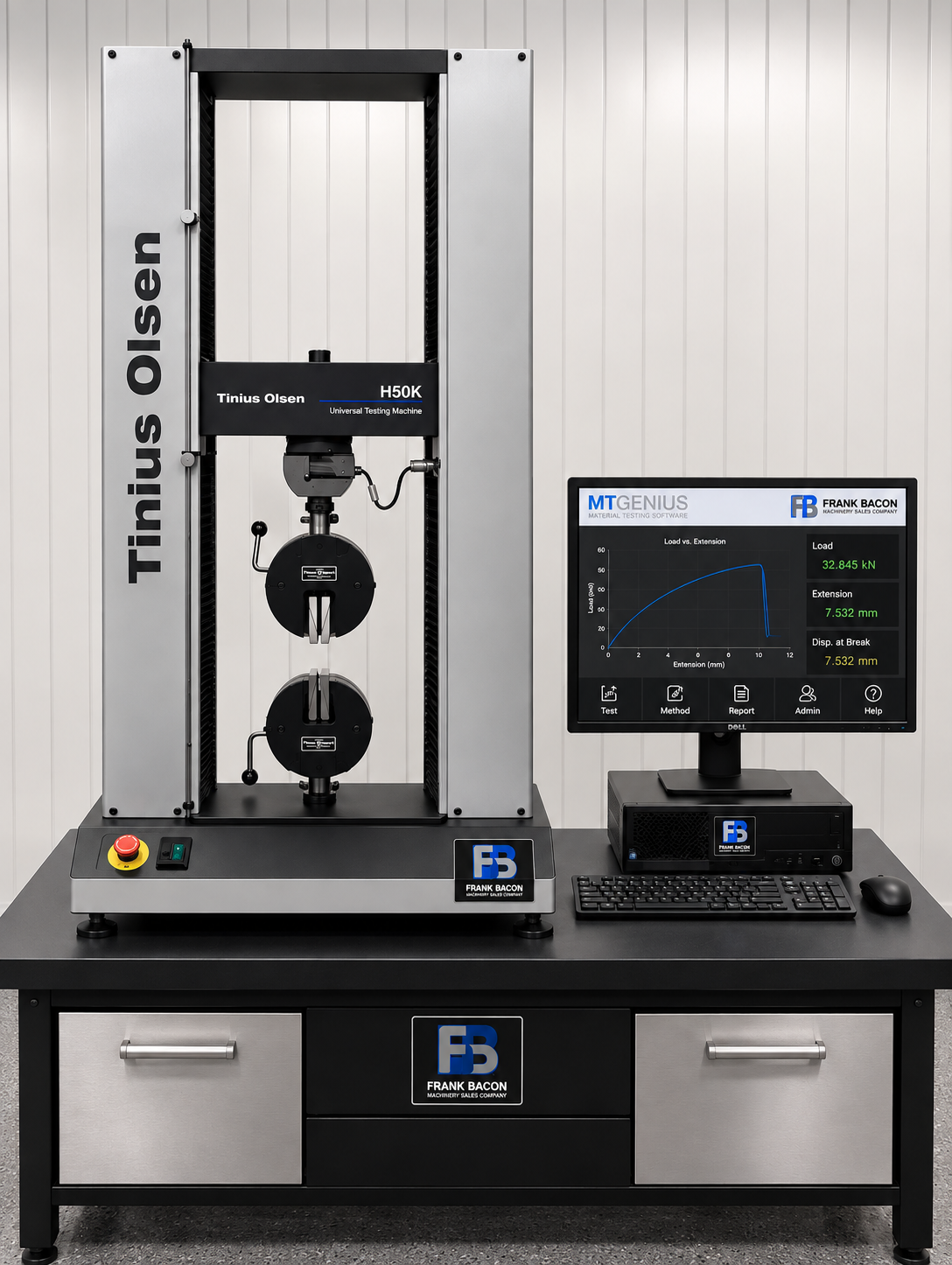

*Representative Image
