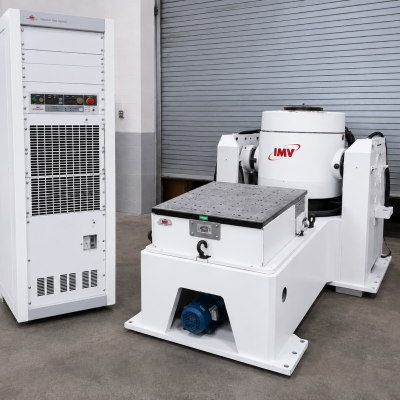

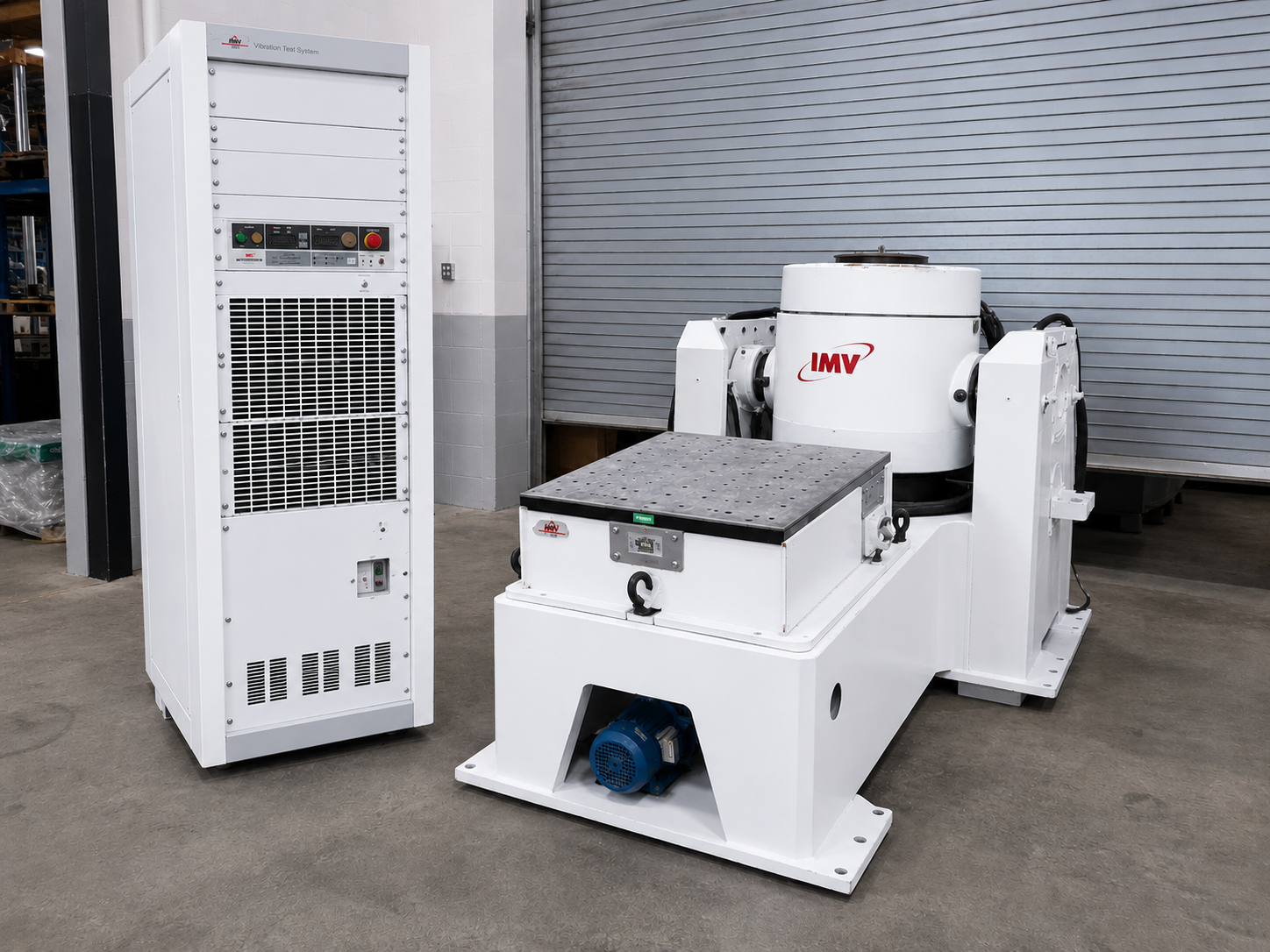

54kN IMV Corporation Model I260/SA7M Vibration System

(1) USED 12KIP (54kN) IMV Corporation Model I260 / SA7M-I60 Vibration System Shaker with SA7M Power Amplifier and Slip Table.

***Fully Serviced by IMV North America***

SPECIFICATIONS:

Force Rating:

Random: 12,000 lbs. (54 kN) RMS

Sine: 12,000 lbs. (54kN)

Shock: 24,000 lbs (108 kN)

Stroke: 2" peak to peak (50 mm)

Frequency Range (Hz): DC to 2,600Hz Max

Max Acceleration: Sine - 102 g Random - 71.4 g Shock - 204 g

Maximum Velocity: 86.6 in/sec (2.2 m/s)

Armature Diameter: 17.5” (446 mm)

Armature Weight: 119 lbs. (54 kgs)

Maximum Payload: 2204 lbs (1000 kg)

Total Weight (lbs.): 12,500 lbs.

Voltage Requirements: 208V, 60Hz, 3PH, 83KVA

Shaker Dimensions: 84"W x 55"D x 46"H

Amplifier Dimensions: 32"W x 48"D x 78"H

Blower Dimensions: 36"W x 36"D x 44"H

EQUIPPED WITH:

• IMV Model I260Shaker
• 1200 mm x 1200 mm Slip Table System
• IMV Model SA7M-I60 Power Amplifier
• IMV Cooling Blower
• System Cables

FOB Warren, MI

Cleaned, Serviced and Cycled by IMV North America

30 Day Satisfaction Guaranteed Return Privilege

90 Day Parts and Labor Warranty
