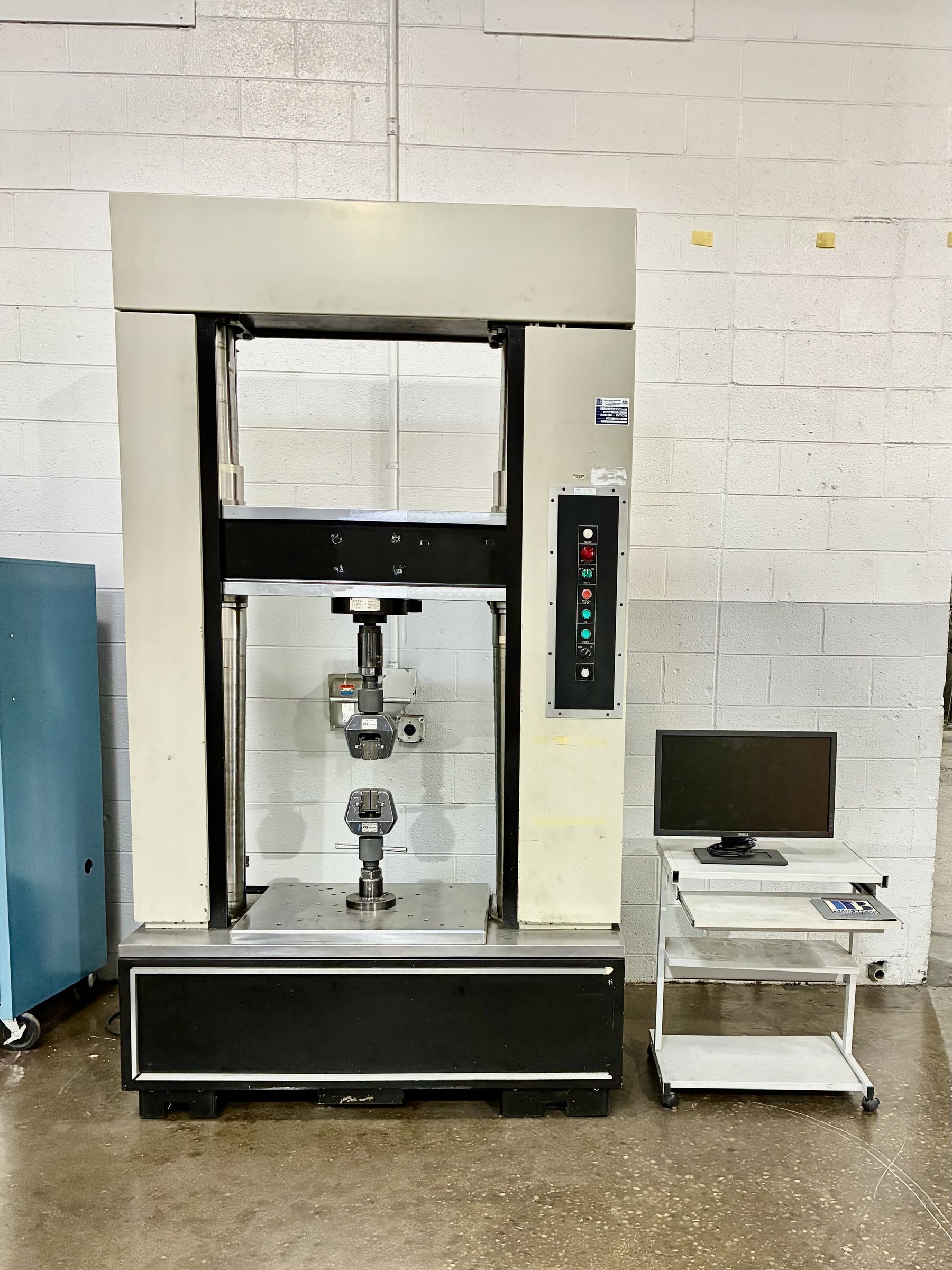

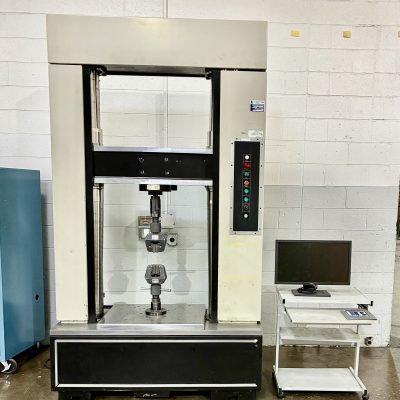

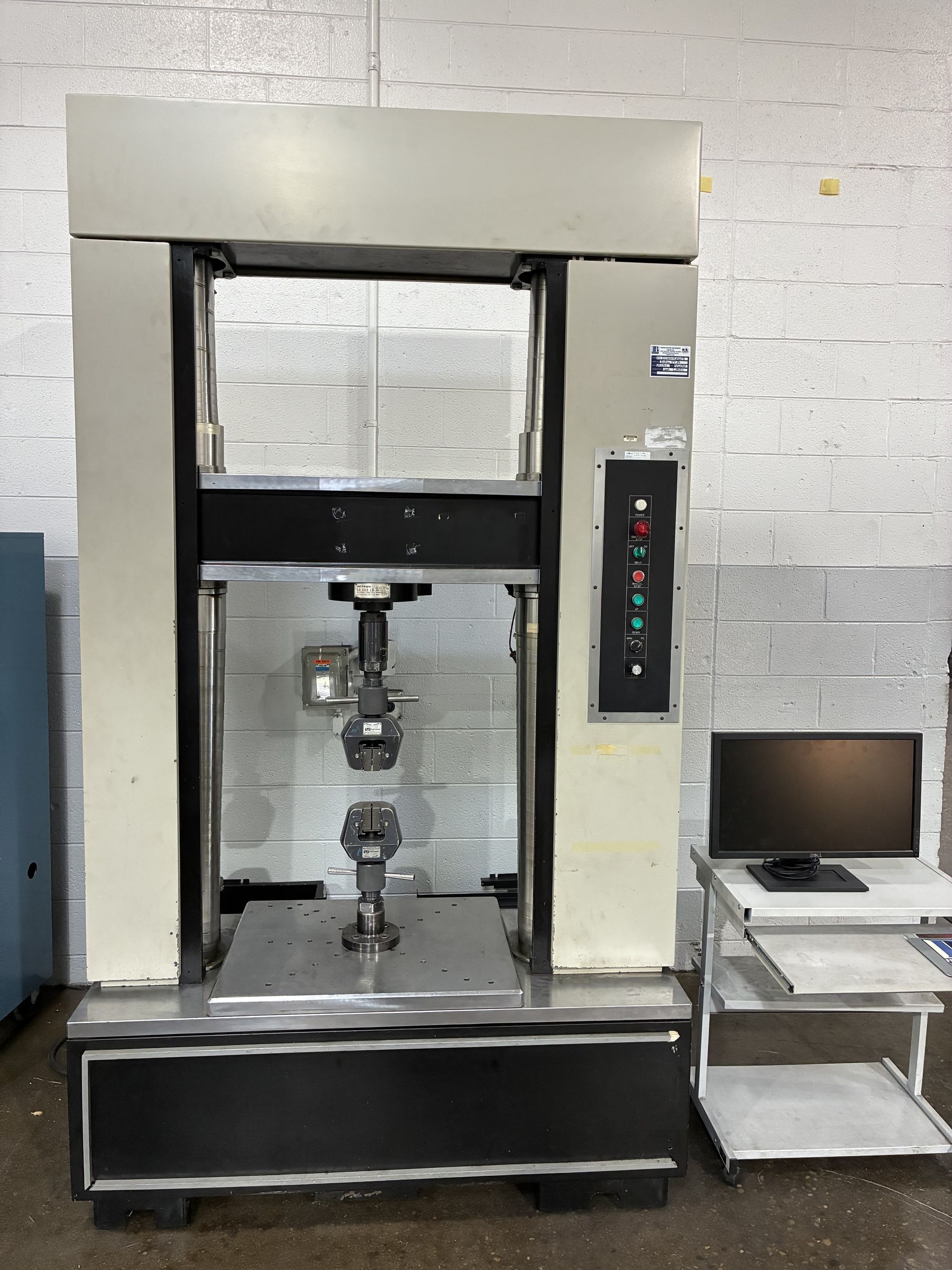

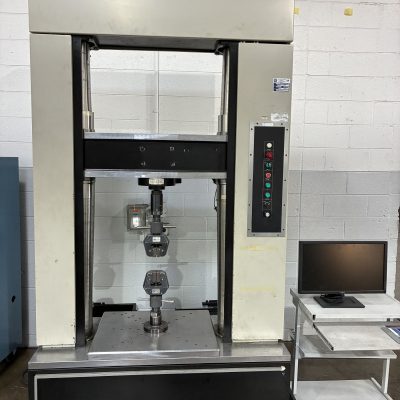

55K (250kN) Instron 1127 Tensile Tester
Instron Model 1127
DEMO UNIT READY TO SHIP
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 55”
Compression Testing Opening (Less Tooling): 55"
Distance Between Columns/Screws: 28"
Testing Stroke: 60"
Table Size (W x D): 28" x 12"
Testing Speed (IPM): .0002 - 10
Crosshead Adjusting Speed (IPM): 10
Approximate Overall Dimensions:
Load Frame (W x D x H): 57" x 26" x 105"
Approximate Weight (lbs.): 4,100
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
-
New Computer with Keyboard and Mouse
-
24" Flat Screen Monitor
-
Microsoft Windows 11 Pro 64 Bit, Workstation.
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
-
250kN Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
*Actual Images
Click for quote | #00484
