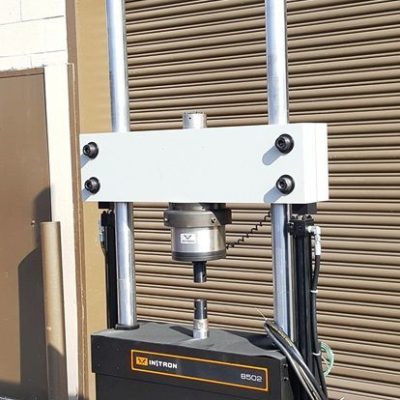

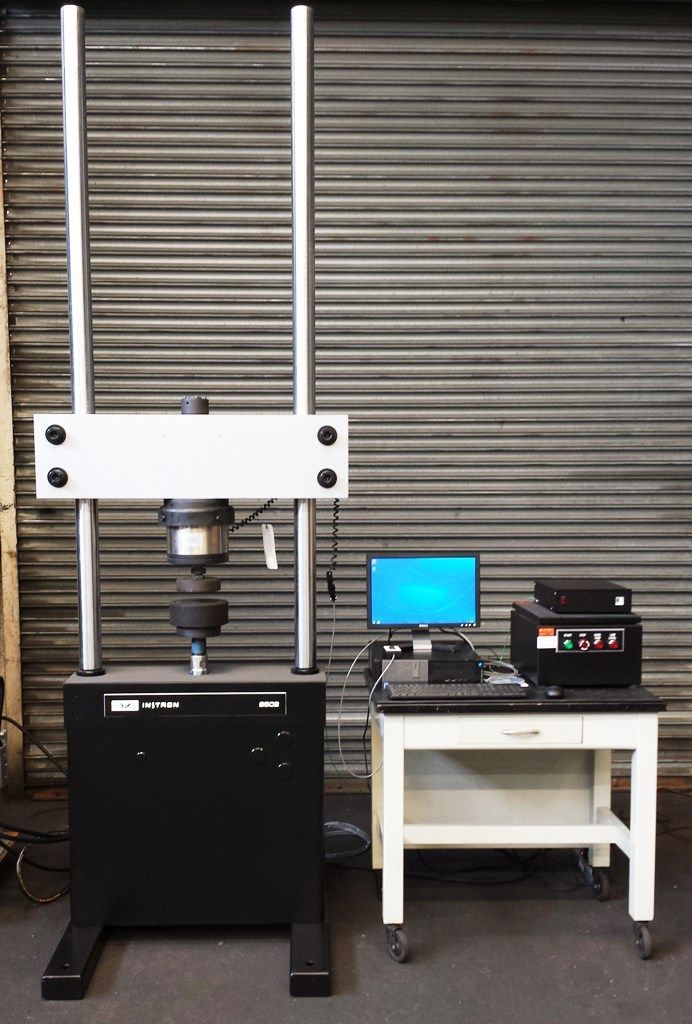

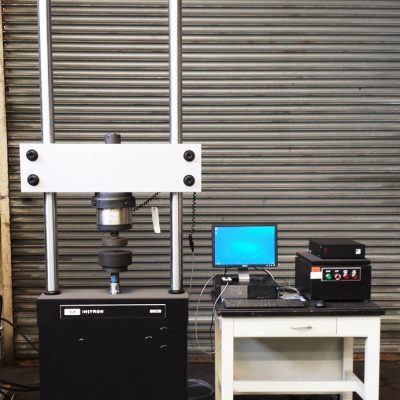

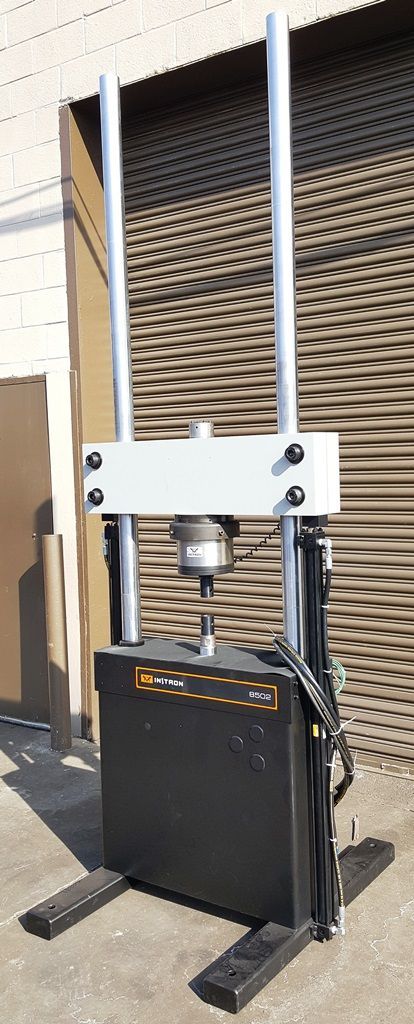

55KIP (250kN) Instron 8502 Dynamic Fatigue Testing System
Instron Model 8502
LOAD FRAME SPECIFICATIONS:
Model Number / Serial Number: 8502 / H1748
Dynamic Force Capacity (KIP): 55 (250 kN)
Number Of Columns: 2
Distance Between Columns: 26"
Test Specimen Max. Length: 48"(Less Tooling)
Table Size (W x D): 26" x 12"
Approximate Overall Dimensions (W x D x H): 42" x 44" x 116"
Approximate Weight (lbs): 2420
EQUIPPED WITH:
-
Instron 55 KIP (250 kN) Dynamic 70 KIP (311 kN) Static Actuator, Model A726-109A with 4" (100mm) Stroke & LVDT SN: 931
-
10 GPM MOOG Servo Valve
-
Instron 55 KIP (250 kN) Dynamic 110 KIP (500 kN) Static, Fatigue Rated Load Cell, Cat # 2518-113
-
Hydraulic Crosshead Lifts and Hydraulic Lock with Controls
-
Instron 11 GPM Hydraulic Power Supply
-
Reconditioned with New Electrical, Cabling, and Hydraulics
-
New FB-3500 Fatigue Controller and Software.
-
(2) AC, (2) DC, (1) Valve Driver, Digital In/Out, HPU, and HSM Controls
-
Computer System with Monitor, Keyboard and Mouse
-
System Cabling
-
Hydraulic Manifold with On/Off HSM Solenoid
-
Hydraulic Hoses for Frame Operation
FOB Warren, MI
Cleaned, Serviced and Cycled
30 Day Satisfaction Guaranteed Return Privilege
