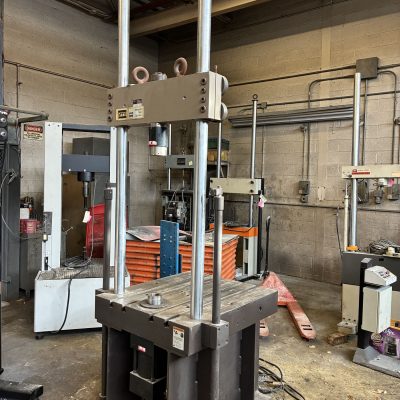

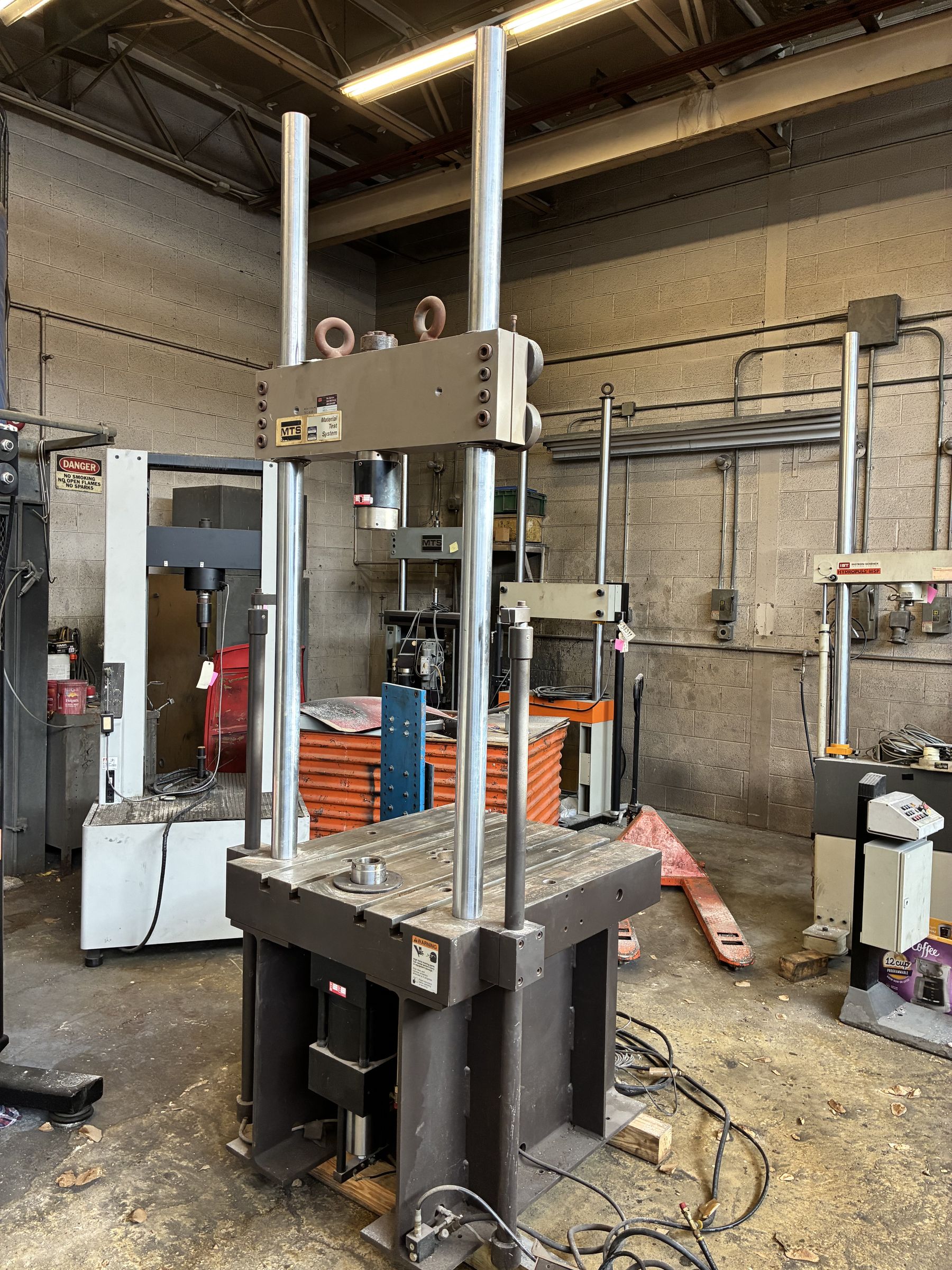

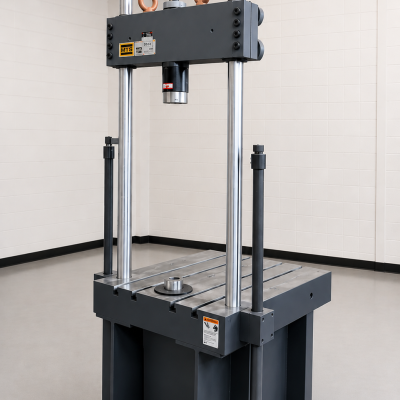

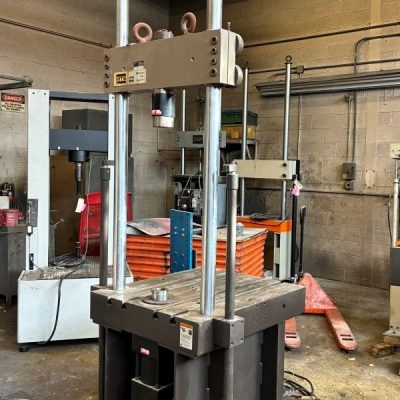

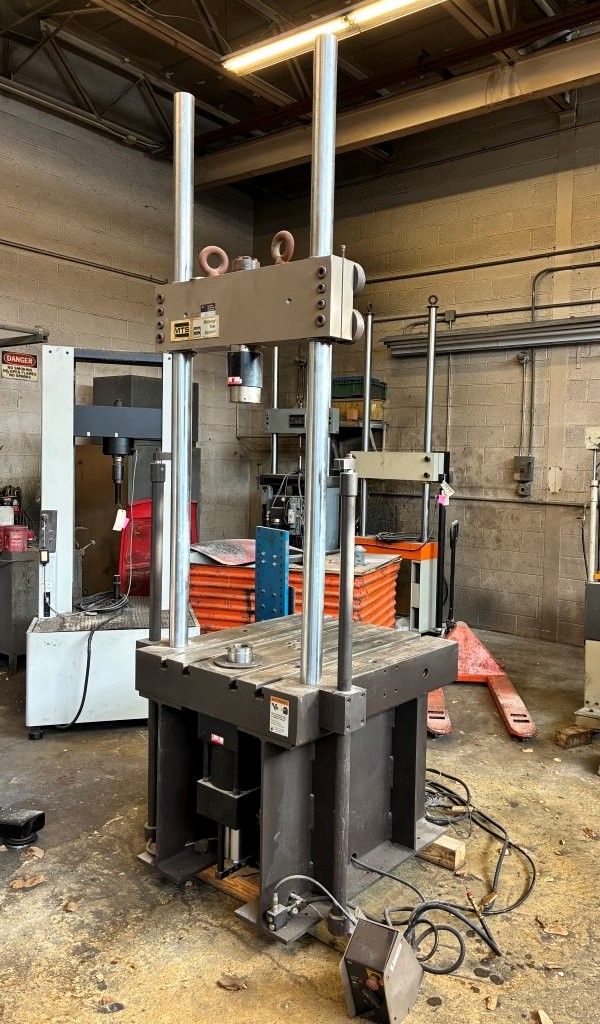

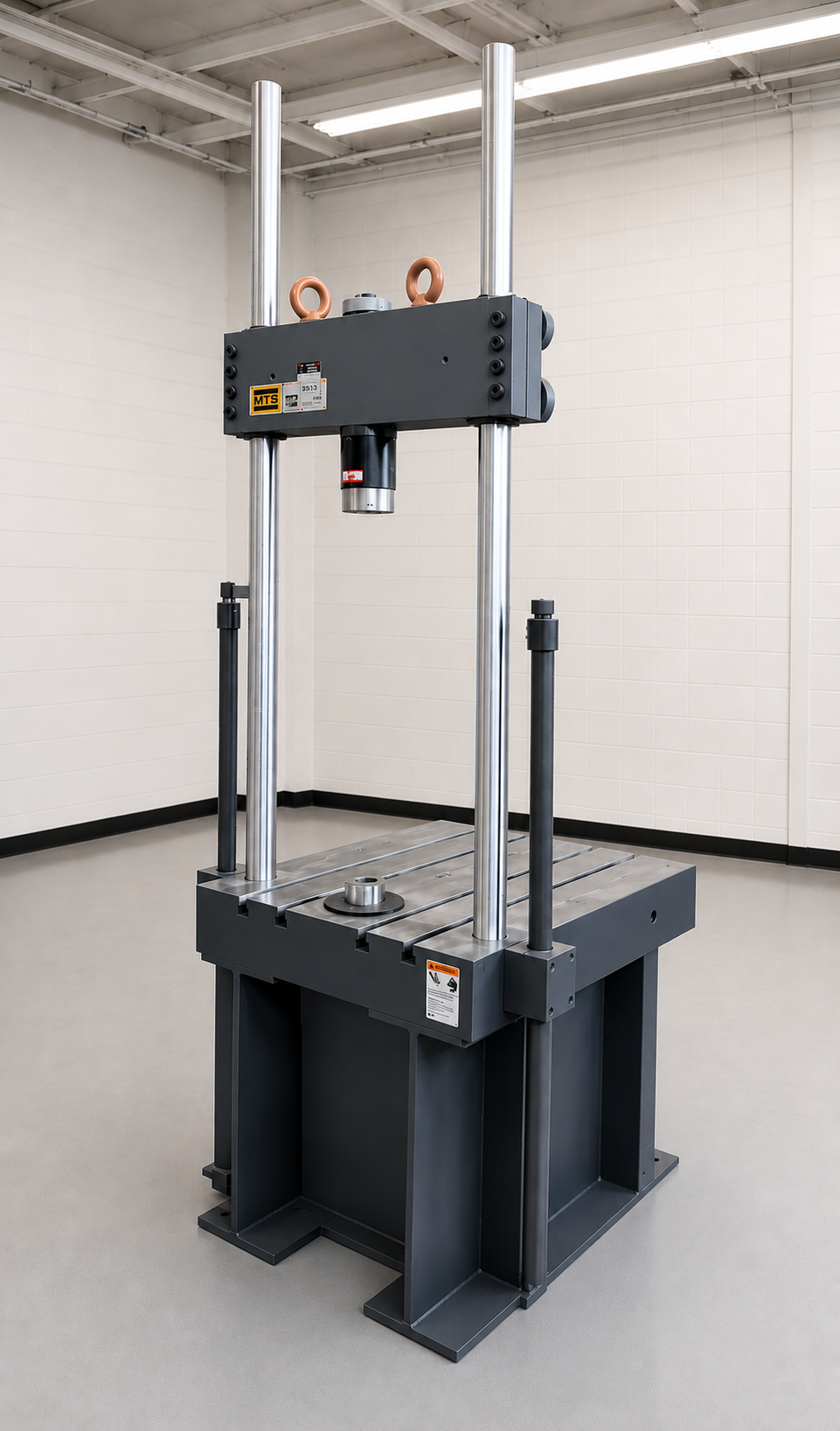

MTS Model 322.21

LOAD FRAME SPECIFICATIONS:

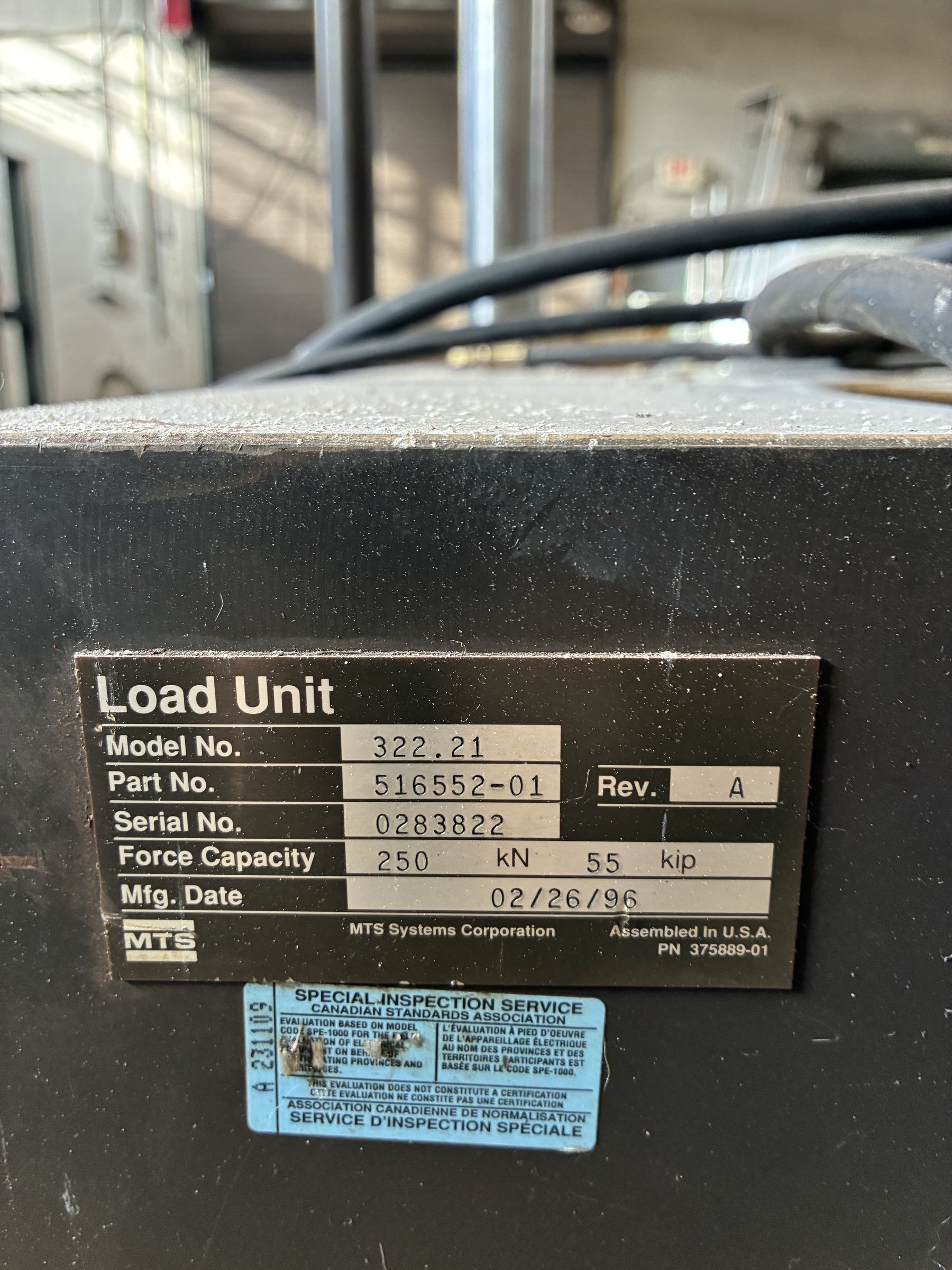

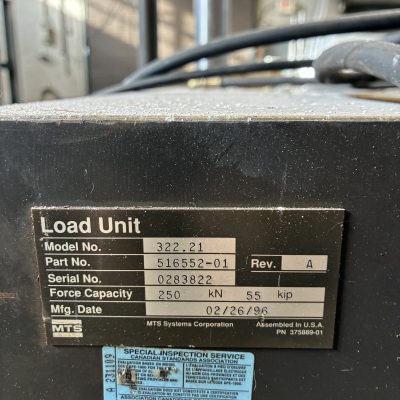

Model Number / Serial Number: 322.21/0283822

Load Frame Capacity (KIP): 55 (250 kN)

Number Of Columns: 2

Maximum Specimen Length: 65" (Less Load Cell & Fixturing)

Distance Between Columns: 24"

Approximate Overall Dimensions (W x D x H): 43" x 40" x 118"

Approximate Weight (Lbs): 6,500

EQUIPPED WITH:

• Hydraulic Crosshead Lifts, Locks & Controls

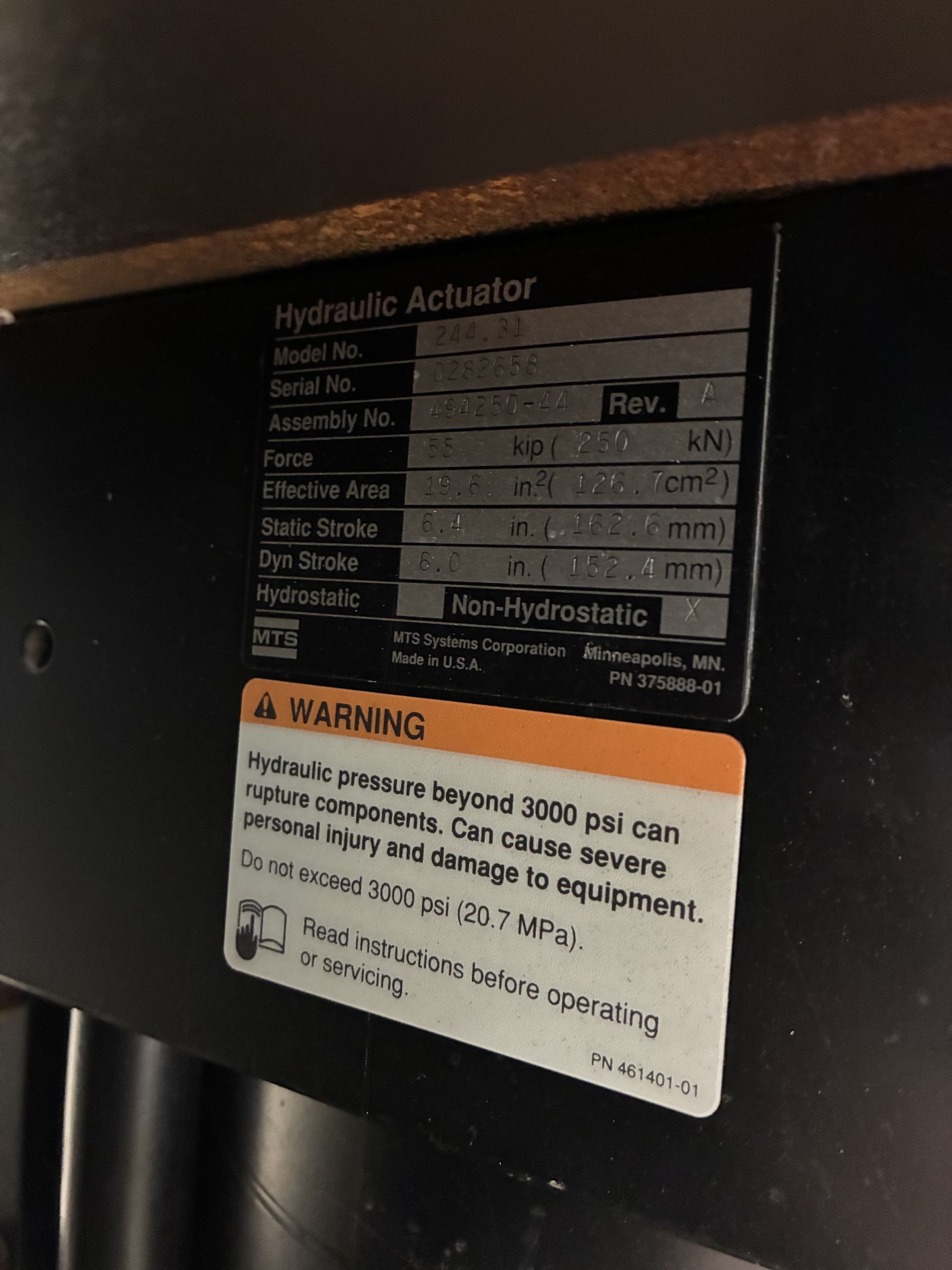

• MTS 55 KIP Model 244.31, 3,000 PSI Actuator with 6" Stroke & LVDT

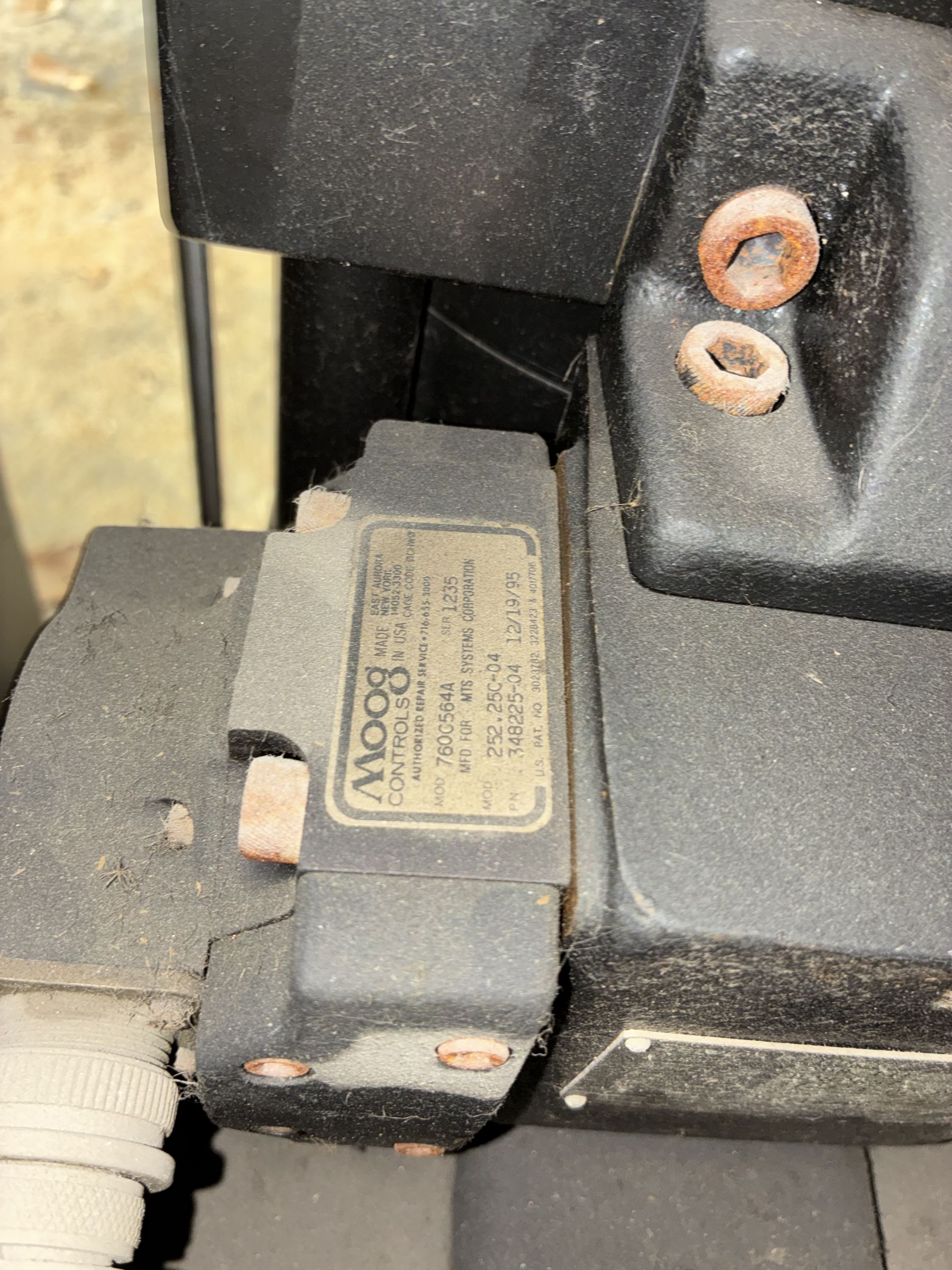

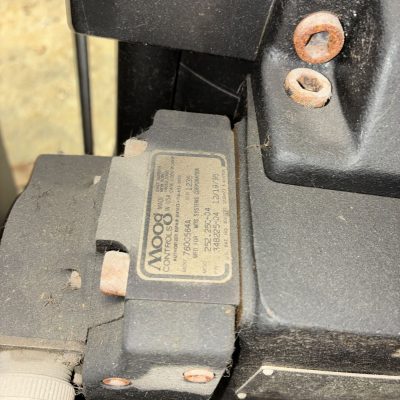

• 15 GPM MTS/MOOG Servo Valve
• MTS 298.11D Hydraulic Service Manifold with MTS Piston Accumulators

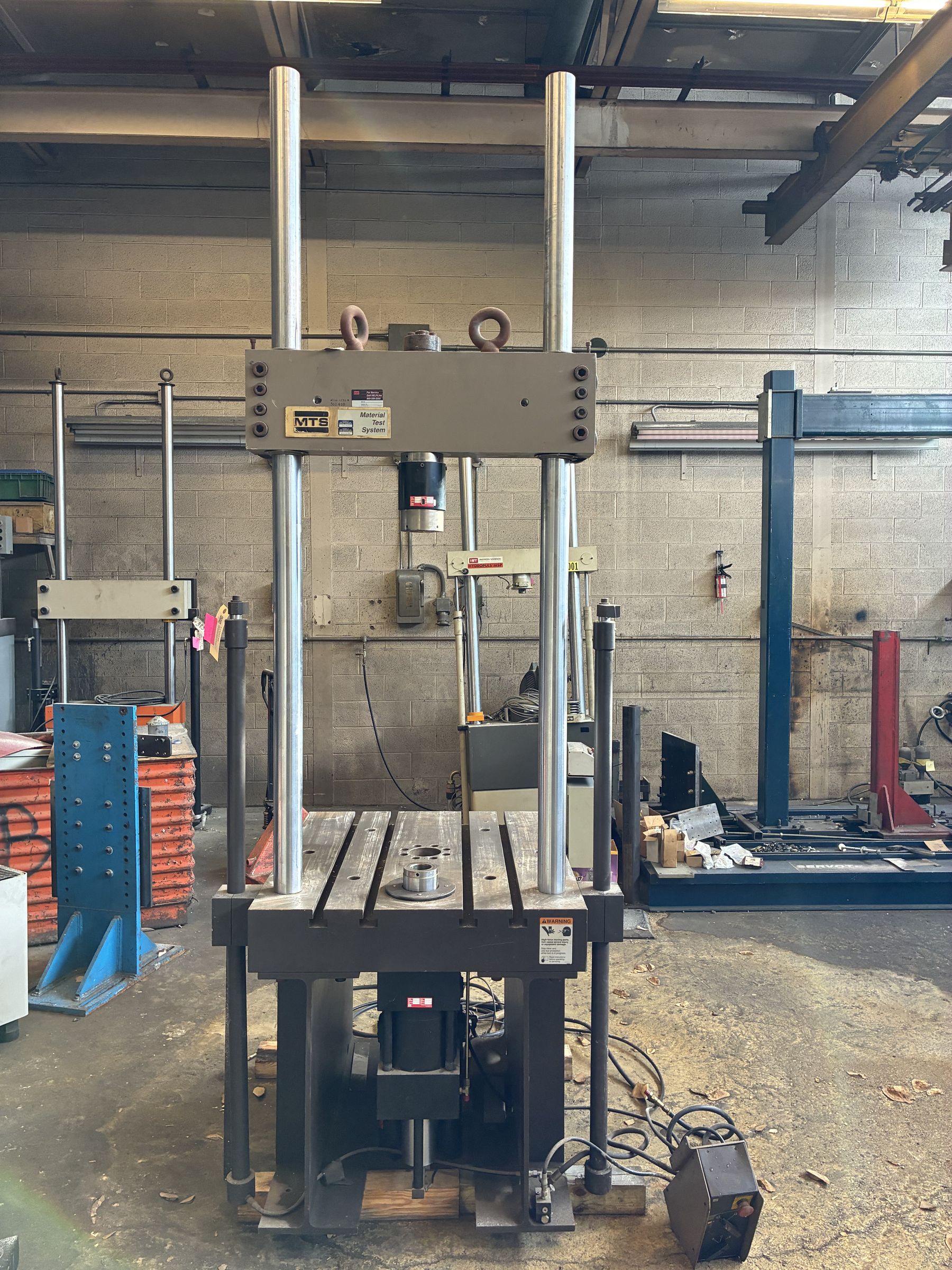

• 25" x 40" T-Slotted Base Table
