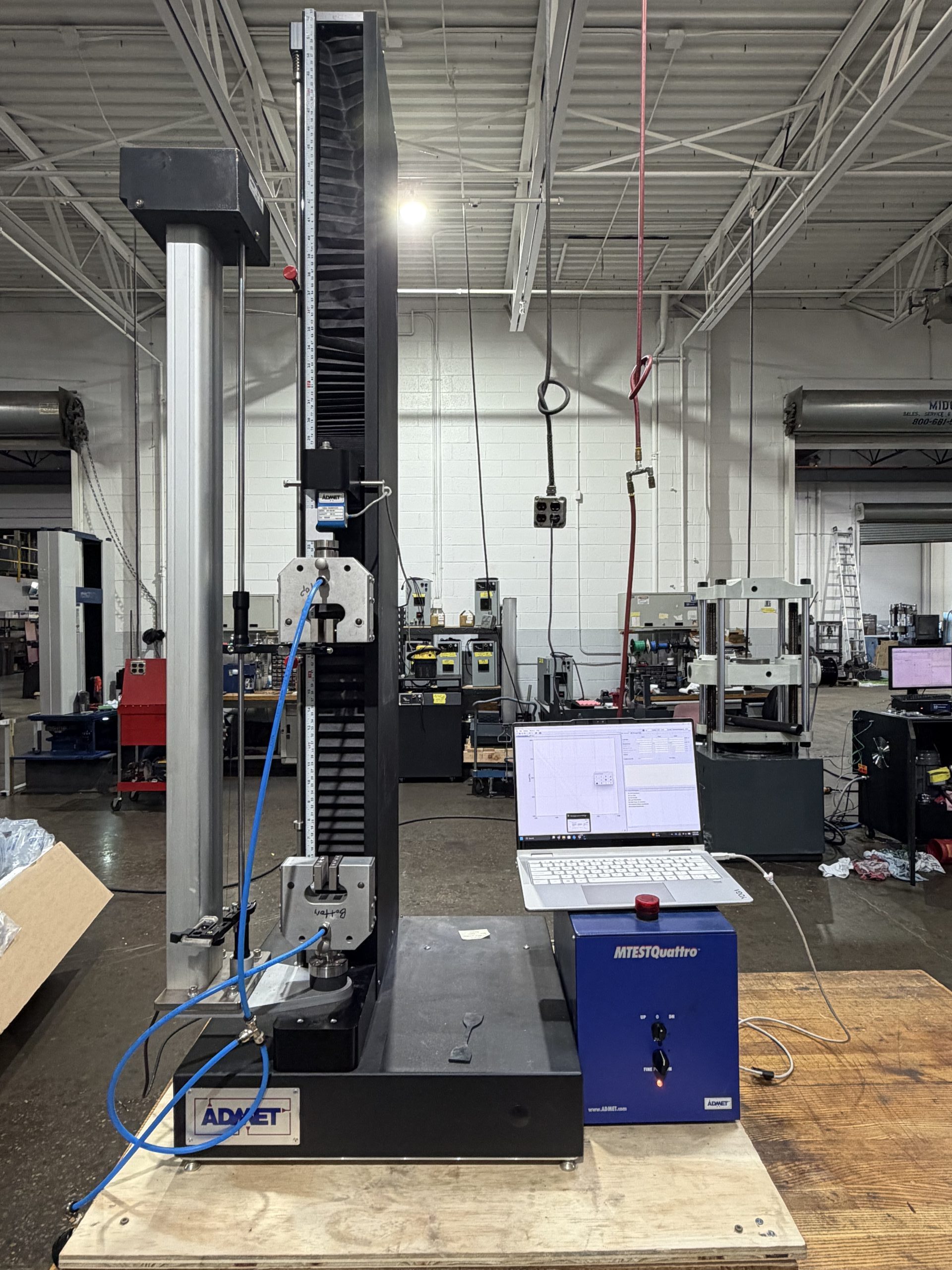

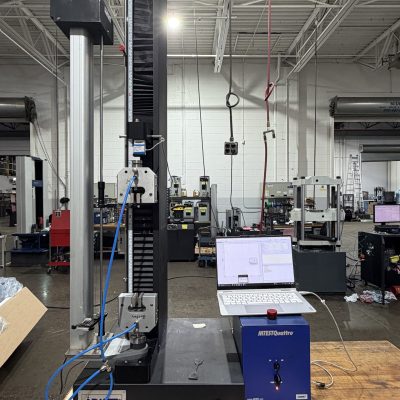

5kN Admet eXpert 7603

Admet 7603
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 41"
Compression Testing Opening (Less Tooling): 41"
Testing Stroke: 41"
Testing Speed (IPM): .012 - 40
Crosshead Adjusting Speed (IPM): 40
Approximate Overall Dimensions:
Load Frame(W x D x H): 19" x 21" x 58"
Approximate Load Frame and Console Weight (lbs): 250
Electrical Requirements (V,Hz,PH): 100-240 50/60, 1

EQUIPPED WITH:
Computer System with Keyboard & Mouse.
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
5kN cell and 100lb cell
Long travel extensometer

FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
