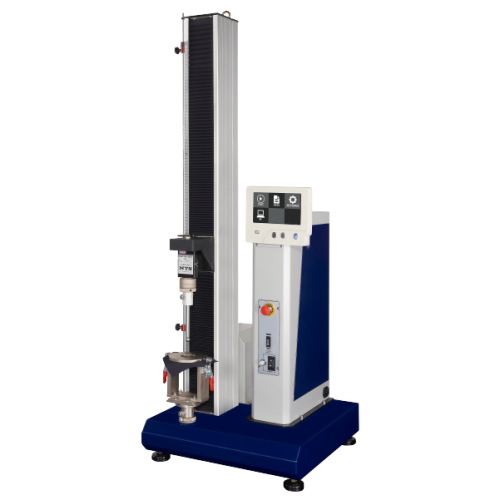

5kN Frank Bacon Model FB-5EMS

Model FB-EMS
SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Testing Stroke: 38"
Testing Speed (IPM): .00002 – 40
Crosshead Adjusting Speed (IPM): 40
Load Frame Dimensions: 20" x 20" x 58"
Electrical Requirements (V/PH): 230 1

EQUIPPED WITH:

LCD Touch Screen Operation for Simple to Use Testing
Electronic Material Testing Control System with Built in Space Saving Design
Precision Servo Motor and Drive System for Precision Control of Testing Rates
5kN Tension & Compression Load Cell
Upper and Lower Quick Release Adaptors

FOB Warren, MI
NEW, Calibrated and Certified.
1 Year Parts and Labor Warranty
