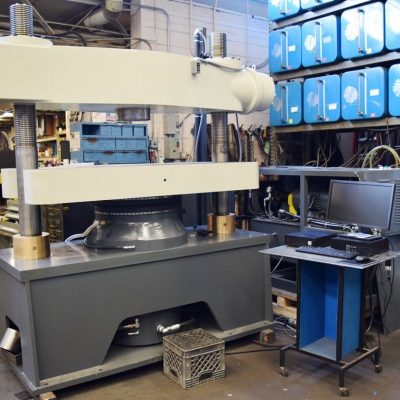

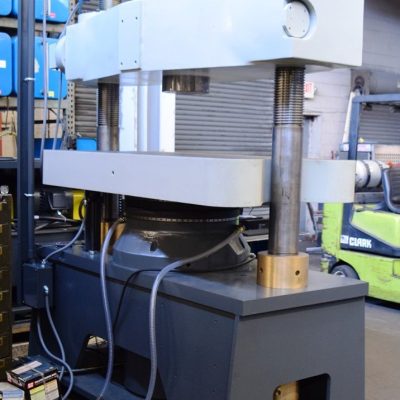

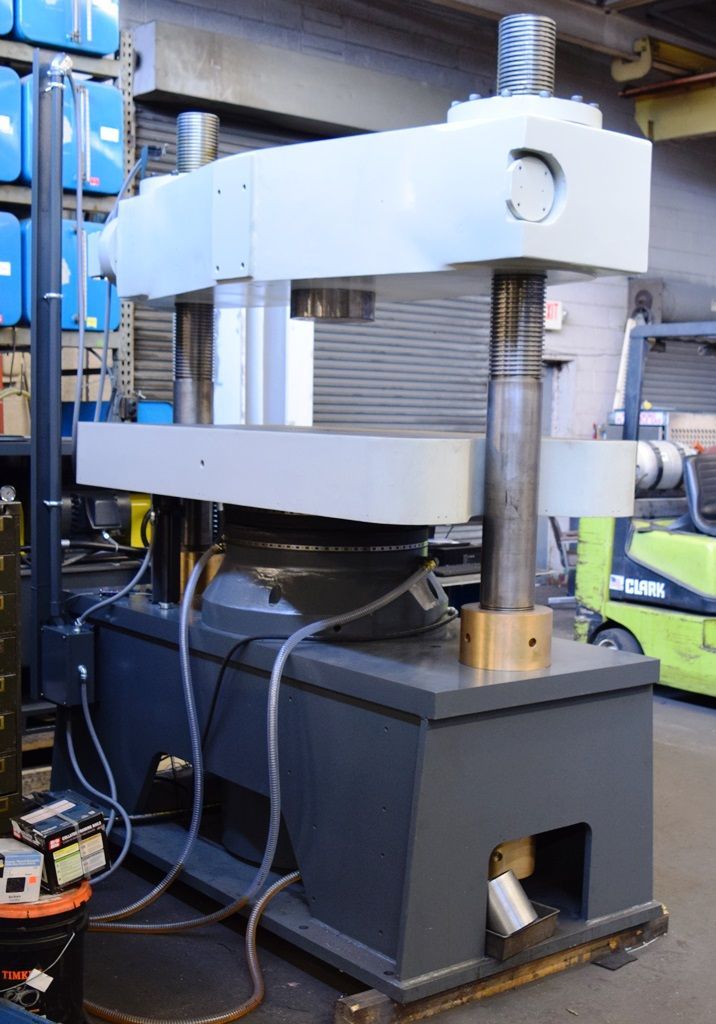

Tinius Olsen Model 600-2-60

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 60" with 12" stroke

Compression Testing Opening (Less Tooling): 54"

Distance Between Columns/Screws: 60"

Testing Stroke: 12"

Table Size (W x D): 60" x 38" x 8 ½" Thick

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions:

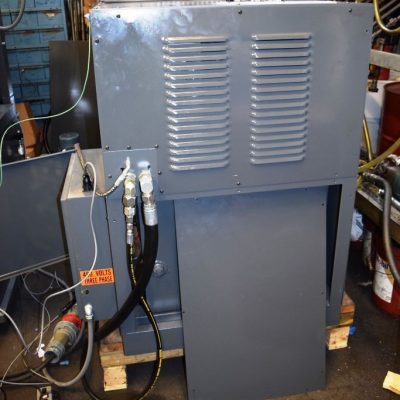

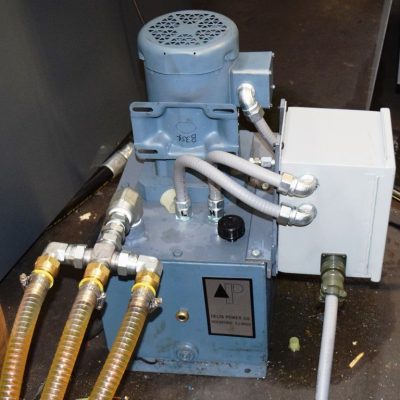

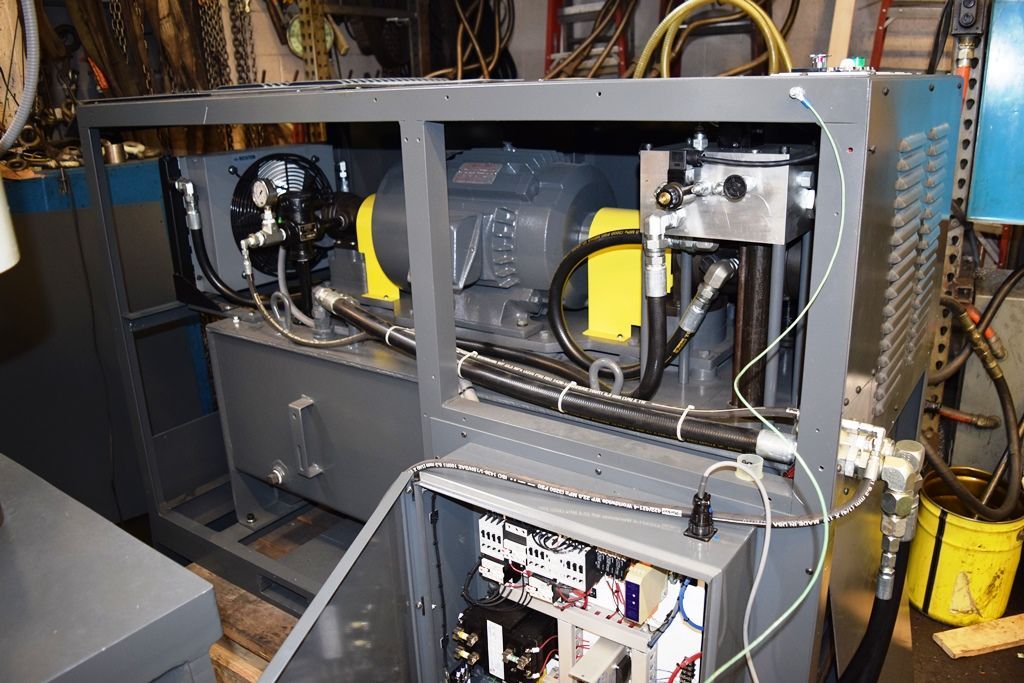

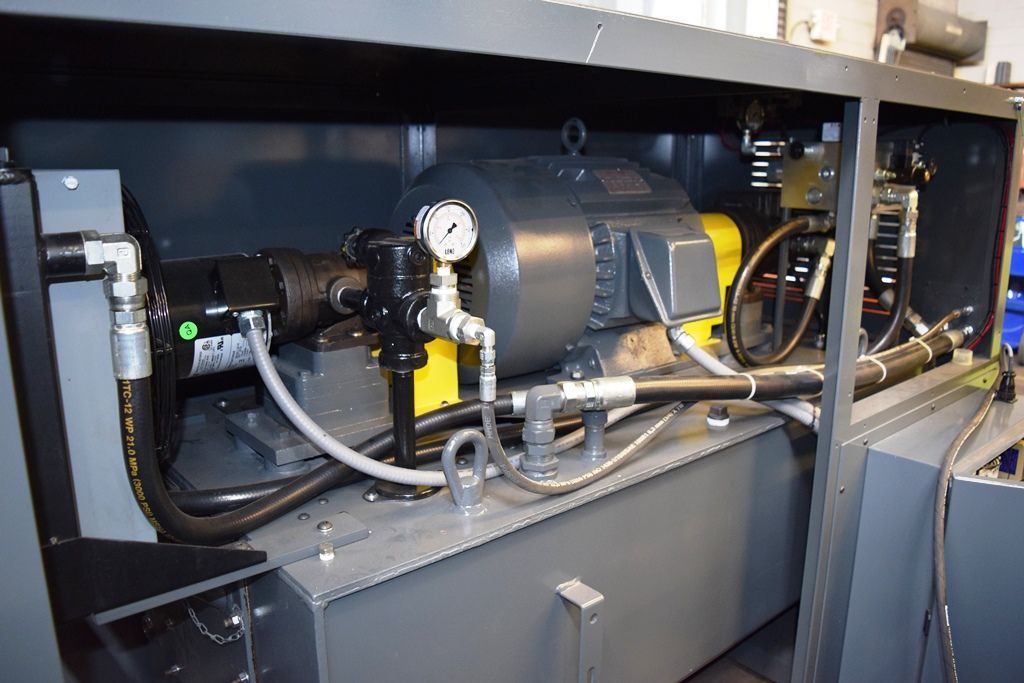

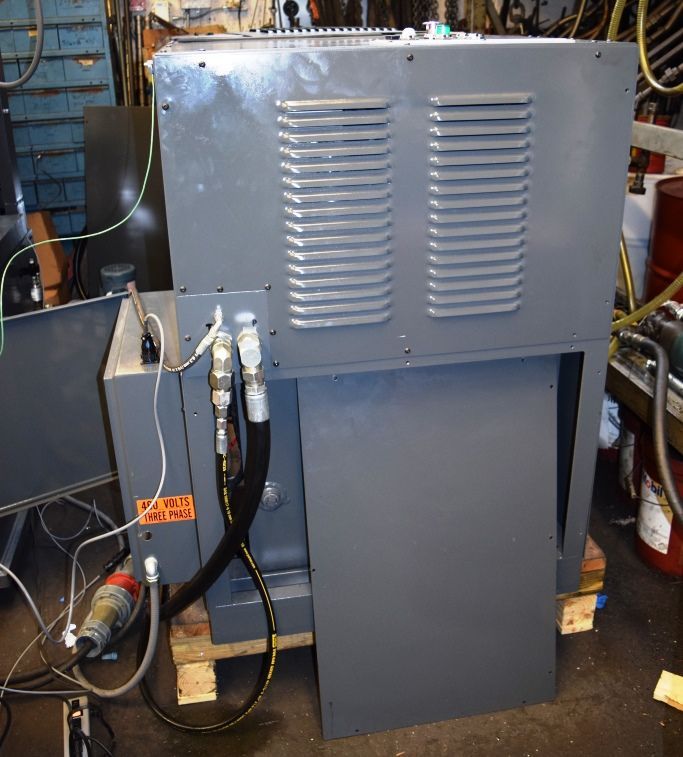

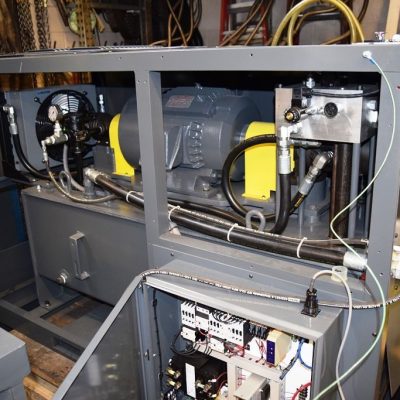

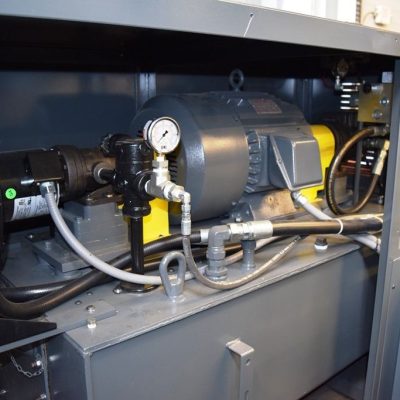

Servo Hydraulic Pumping System (W x D x H): 36" x 68" x 60"

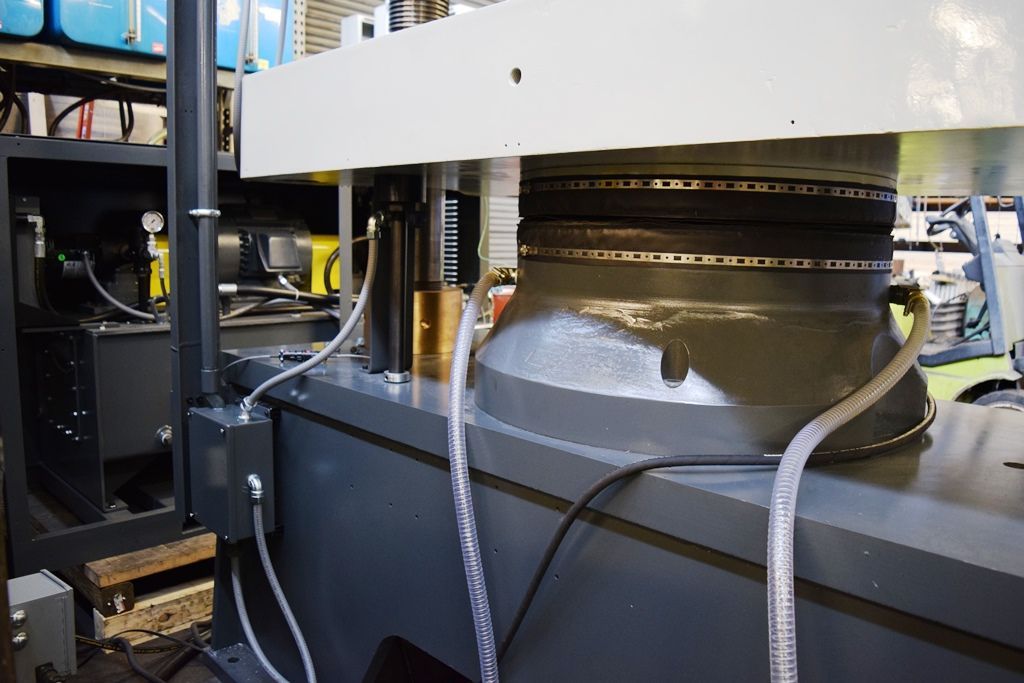

Load Frame (W x D x H Less Tooling): 87 ½" x 44" x 160"

Approximate Weight (lbs.): 47,000

Electrical Requirements (V,Hz,PH): 460, 60, 3

EQUIPPED WITH:

• New Computer Systems
• 24" Flat Screen Color Monitor
• Microsoft Windows 11 Professional Workstation.
• MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.

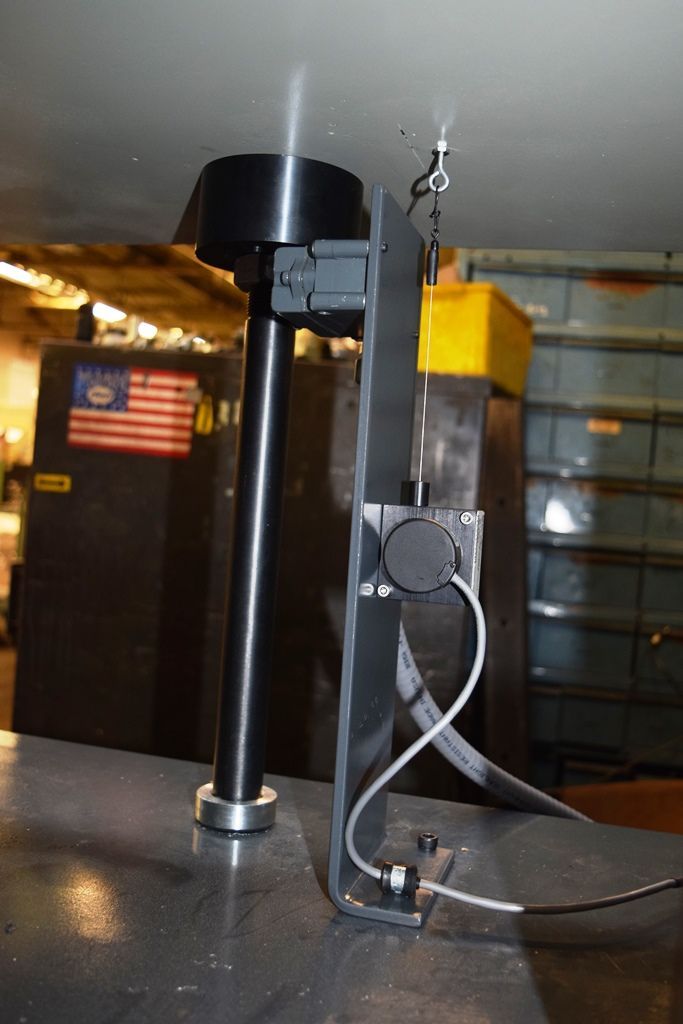

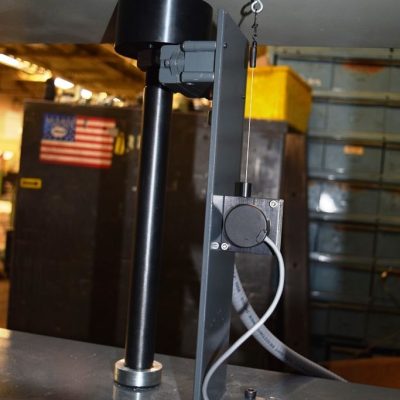

• Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and testing speed values with signal cable and mounting hardware.

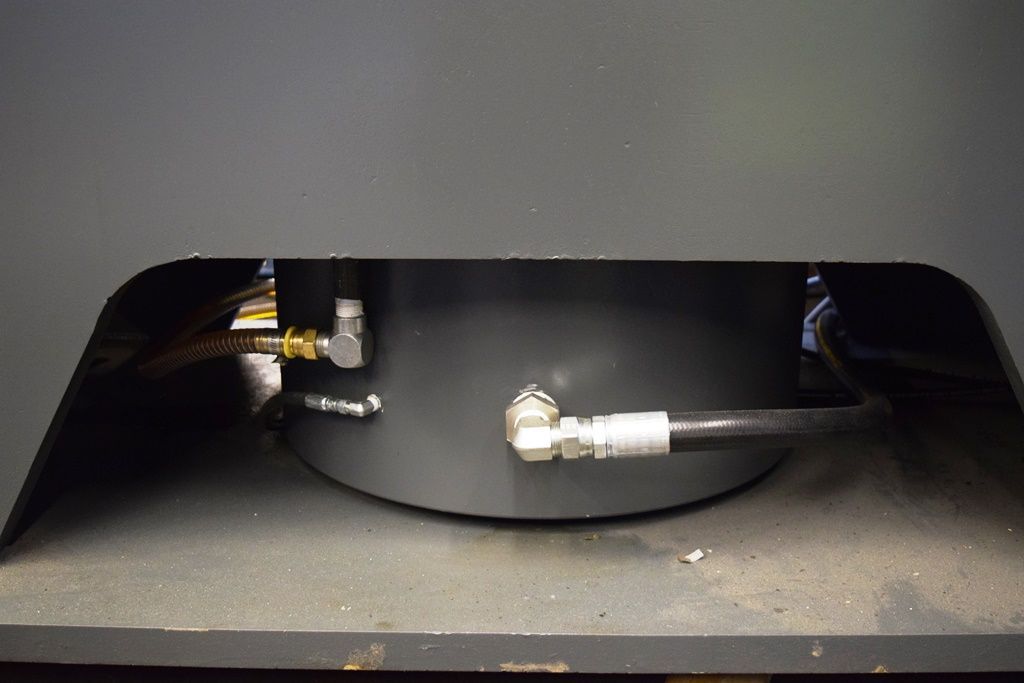

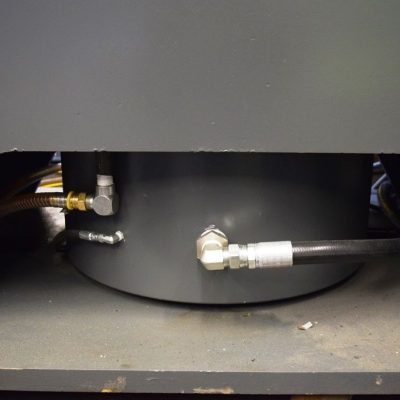

• Precision Pressure Transducer for load values with signal cable and mounting hardware.
• New Set of (4) Chrome Load Columns
• New Motorized Crosshead Screws

Reconditioned, Retrofitted and Certified

1 Year Parts and Labor Warranty

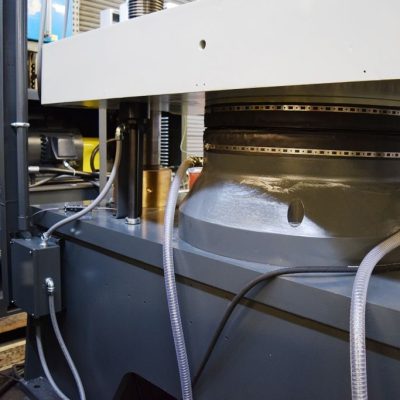

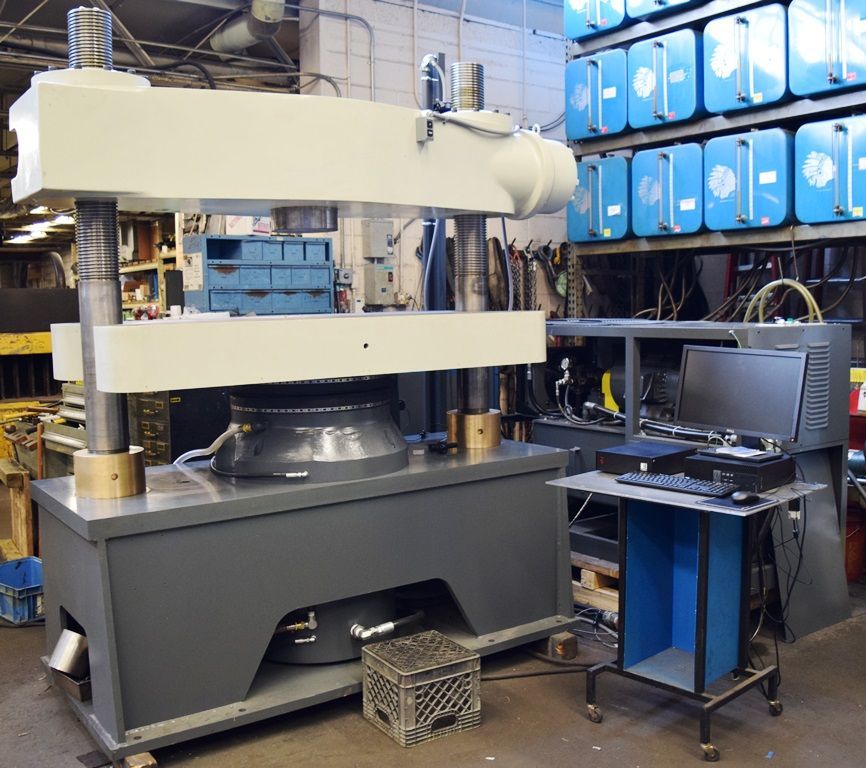

*Actual Images
