Instron Industrial Series DX Model

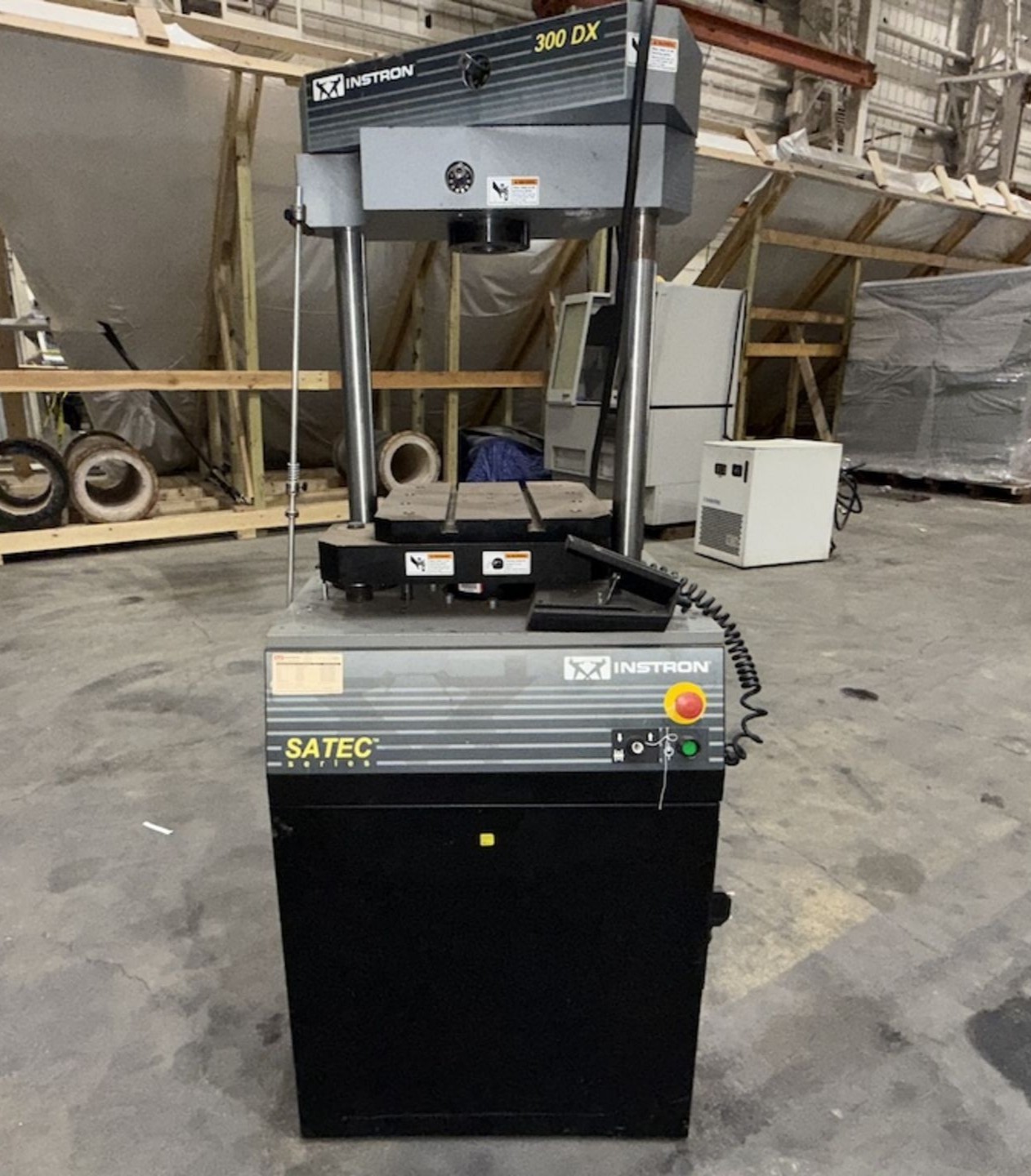

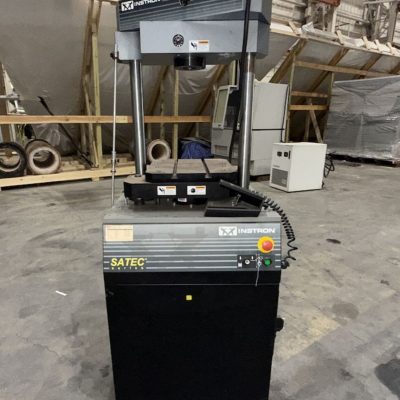

(1) Reconditioned 67,500 lbf (300 kN) Capacity Instron 300DX Model 300DX-B1-C3-G1A Hydraulic Tension and Compression Testing Machine with Load Cell Indicating System

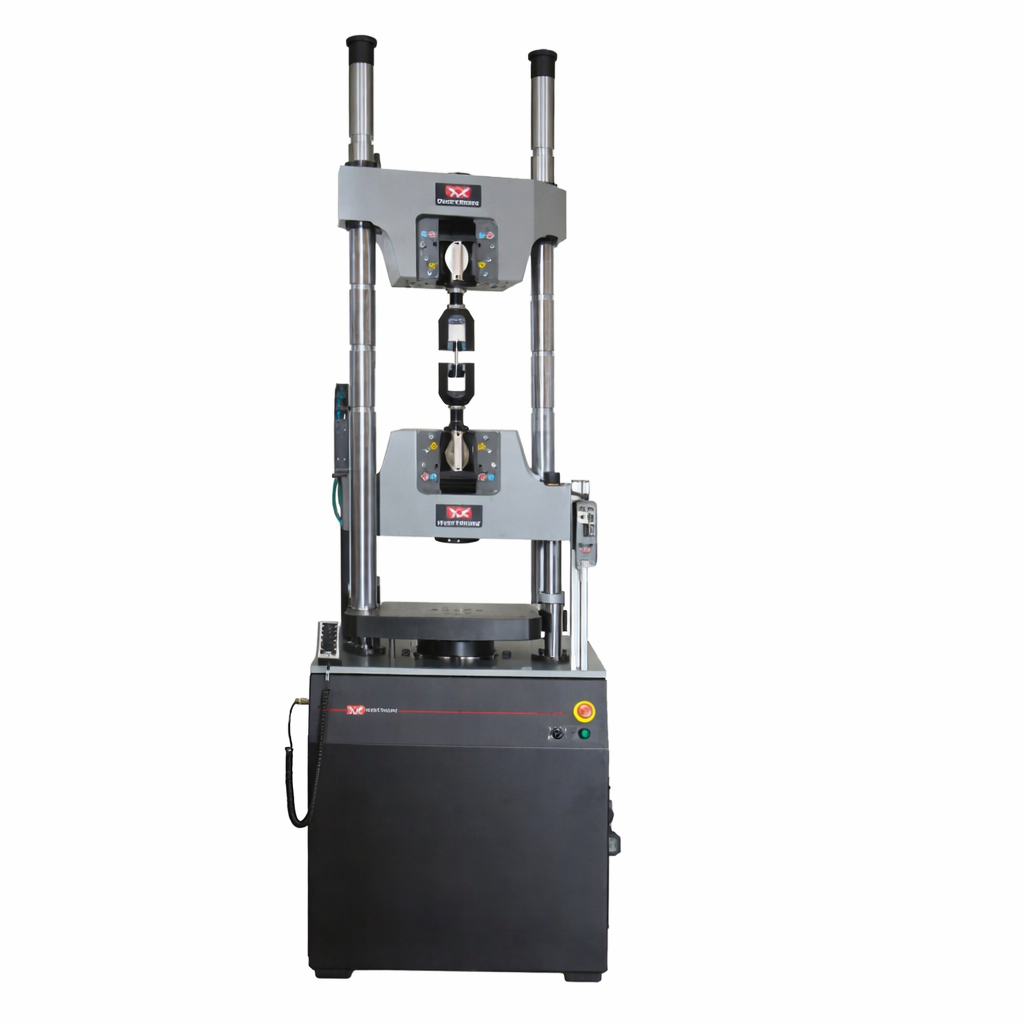

Instron Model 300DX

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 36"

Compression Testing Opening (Less Tooling): 36"

Distance Between Columns/Screws: 15"

Testing Stroke: 6"

Table Size (W x D): 14" x 14"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 15

Approximate Overall Dimensions:

Load Frame (W x D x H): 30" x 30" x 114"

Weight (lbs.): 2,200

Electrical Requirements (V, Hz, PH): 230, 60, 1

Max Specimen Size (in.):

Flat Specimen: 2” x 1” (Width x Thickness)

Round Specimen: 1.25” Dia.

EQUIPPED WITH:

• New Computer System with Keyboard & Mouse
• 24" Flat Screen Computer Monitor
• MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• High Resolution TTL Compatible Incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
• Reconditioned Instron Servo Hydraulic Power Supply with Servo Valve for Closed Loop Computer Controlled Testing

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
