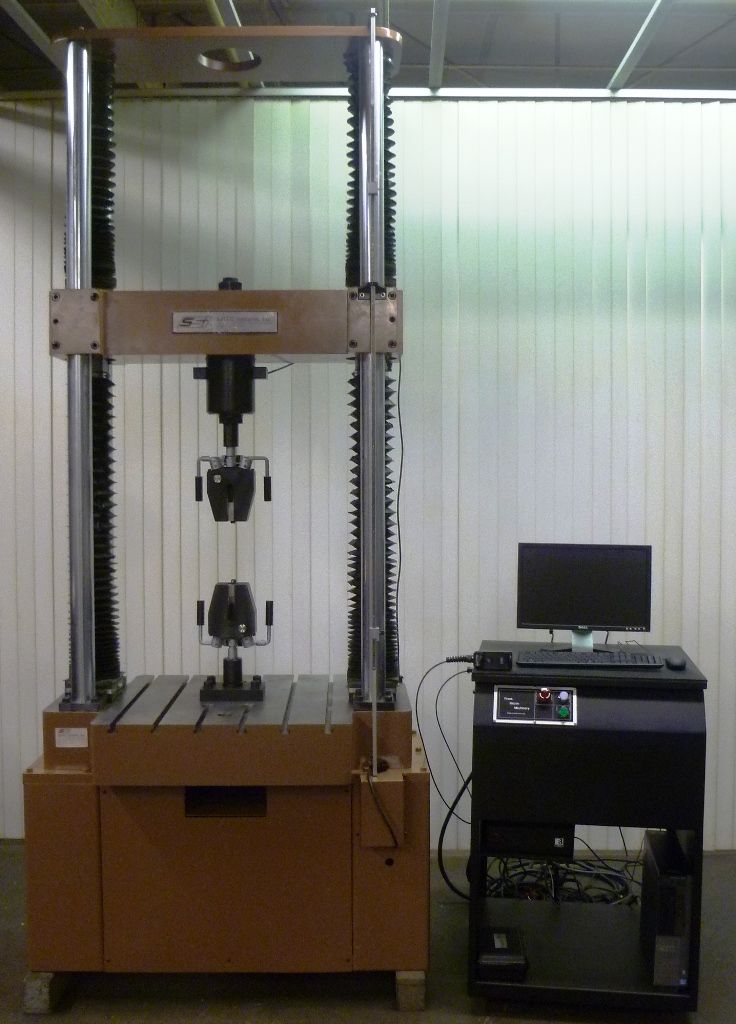

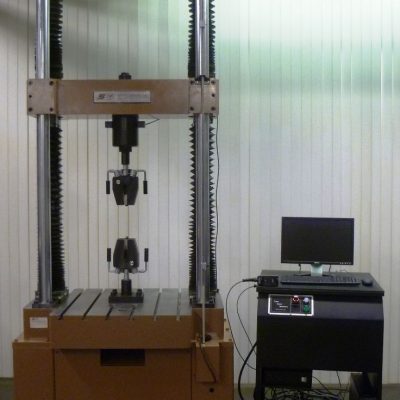

60K (300kN) Satec 60CS Tensile & Compression Testing System with T-Slotted Table



Satec Model 60CS
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 30"
Testing Stroke: 48"
Table Size (W x D): 30" x 30" (T-Slotted)
Testing Speed (IPM): .002 – 3
Crosshead Adjusting Speed (IPM): 5
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 56" x 49" x 95"
Approximate Weight (lbs.): 6,500
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:
  • Computer System
  • Microsoft Windows 11, Workstation.
  • MTGneius, Material Testing Software for Data Acquisition (Load, Position & Two Strain Channels), Analysis and Computer Controlled Testing.
  • MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
  • Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
  • New Yaskawa AC Servo Motor and Drive for Precision Control of Testing Rates (Load, Position & Strain).
  • 60K (300kN) Precision Load Cell Indicating System
  • 30" x 30" T-Slotted Table for Easy Fixturing
FOB Warren, MI
Reconditioned/ Retrofitted & Certified

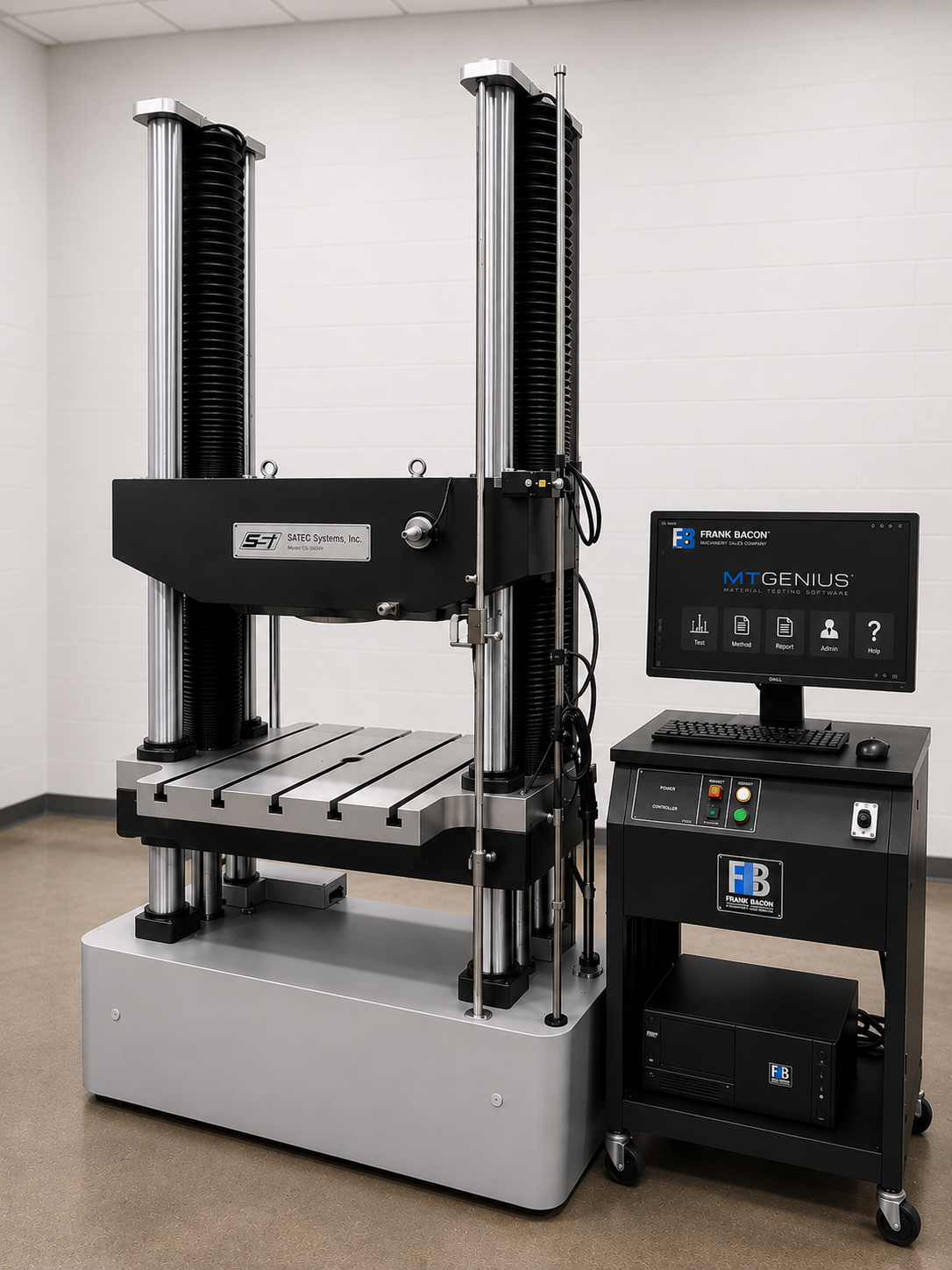

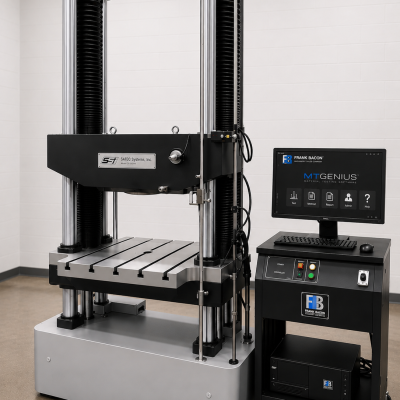

*Representative Image
