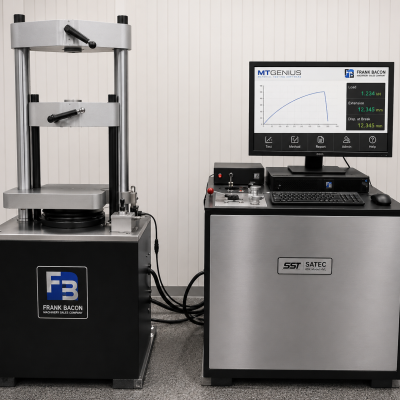

60K (300kN) Satec HVL (MTQ Servo)

Reconditioned 60,000 lbf (300 kN) Capacity Satec, Model HVL, Hydraulic Tension and Compression Testing Machine with Servo Controlled Testing.

Fully computer controlled testing machine with servo hydraulic power supply to handle load, position and strain rate controlled testing.  Just select the test procedure, load your specimens and hit the test button and the automated testing software will take care of the rest!!!

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 30"
Compression Testing Opening (Less Tooling): 21"
Distance Between Columns/Screws: 15"
Testing Stroke: 6"
Table Size (W x D): 15" x 14"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 10
Approximate Overall Dimensions:
Servo Console (W x D x H): 25" x 37" x 39"
Load Frame (W x D x H): 29" x 27" x 87"
Approximate Weight (lbs): 2,600
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:
• Computer With Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux),
Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB
Cable.
• Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and
testing speed values with signal cable and mounting hardware.
• Reconditioned Satec Servo Hydraulic Power Supply for Closed Loop, Computer Controlled
Testing.
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

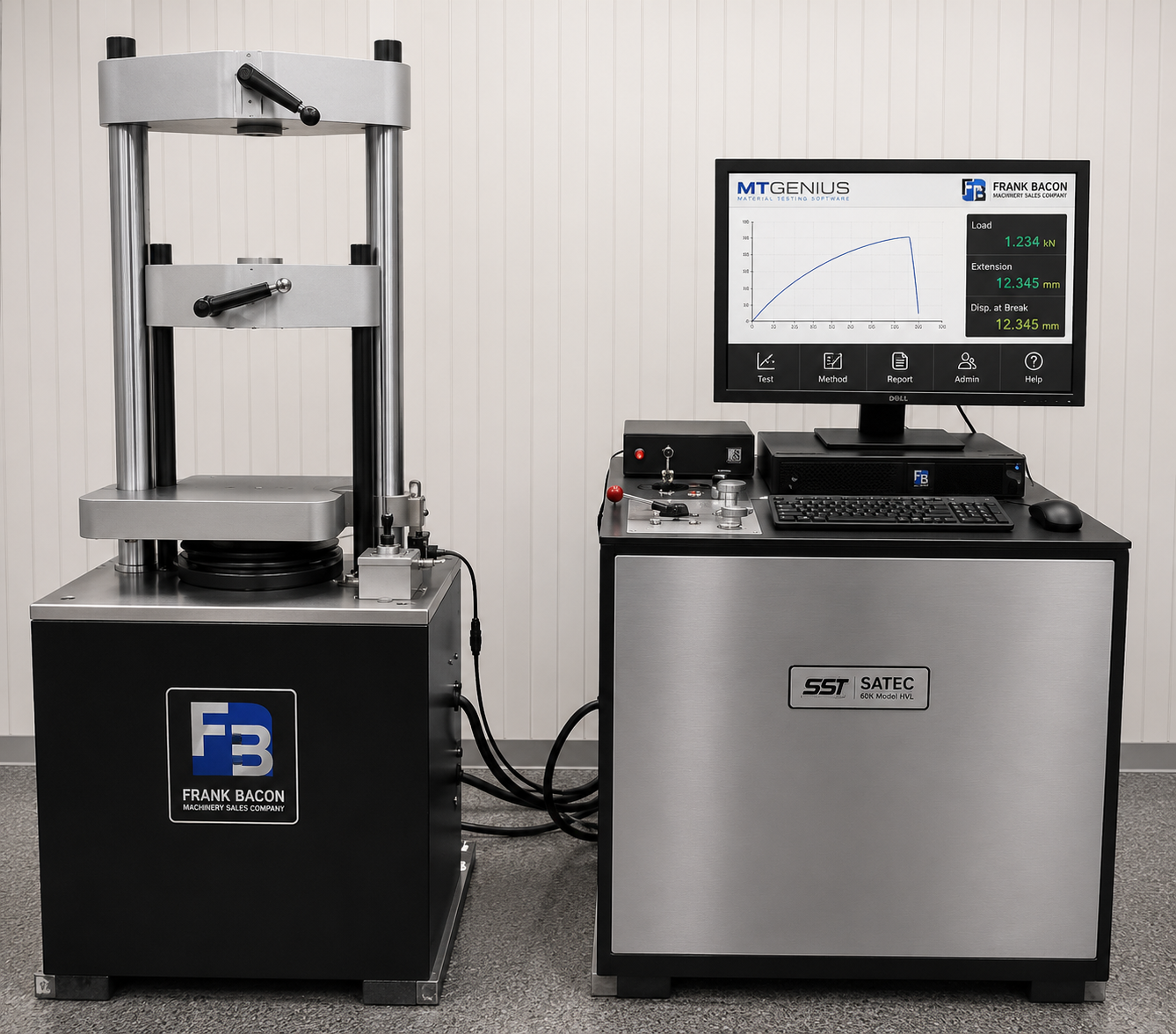

*Representative Image After Reconditioning
