60K (300kN) Tinius Olsen LoCap

Tinius Olsen Model LoCap
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 55"
Compression Testing Opening (Less Tooling): 55"
Distance Between Columns/Screws: 20"
Table Size (W x D): 20" x 25"
Testing Speed (IPM): .02 – 10
Crosshead Adjusting Speed (IPM): 15
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 47" x 28" x 99"
Weight (lbs.): 4,600
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:
  • Computer system with keyboard and mouse.
  • 24" LED-Backlit LCD Color Monitor or Better & Manual
  • Microsoft Windows 11 Professional, Workstation
  • MTGenius, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing with Manual.
  • MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.
  • Electronic Material Testing Control System in custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
  • New AC Servo Motor and AC Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
  • 60K Tension & Compression Load Cell

FOB Warren, MI

Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
30 Day Satisfaction Guaranteed Return Privilege

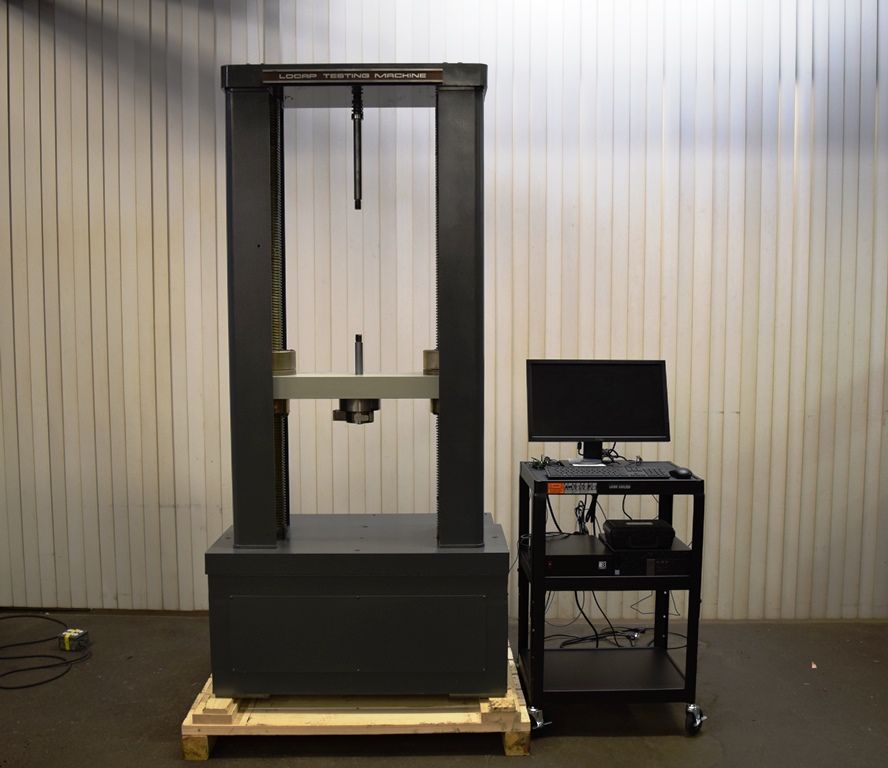

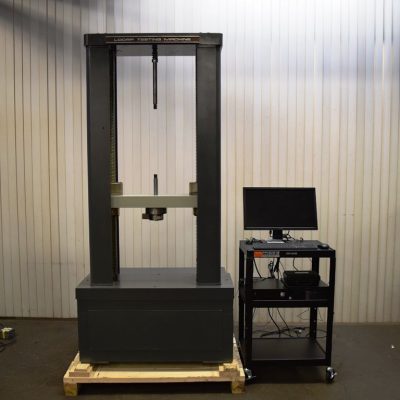

*Representative image

Click for quote | #13230-01
