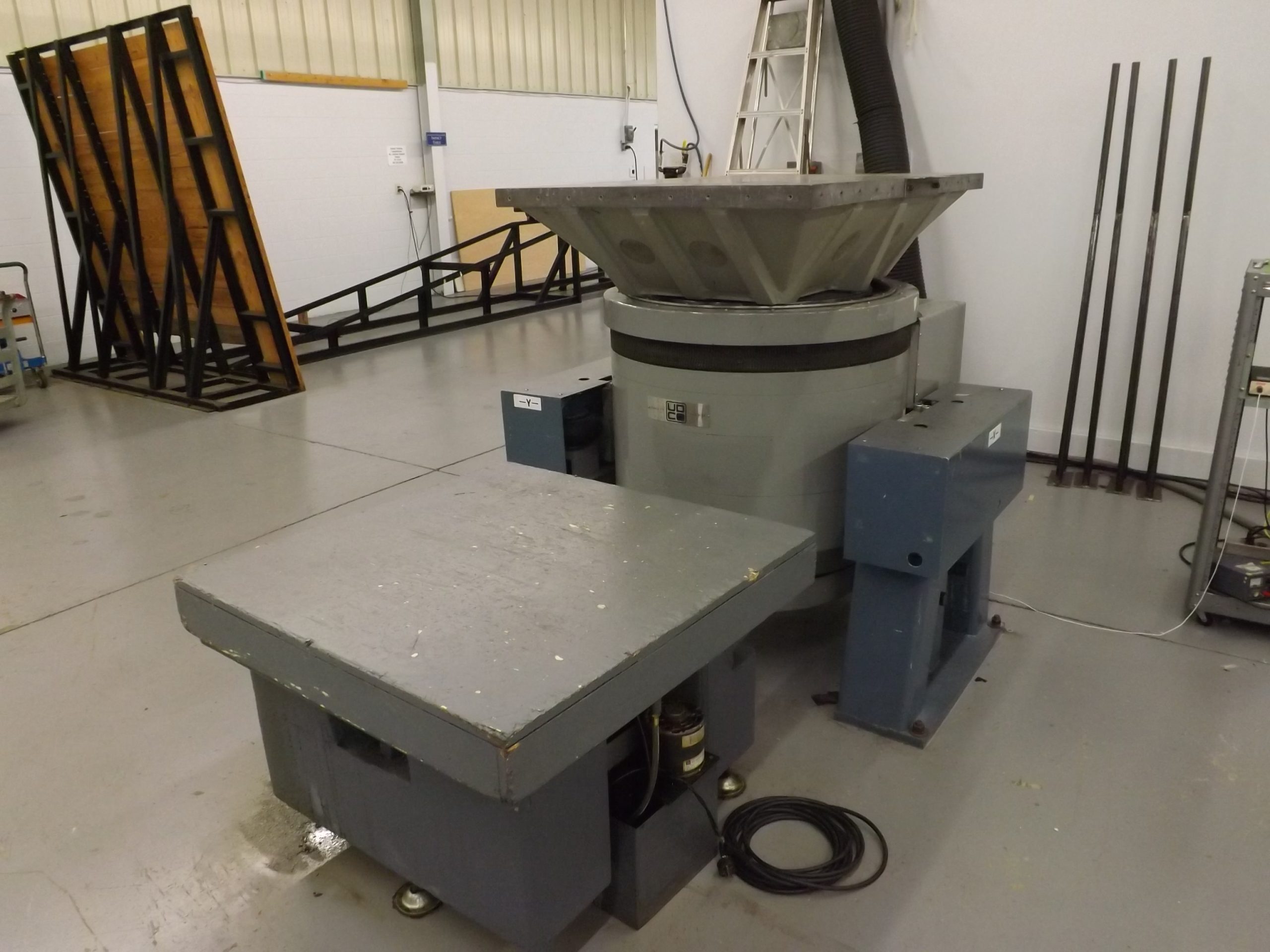

7.5KIP Unholtz Dickie SA15-R24C Vibration System with Slip Table

Used 7.5 KIP Unholtz Dickie Vibration System Model R24C (SA15-R24C) with Slip Table and Unholtz Dickie SA15 Power Amplifier.

Unholtz-Dickie Model SA15-R24C

SPECIFICATIONS:
Force Rating
 Random: 7,500 lbs. RMS Random
 Sine: 7,500 lbs.
 Shock: 15,000 lbs.
Max Free Table Acceleration: 82.8 g
Shaker Table Load Support: 1,500 lbs.
Stroke (Standard): 2" Peak to Peak
Frequency Range (Hz): DC - 2000 Hz Max
Armature Diameter: 25.75”
Armature Weight (Max): 145 lbs.
Total Weight (lbs.): 11,000 lbs.
Overall Dimensions (W x D x H)
 Shaker: 54" x 54" x 53"
 Amp: 24" x 40" x 72"
Voltage Requirements: 480V, 60Hz, 3PH, 50A

EQUIPPED WITH:

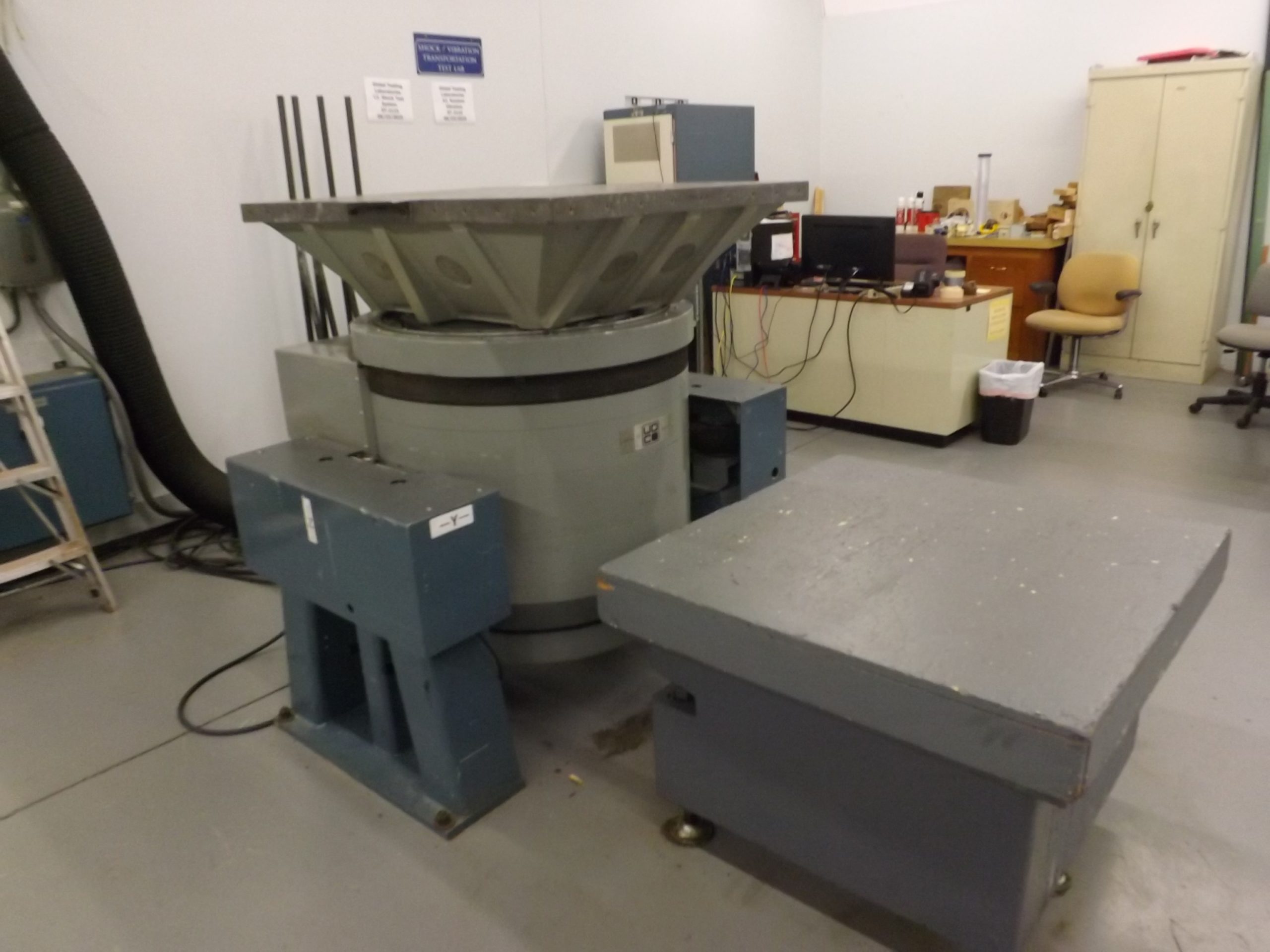

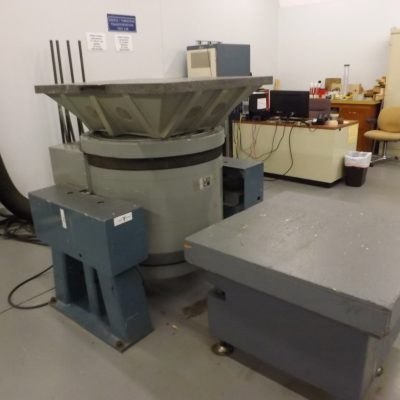

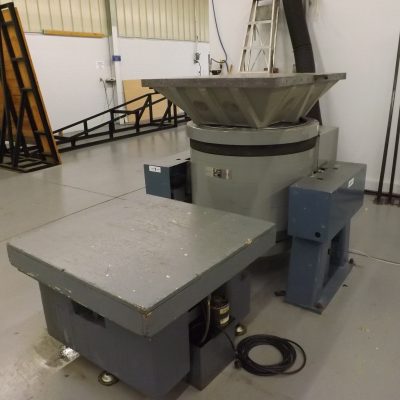

  • Unholtz-Dickie R24 Shaker S/N 549

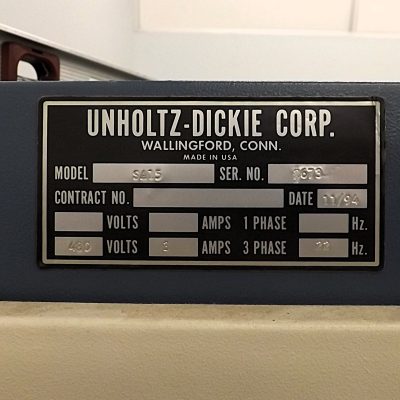

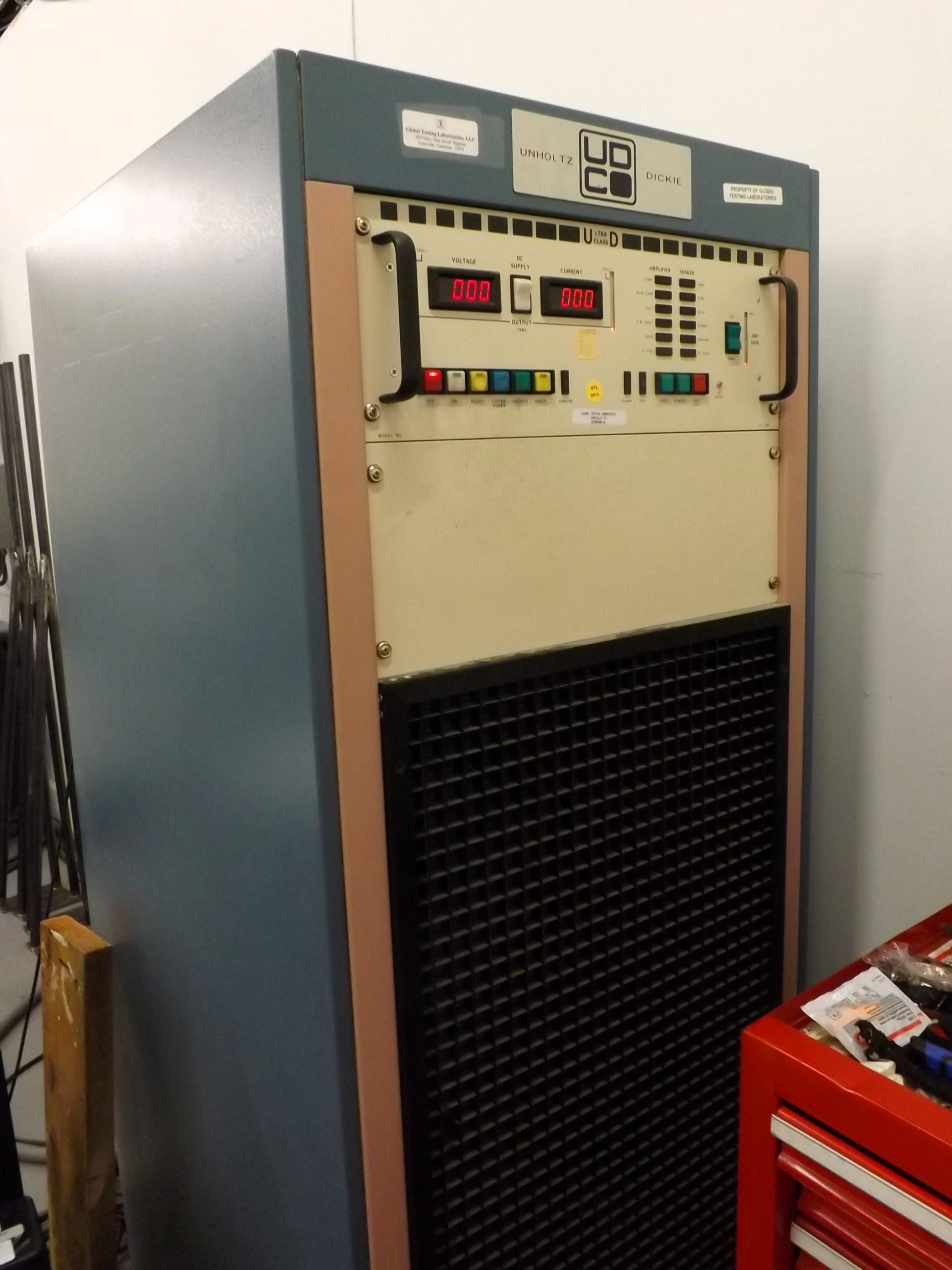

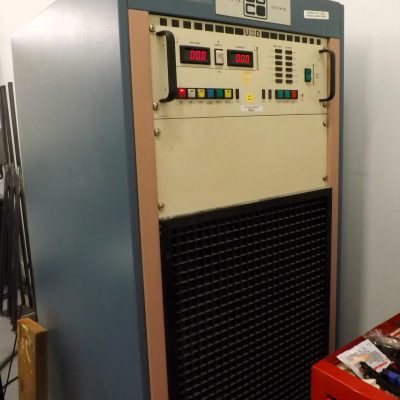

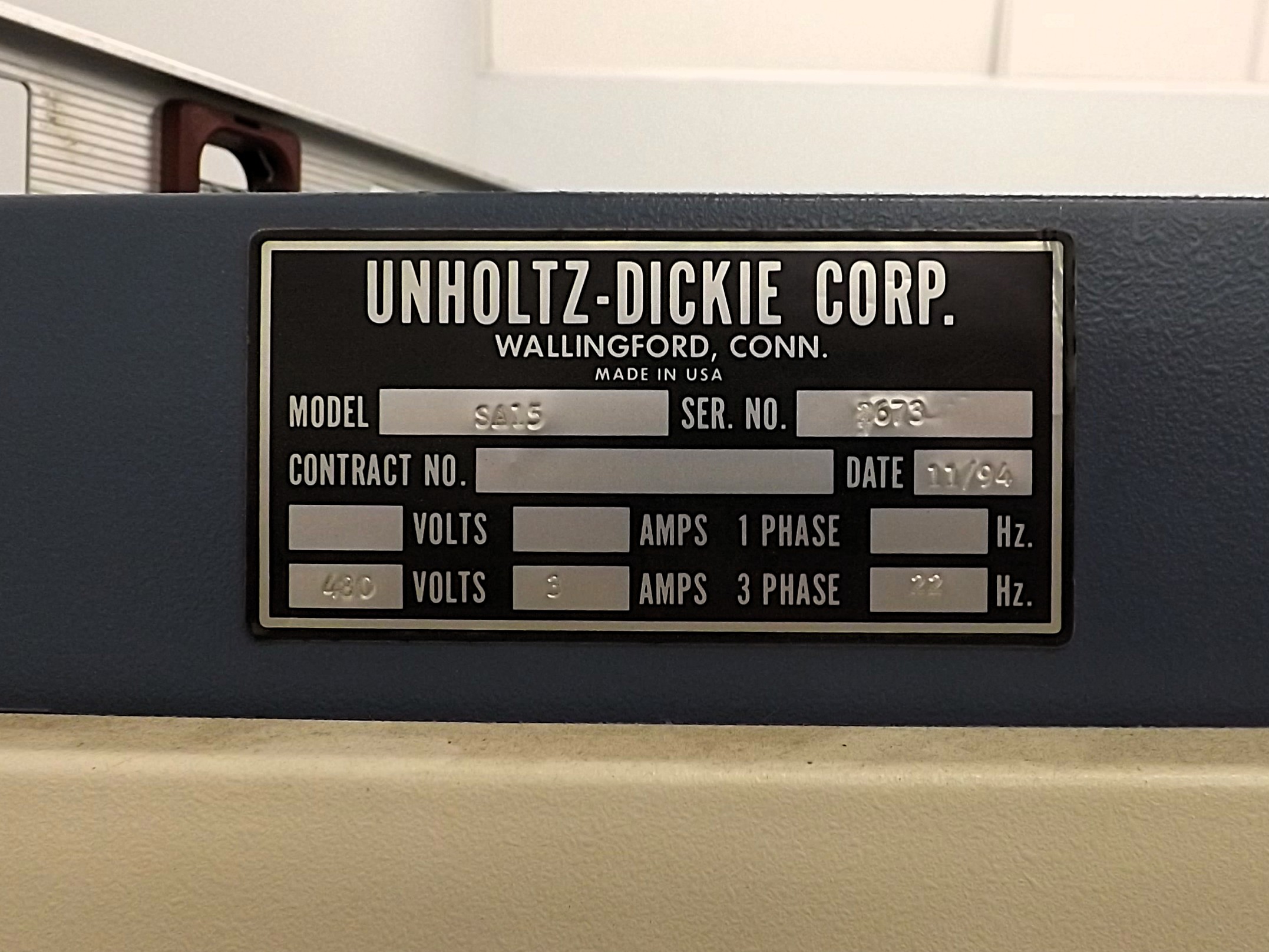

  • Unholtz-Dickie SA15 Power Amplifier S/N 2673
  • Cooling Blower
  • Unholtz-Dickie Field Power Supply

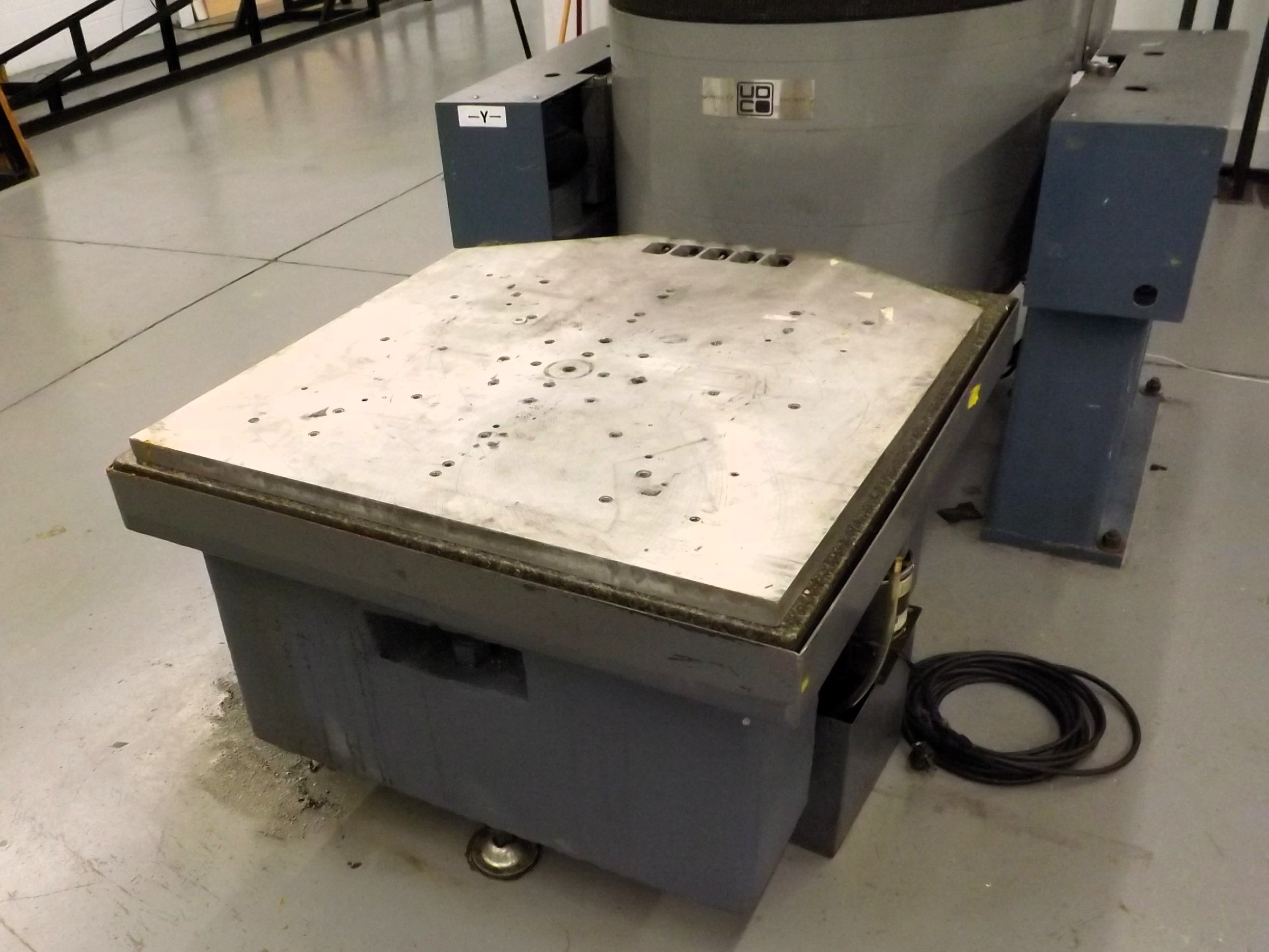

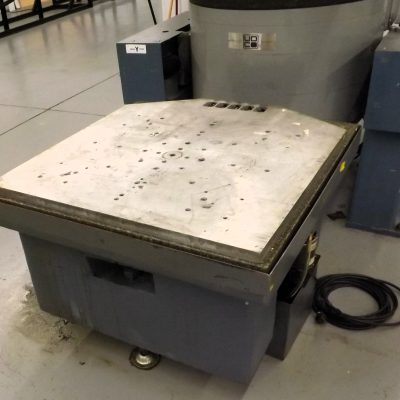

  • 36” x 36" Slip Table and 36" x 36" Head Expander
  • Manuals, Miscellaneous Hoses, Cables & Accessories


FOB Warren, MI
Cleaned, Serviced and Cycled
30 Day Satisfaction Guaranteed Return Privilege
90 Day Parts and Labor Warranty
