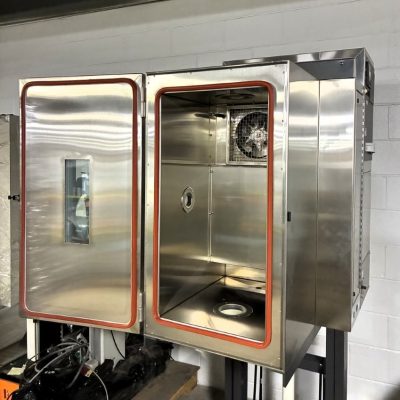

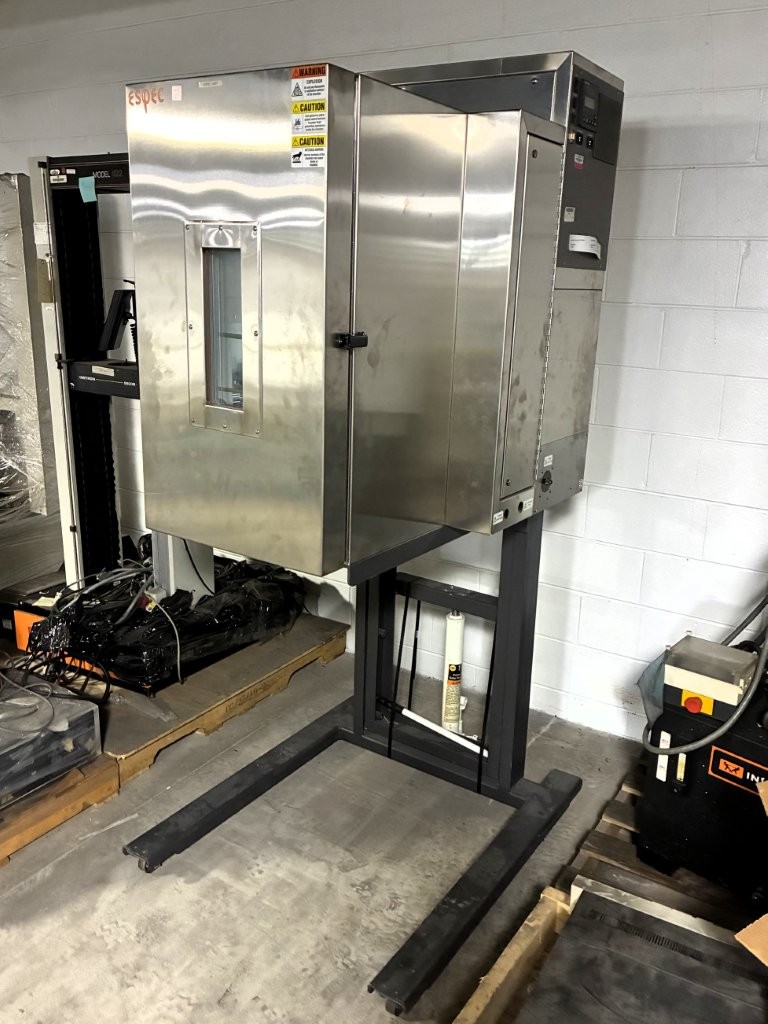

ESPEC Model ETH3-9-CWA Temperature and Humidity Chamber
Condition: Excellent
ESPEC Model ETH3.9-CWA
SPECIFICATIONS:
Model: ETH3.9-CWA
S/N: 406839
Lowest temperature: -20°C to 177°C ( -4°F to 350°F)
Highest temperature: 180°C (354°F)
Humidity Range: 20% to 95%
Approximate Inside Dimensions (W x D x H): 15 x 15 x 30
Approximate Outside Dimensions (W x D x H): 37 x 42 x 83 with Lift
Approximate Chamber Weight (Lbs): 310
Electrical Requirement (V, Hz, Ph,): 230, 60, 3
EQUIPPED WITH:
-

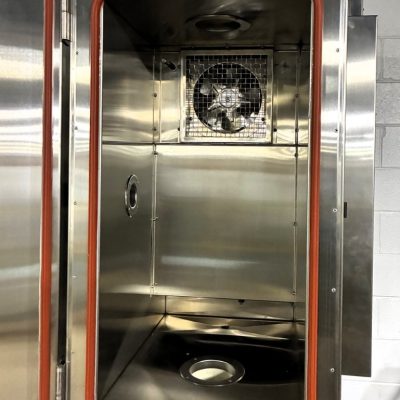

Floor/Ceiling Ports Two 4" Dia., each with two Silicone Plugs.
-
Cable Port One 2" Dia., with two Silicone Plugs.
-
Tapping Plates Two on Bottom of Chamber (see drawing C-406839-001)
-

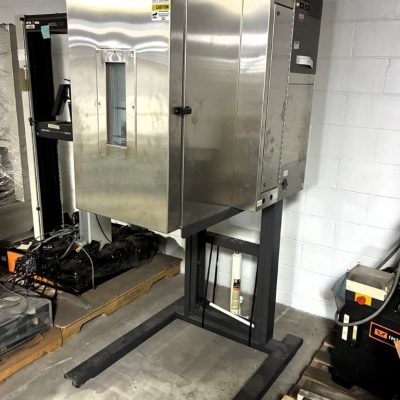

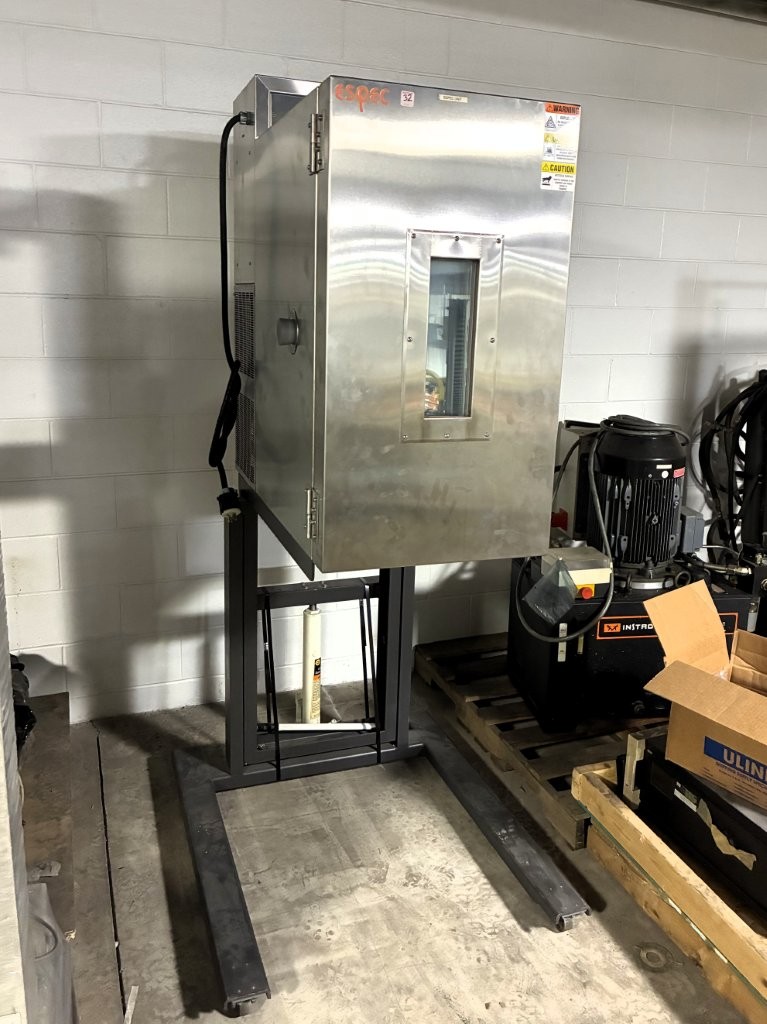

Lift Cart Adjustable height stand/cart for chamber.
-
Cart arms attach to bottom of chamber.
-
(see drawing C-406839-001 for vertical travel dimensions).
-
Liquid Nitrogen Boost Extends low temperature range to -70°C (-94°F) and Increases Pull-Down Rate.
-

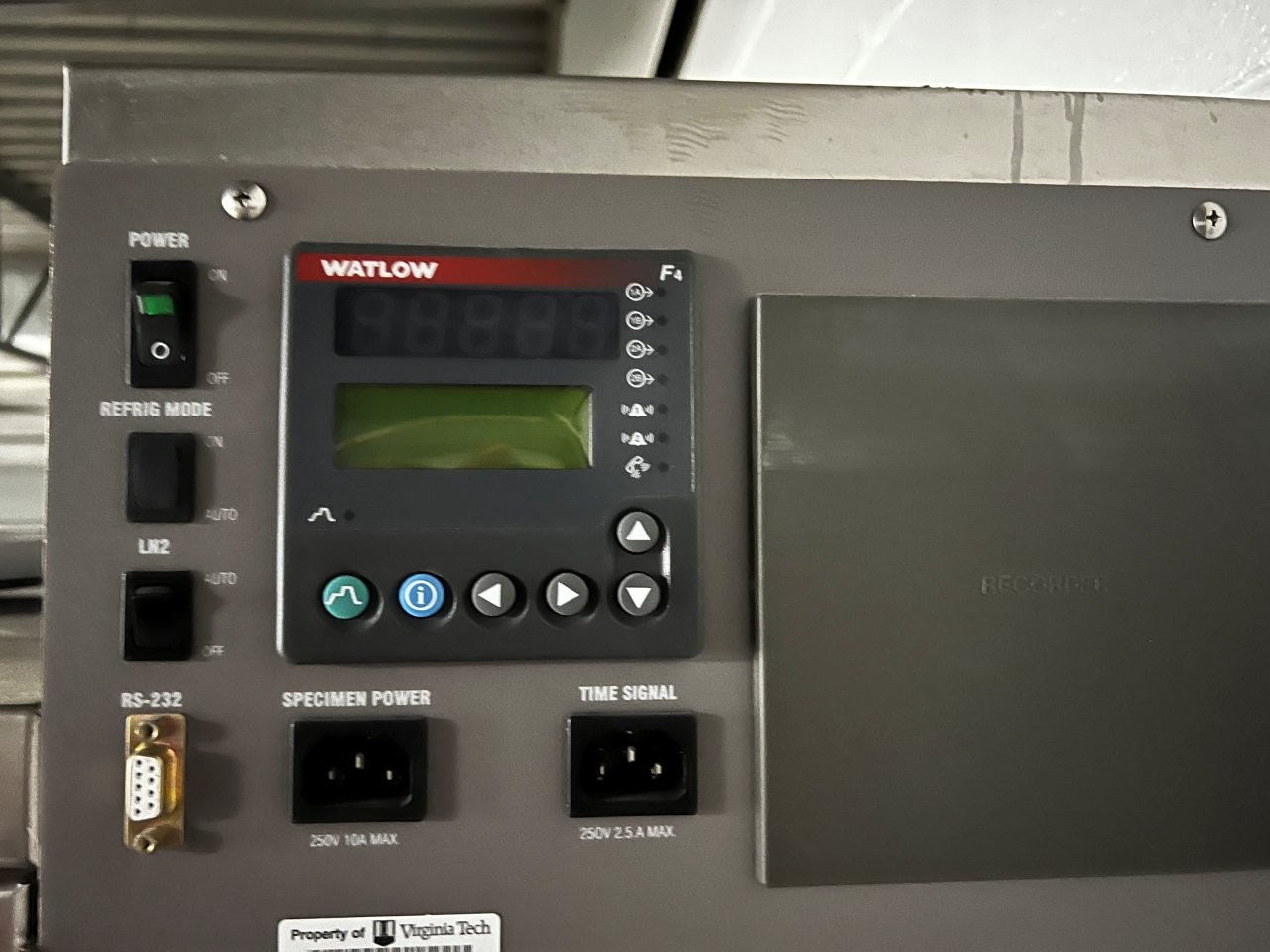

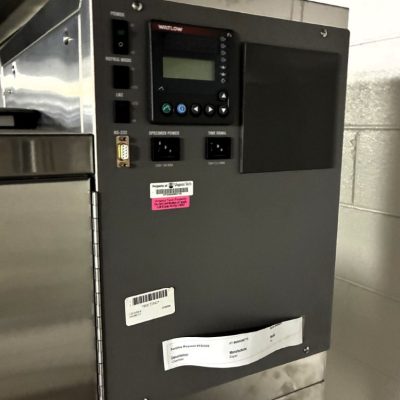

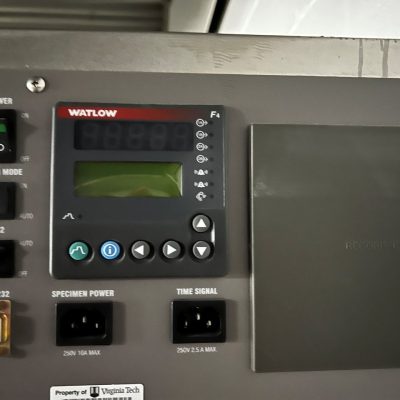

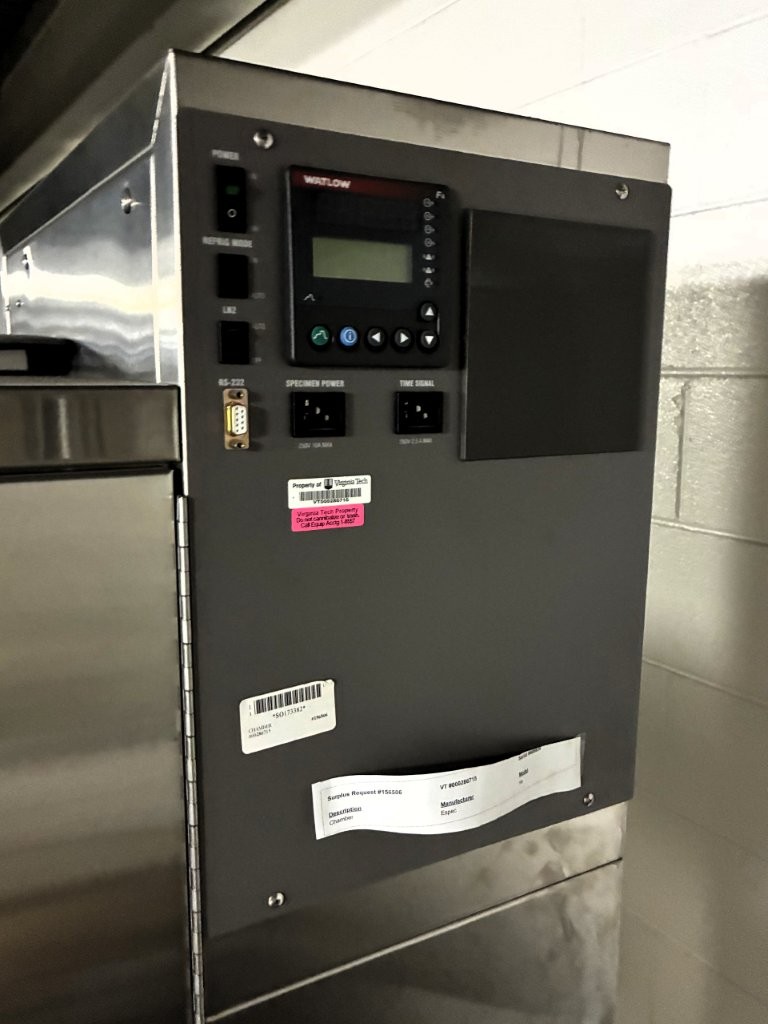

GPIB Interface Converts GPIB to RS-232 for Watlow F4 communication port.
-
LabView™ Drivers LabView™ drivers for GPIB interface.
FOB Warren, MI
Cleaned & Serviced
30 Day Satisfaction Guaranteed Return Privilege
*Actual Images
Click for quote | #13331-03
