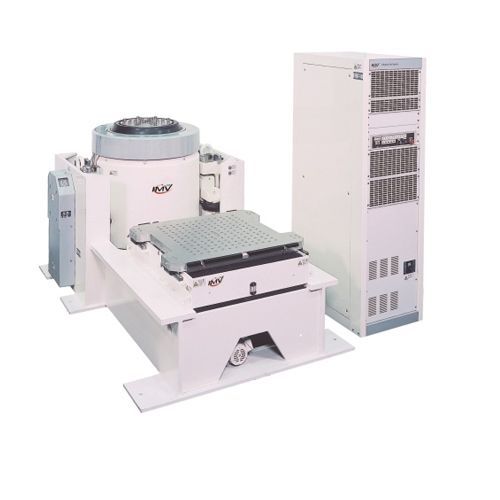

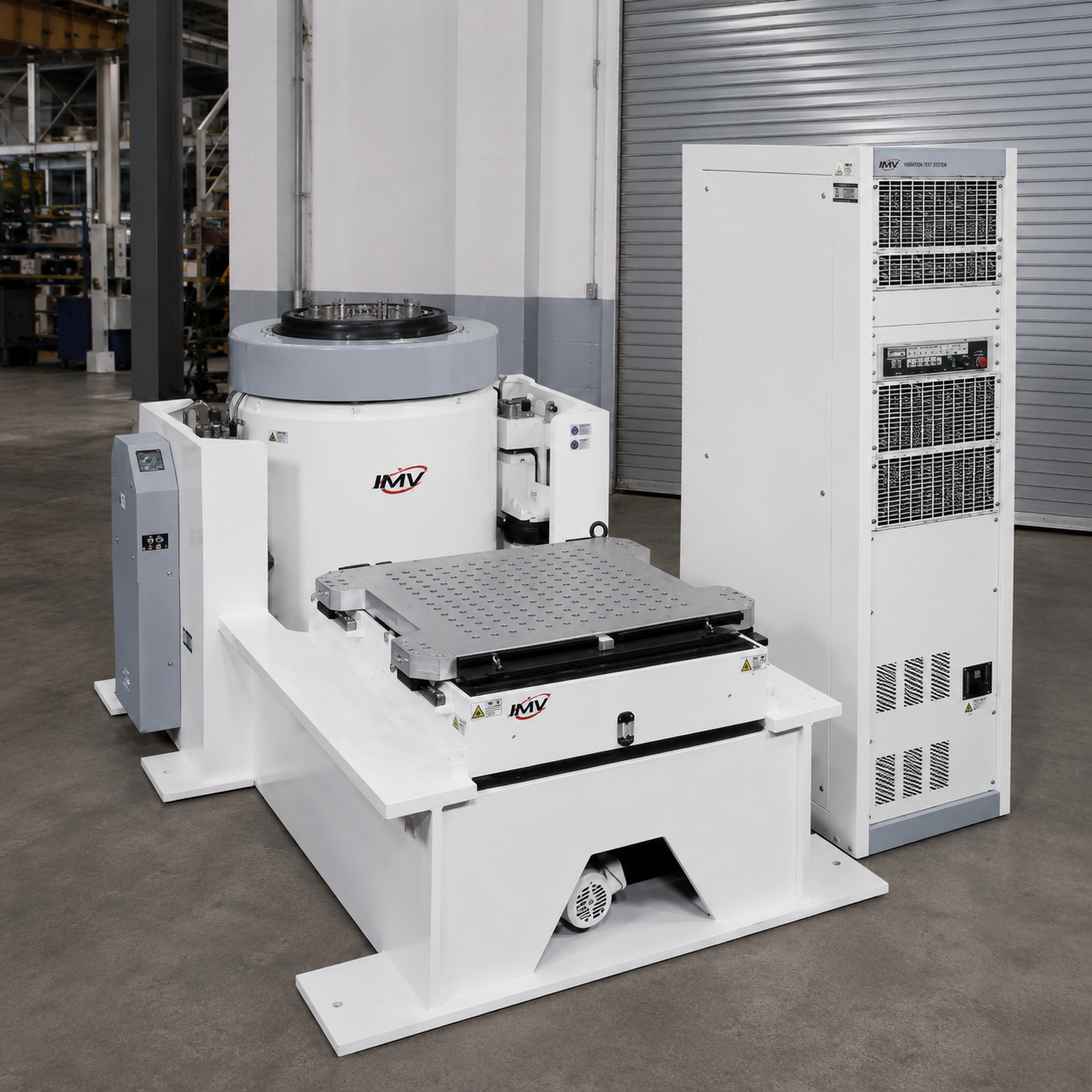

49kN IMV Corporation Model J255/SA7M Vibration System

(1) USED 11KIP (49kN) IMV Corporation Model J255/SA7M Vibration System Shaker with SA7M Power Amplifier and Slip Table.

***Fully Serviced by IMV North America***

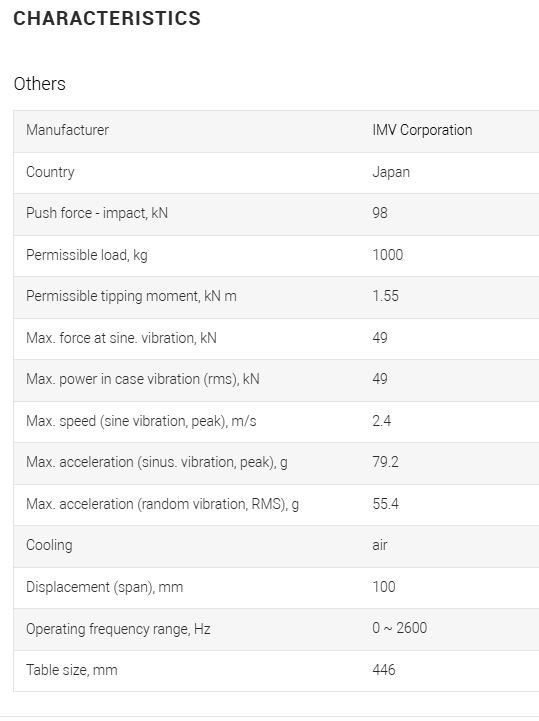

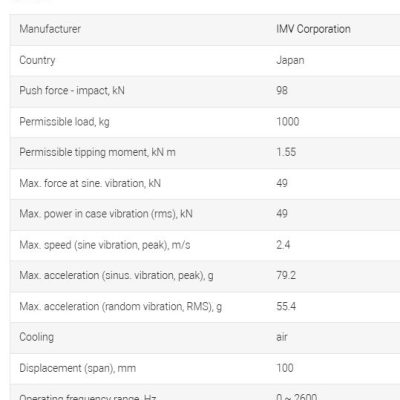

SPECIFICATIONS:

Force Rating:

Random: 11,000 lbs. (49 kN) RMS

Sine: 11,000 lbs. (49kN)

Shock: 22,000 lbs (98 kN)

Stroke: 4" peak to peak (100 mm)

Frequency Range (Hz): DC to 2,600Hz Max

Max Acceleration: Sine - 79.2 g Random - 55.4 g Shock - 158 g

Maximum Velocity: 94.48 in/sec (2.4 m/s)

Table Diameter: 17.32” (440 mm)

Armature Weight: 99 lbs. (45 kgs)

Maximum Payload: 2204 lbs (1000 kg)

Total Weight (lbs.): 6,500 lbs.

Voltage Requirements: 208V, 60Hz, 3PH, 100A

Shaker Dimensions: 84"W x 55"D x 46"H

Amplifier Dimensions: 32"W x 48"D x 78"H

Blower Dimensions: 36"W x 36"D x 44"H

EQUIPPED WITH:

• IMV Model J255 Shaker (S/N)
• 1000 mm x 1000 mm Slip Table System (Weight: 374 lbs)
• 1000 mm x 1000 mm Head Expander (Weight: 225 lbs)
• IMV Model SA7M Power Amplifier
• IMV Cooling Blower
• System Cables

FOB Warren, MI

Cleaned, Serviced and Cycled by IMV North America

30 Day Satisfaction Guaranteed Return Privilege

90 Day Parts and Labor Warranty
