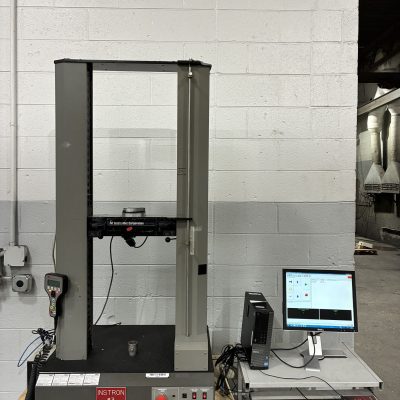

Instron Model 4202

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 16"

Testing Stroke: 48"

Table Size (W x D): 16" x 25"

Testing Speed (IPM): 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

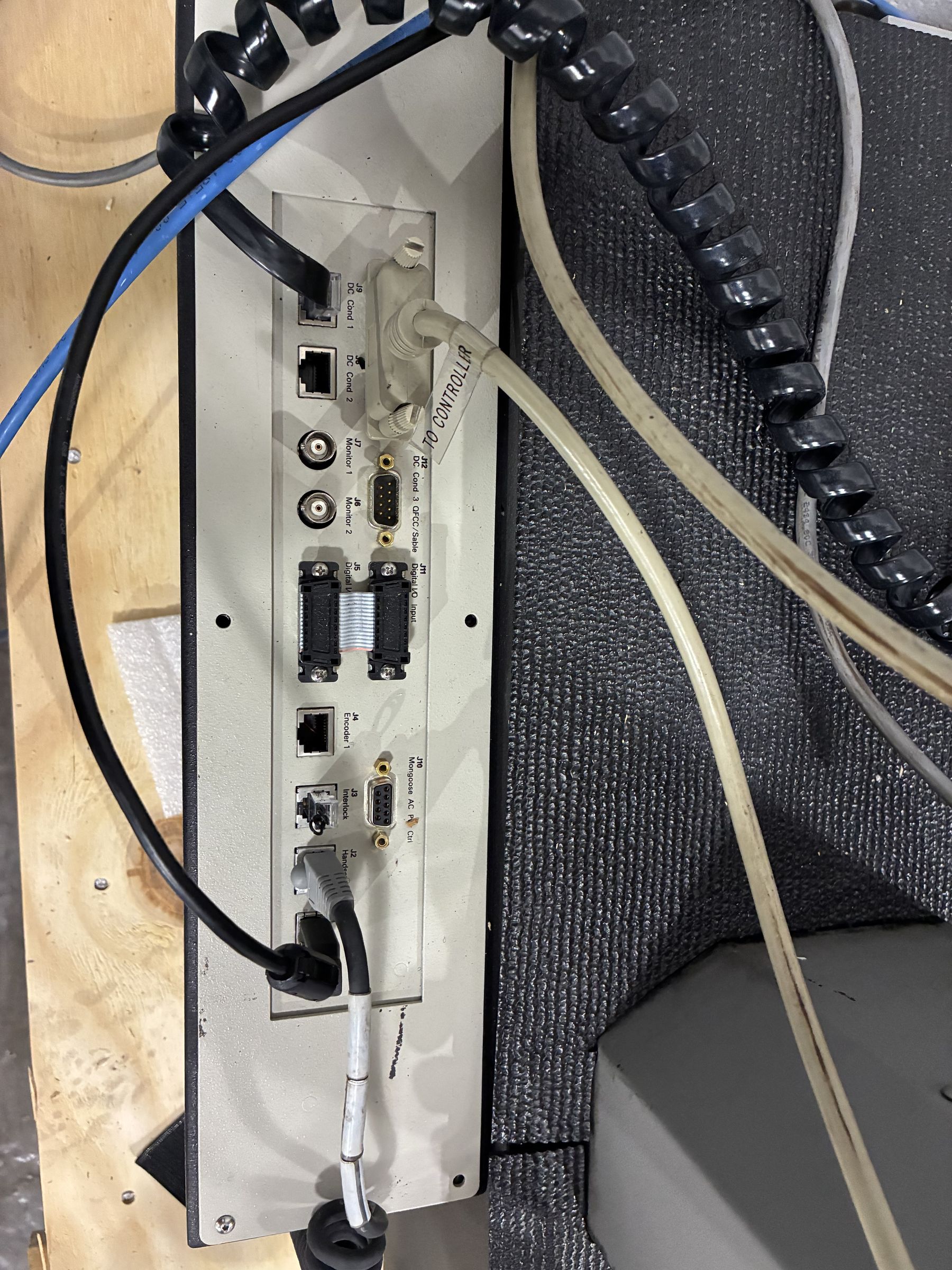

New Tabletop Control Console (W x D x H): 16" x 19.5" x 11.5

Load Frame (W x D x H): 30 ½" x 25" x 64"

Weight (lbs.): 360

Electrical Requirements (V, Hz, PH): 120, 60, 1

EQUIPPED WITH:

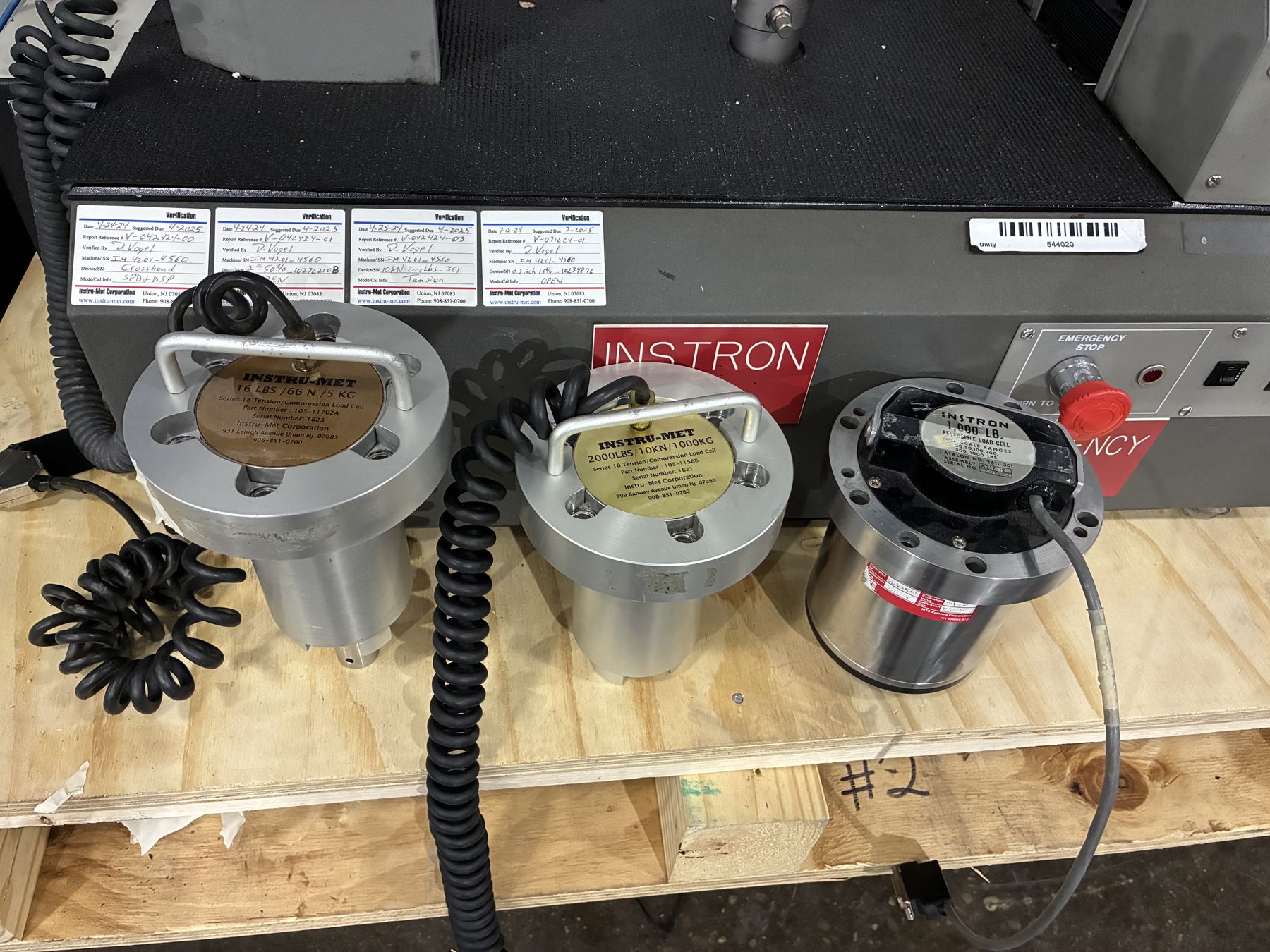

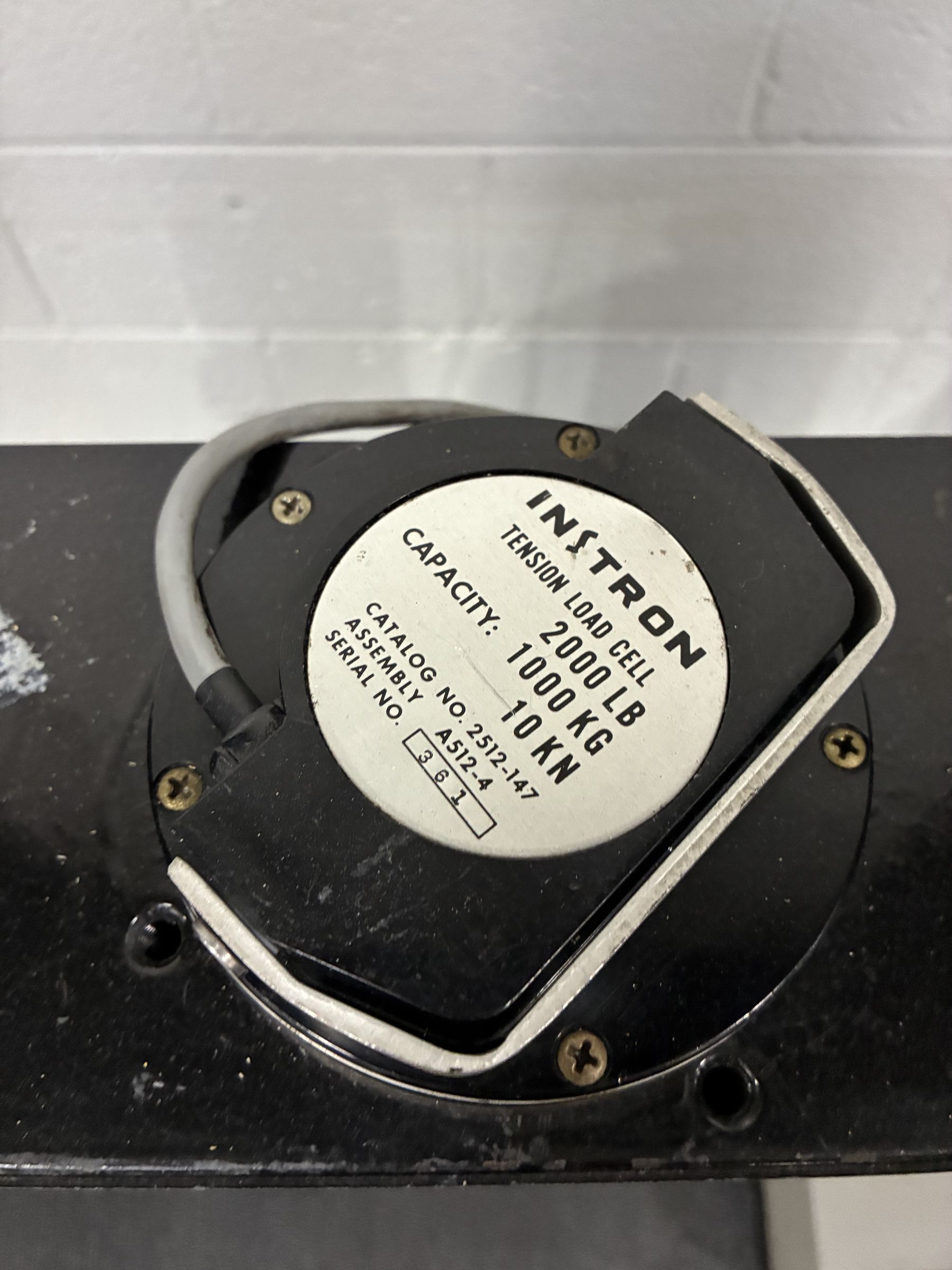

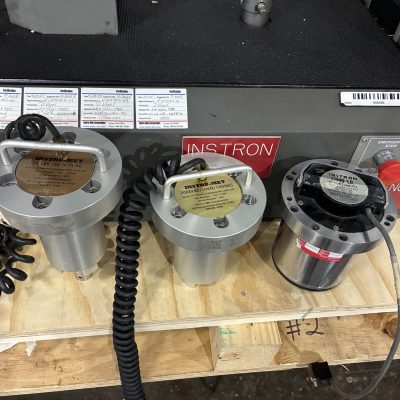

•  3 Load cells 5kN, 10kN, and 66N
• MTS TestWorks 4 Materials Testing Software

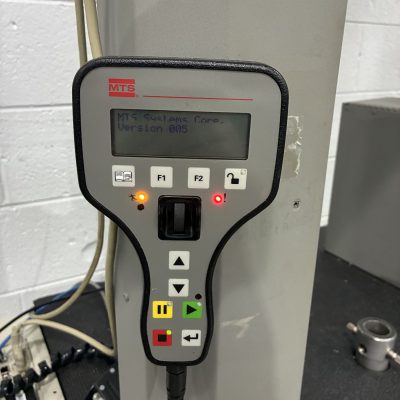

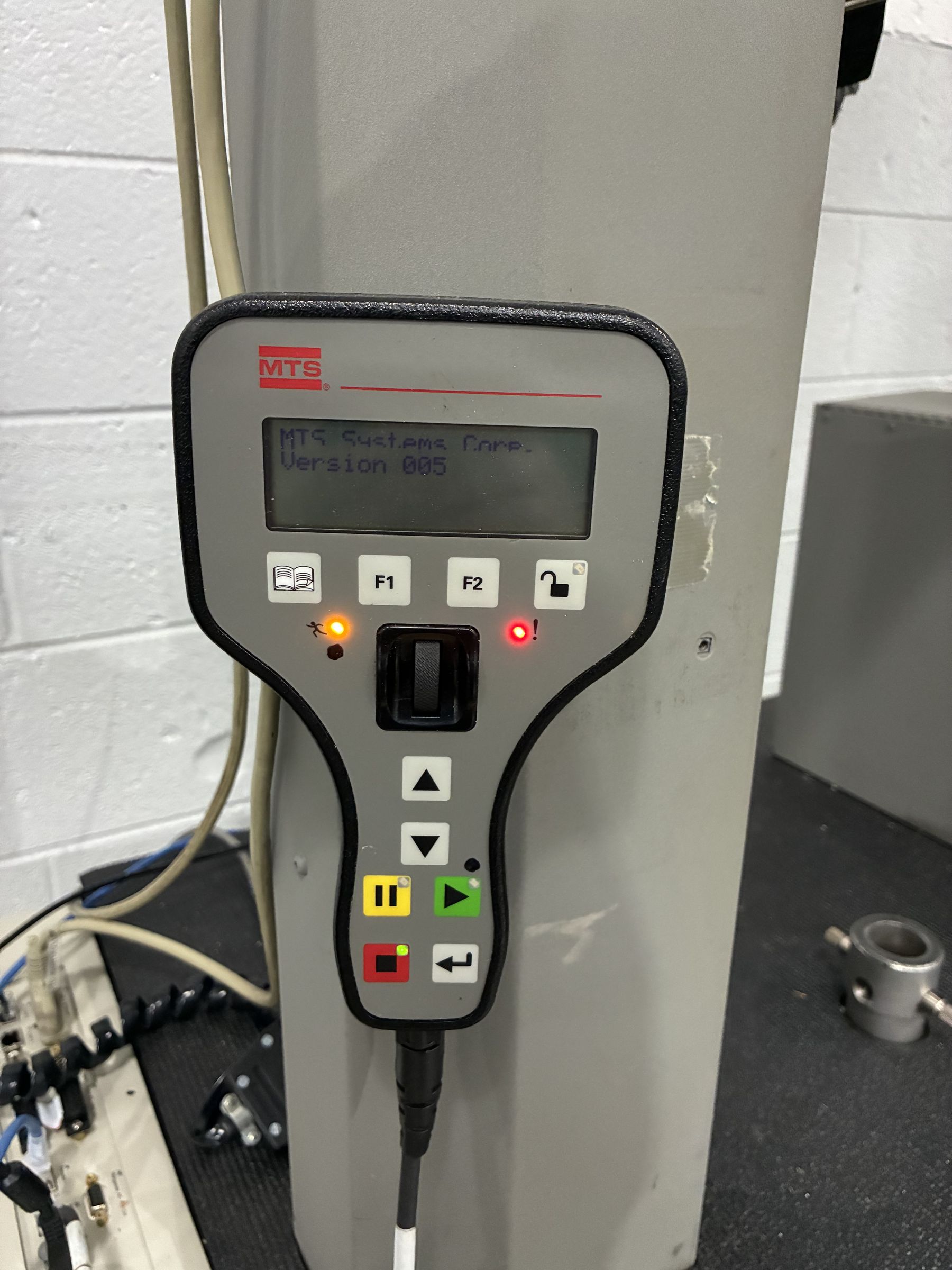

• MTS Handset Controller

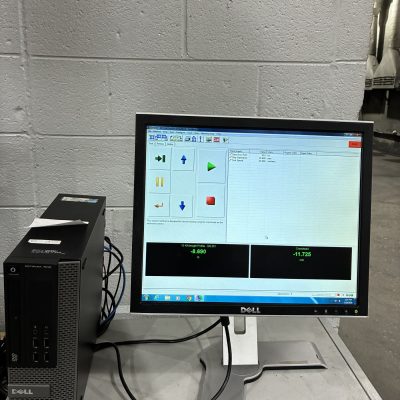

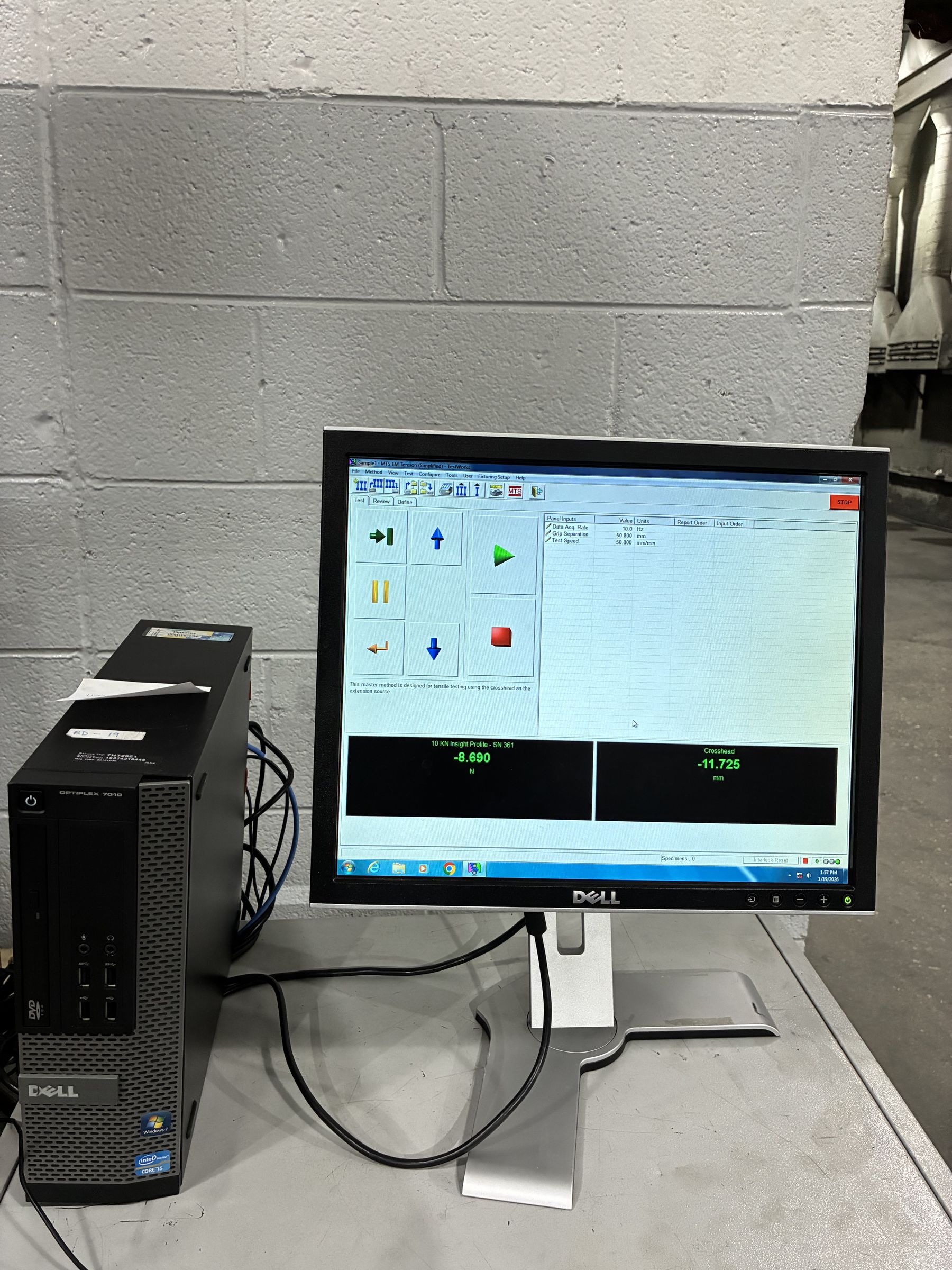

• Computer, Mouse, and Keyboard

Great condition. Machine is fully operational. Comes with a 30 day return privilege.

*Actual Images
