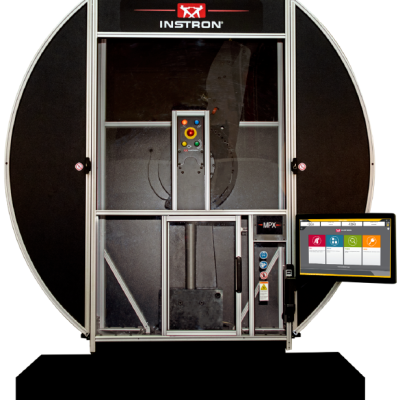

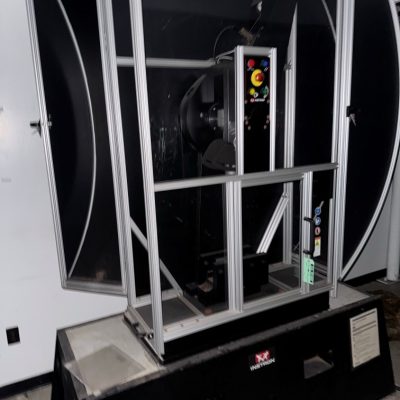

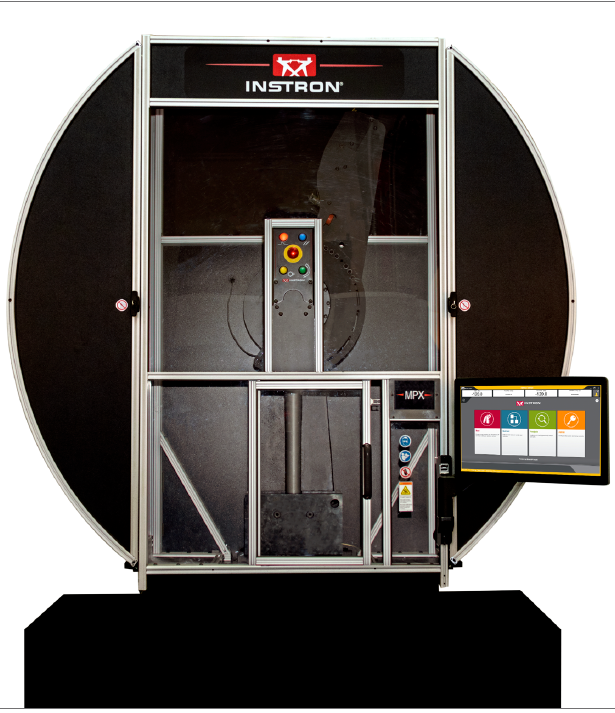

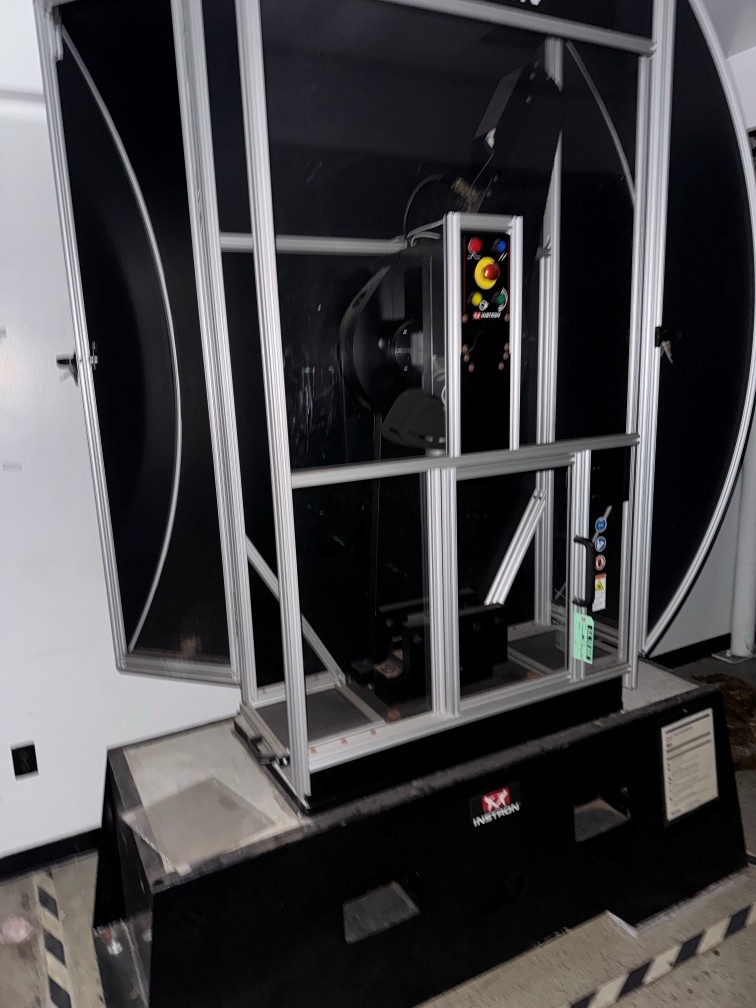

Instron Model 450 MPX Charpy Impact Tester

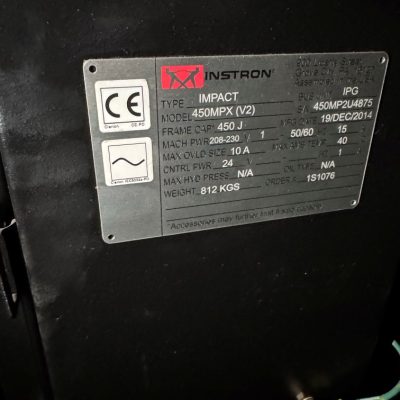

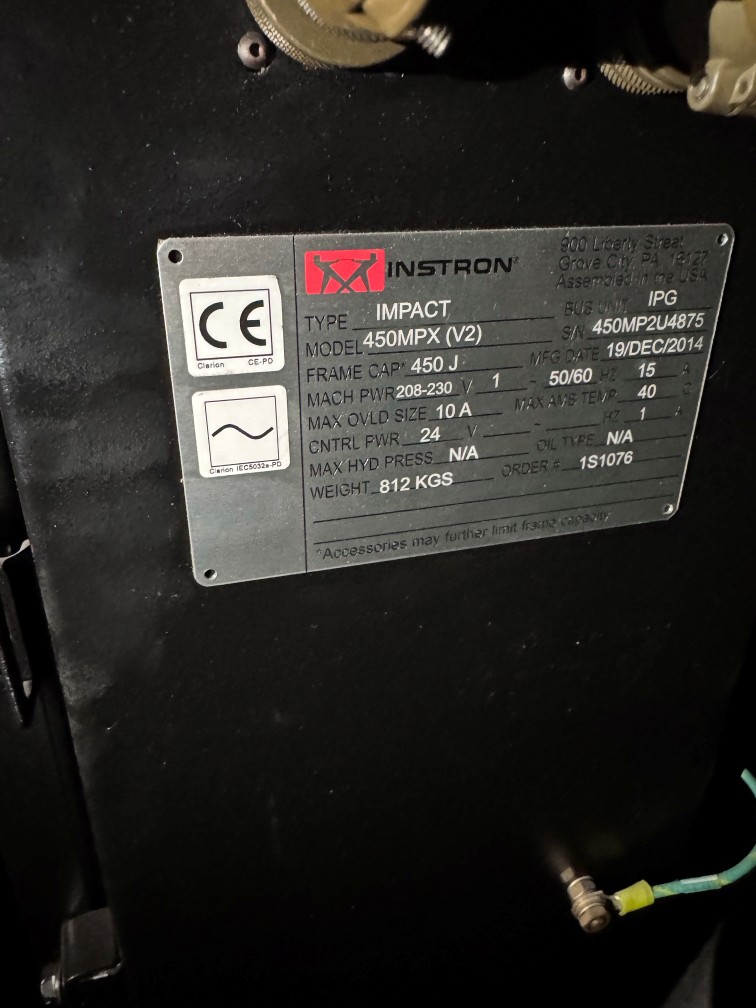

Instron Model 450 MPX (V2), 450J Motorized Pendulum Charpy Impact Tester Serial number 450MP2U8475

Specifications:

Impact Energy Range (dependent on Hammer): 300J to 900J
Impact Speed: 5.3m/s
Release Angle (Adjustable): 150 Degree
Pendulum Length: 762mm
Encoder Resolution: .0009
Electrical Requirements: 208V, 50/60Hz, 15AMP, 1phase
Dimensions: 1990 × 2200 × 1117 mm
Weight: 2,950LBS

EQUIPPED WITH:
-Upgraded to NEW Instron Bluehill Enhanced Impact Extended System
- Dell High Performance Workstation PC
- Windows 11 Professional operating system (64 bit)
- 22 inch Flat Panel LCD Monitor
- 450J Hammer (other hammers can be purchased from Instron)
-Real time analog dials and digital data with
a modern user interface
-Clear visual indication of pass or fail based on
user-input criteria
-Pre-configured test methods to ASTM E23 & ISO148
-Prompted Test Method sequence for consistent testing
-User interface clearly displays the system
status/position to ensure operator safety
-Bluehill’s modern report generator allows users
to create customized report templates that can
be linked with test methods and used to export
test results
-Result export files are customizable for enhanced
compatibility with Laboratory Information
Management Systems
-Easy to configure control charts making test
results simple to analyze
-TrendTracker plug-in included

LINK TO OEM BROCHURE
https://www.instron.com/wp-content/uploads/2024/07/motorized-pendulum-impact-testing-system-mpx-systems-1.pdf

FOB Warren, MI
30 day return privilege
