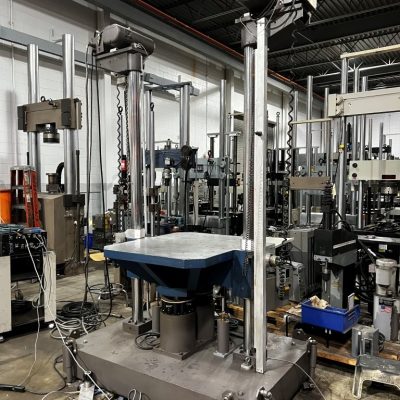

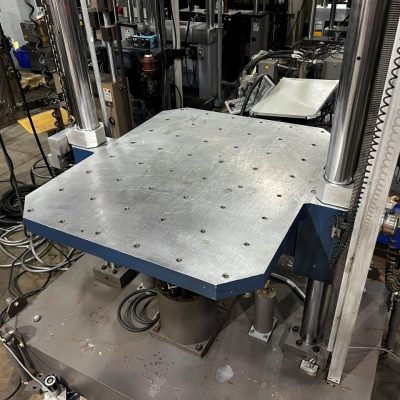

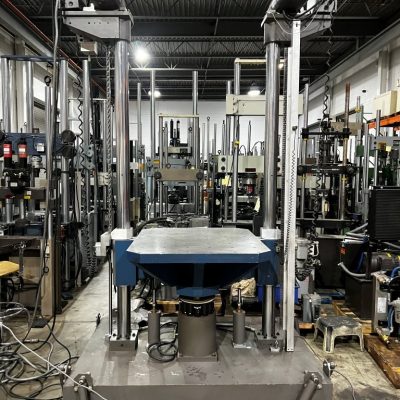

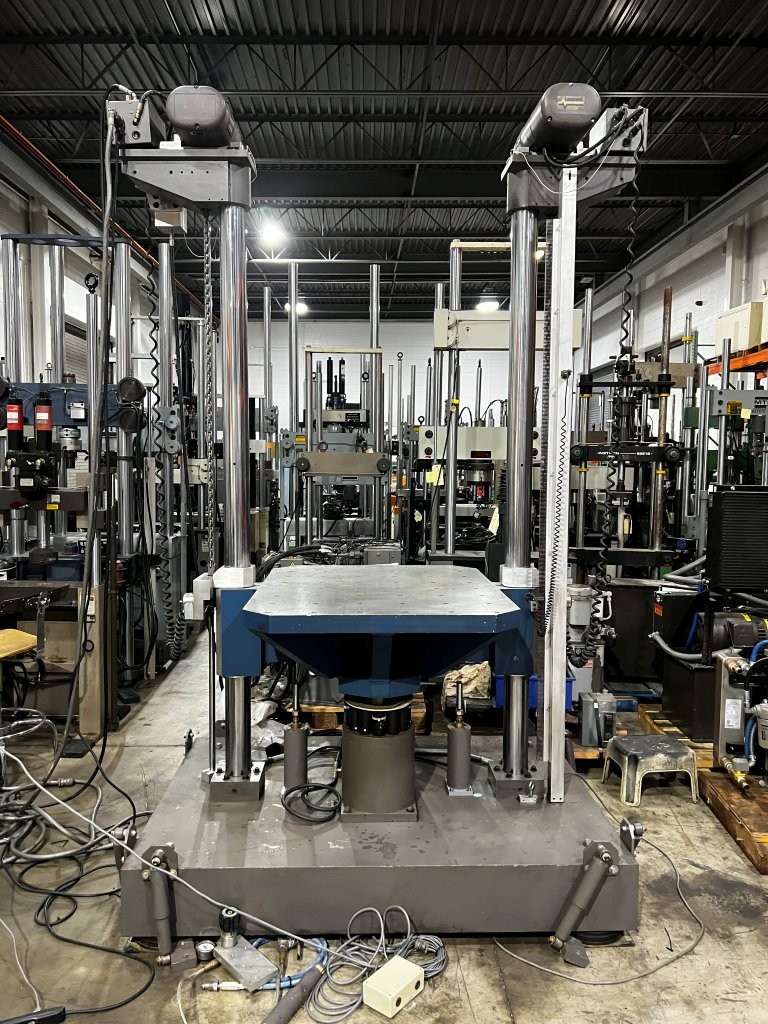

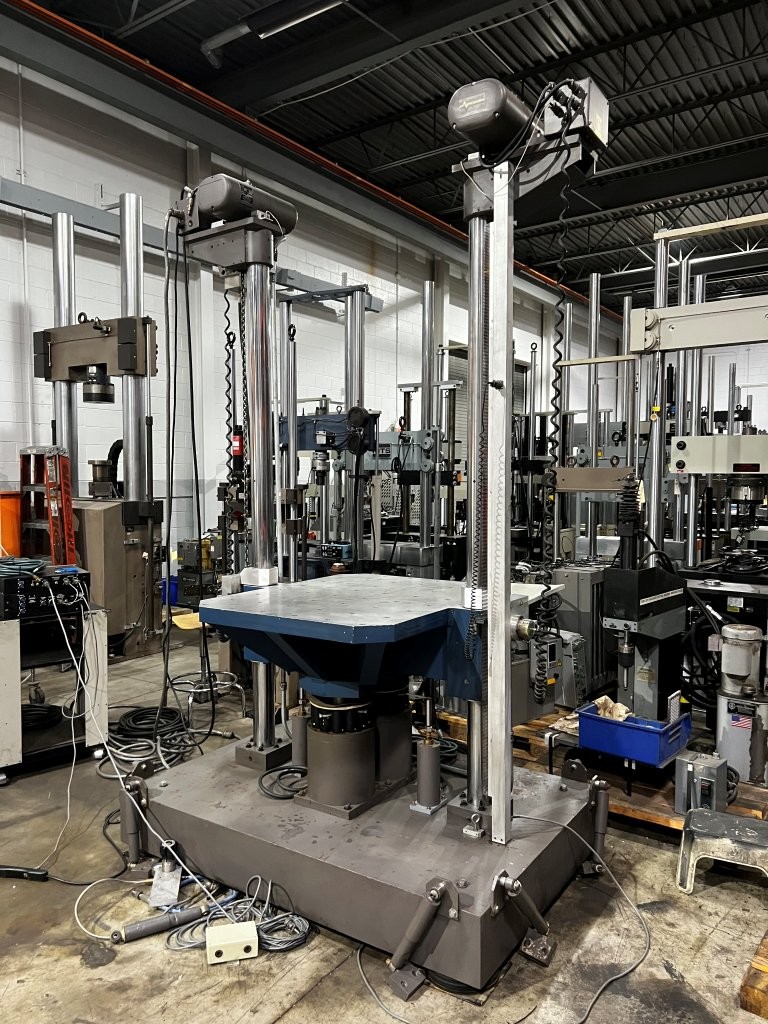

Lansmont Model 95/115 Shock Test System
Lansmont Model 95/115
SPECIFICATIONS:
Max Specimen Weight: 1000 lbs
Max Package Size:
Length: 45"
Width: 37"
Height: No Restrictions
Max Acceleration: 600g (Bare Table)
Min Pulse Duration: 2 msec (Half Sine)
Max Velocity Changes: 24 ft/sec
Approximate Overall Dimension:
Height 121 in. (307.5 cm)
Side to Side 78 in. (198 cm)
Front to Back 57.5 in. (146 cm)
Voltage Requirements: 220V, 60Hz, 3Ph
Air Requirements: 90 PSI
EQUIPPED WITH:
-
Two Precision Guide Rods
-
Damage Boundary Programmer for Clean Waveforms
-
Dual Table Hoists
-
Wide Range of Programmable Shock Pulses
FOB Warren, MI
30 Day Satisfaction Guaranteed Return Privilege
Click for quote | #12833-00
