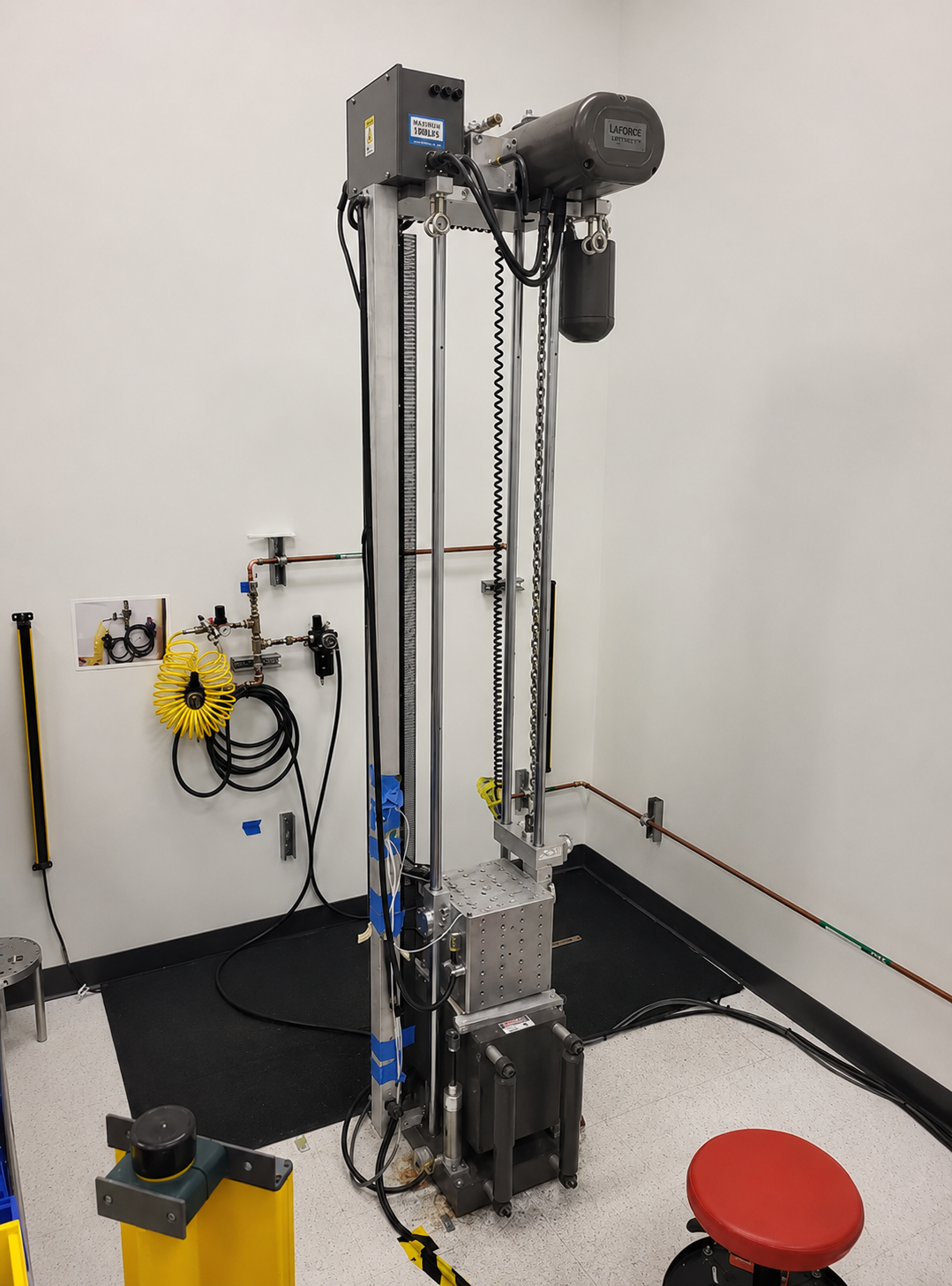

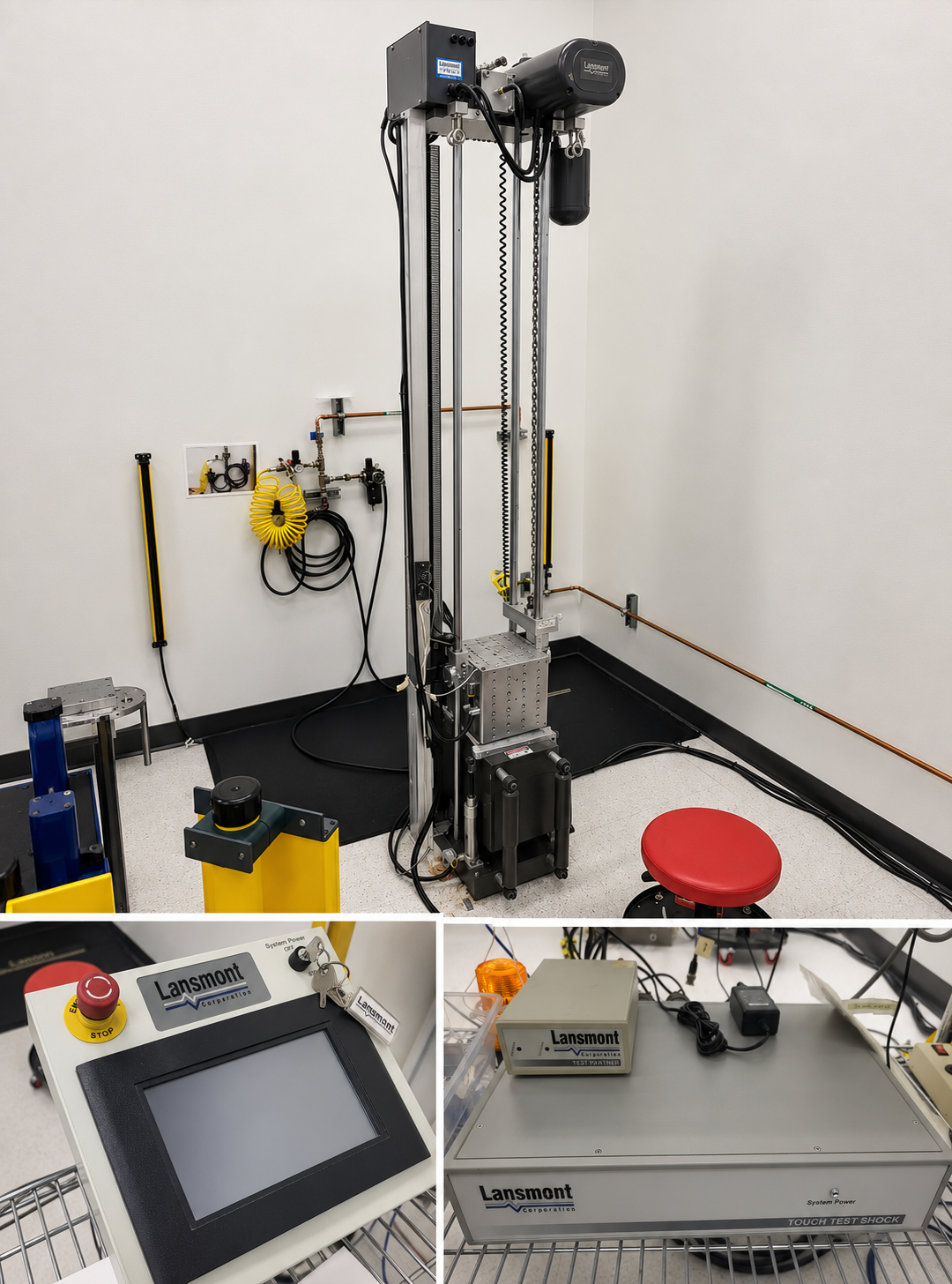

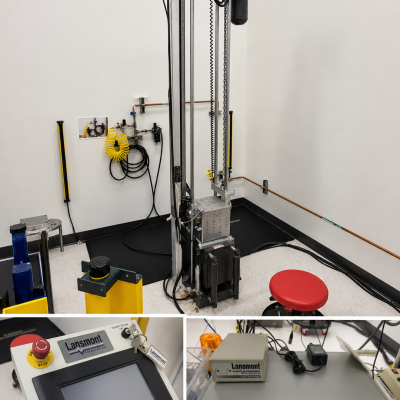

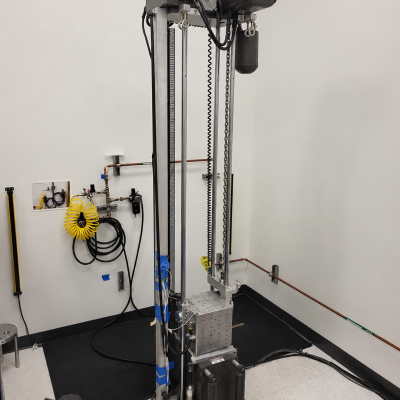

(1) USED Lansmont Model M23 TTS II Shock Machine Test System

Serial Number: 16151

Lansmont Model P30 TTS II

SPECIFICATIONS:

Max Specimen Weight: 40 lbs

Table Dimensions:

Front Face: 9.06" x 9.06"

Top Face: 6.0" x 9.06"

Max Acceleration: 5000g (Bare Table)

Min Pulse Duration: .25 msec (Half Sine)

Max Velocity Changes: 24 - 32 ft/sec (7.3 - 9.7 m/sec)

Approximate Overall Dimension (W x D x H): 21" x 24" x 120"

Weight: 1,250 lbs

Voltage Requirements: 120V, 60Hz, 1Ph

Air Requirements: 90 PSI

EQUIPPED WITH:

• Two Precision Guide Rods
• Damage Boundary Programmer for Clean Waveforms
• Single Table Hoists
• Wide Range of Programmable Shock Pulses

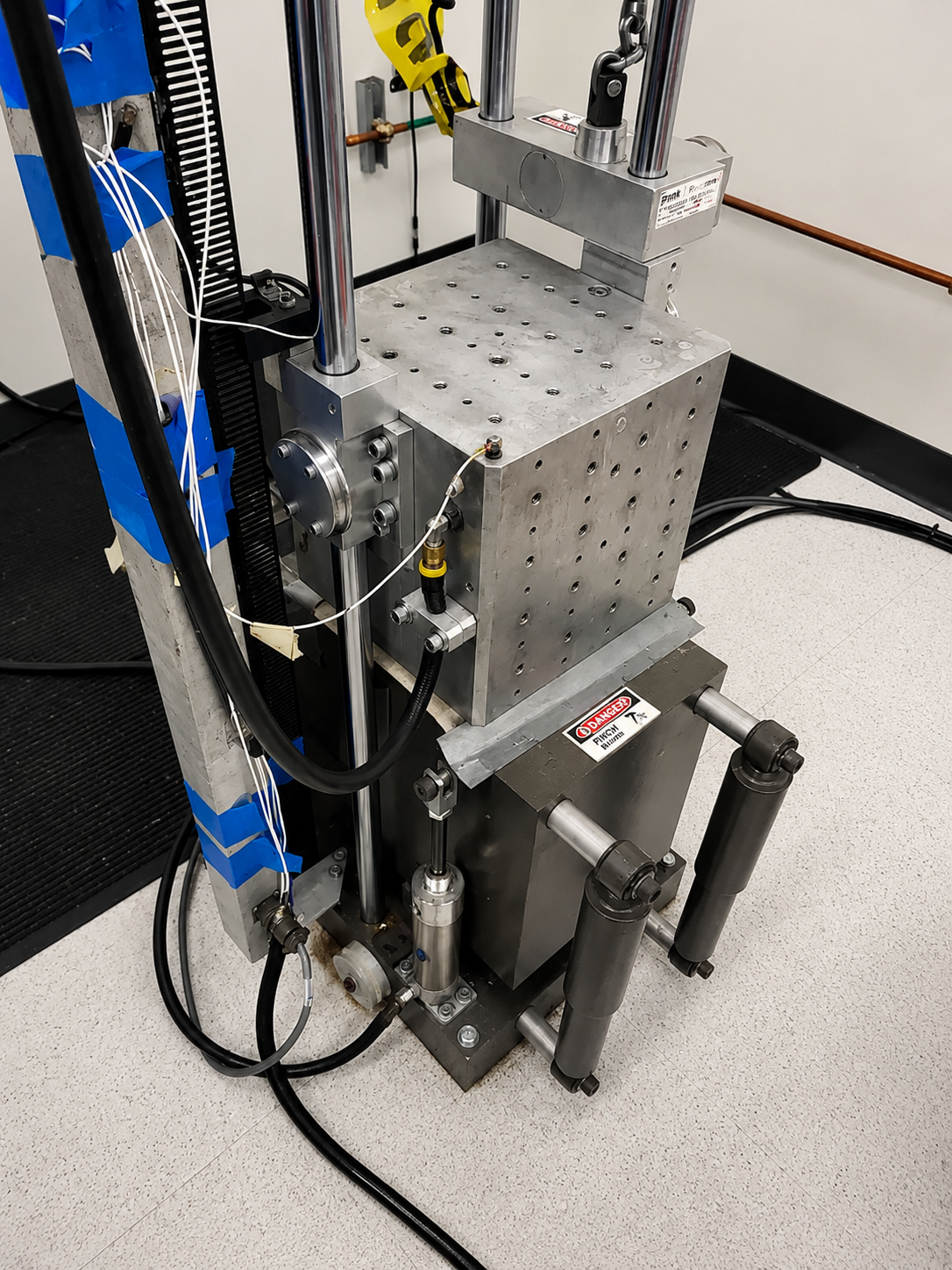

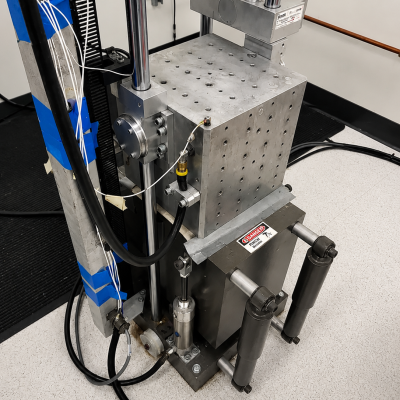

• Magnesium Table with Tapped Grid Pattern
• Lansmont Touch Test Touch II Digital Controller

FOB Warren, MI

30 Day Satisfaction Guaranteed Return Privilege
