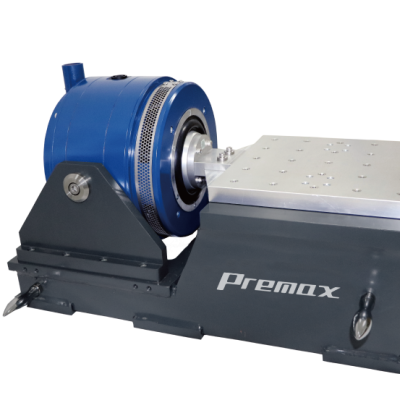

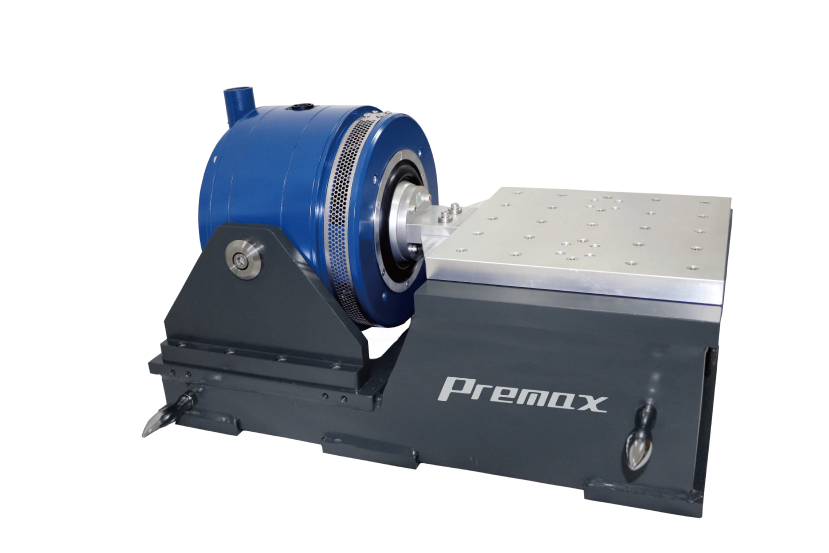

New 1000N LT-100-ST Vibration Tester with Slip Table and Amplifier

(1) New Frank Bacon, Model LT-100-ST, Miniature Electro-Dynamic Vibration Test System with Power Amplifier and Slip Table.

LT-100-ST (1000N) Miniature Vibration

SPECIFICATIONS:

Force Rating (Sine): 1000 N (225 lbf)
Force Rating (Random): 700N (158 lbf)
Force Rating (Shock Peak): 2000 N (450 lbf)
Peak to Peak Displacement: 25.4 mm (1.0”)
Frequency Range (Hz): 5 – 6,500 Max
Armature Diameter: 120 mm (4.72”)
Armature Mass (lbs): 2 kg (4.4 lbs)
Sine Peak Acceleration (Bare Table): 50 g
Max Armature Payload: 15 (lbs)
Overall Dimensions:
       Shaker with Slip Table: 28L" x 16"W x 20"H
       Amplifier: 22"L x 20"W x 8"H
Total Weight: 440 lbs

EQUIPPED WITH:

• 300mm x 300mm Slip Table for Testing in Both Vertical & Horizontal Configurations (Weight: 10 lbs)
• 1,300 W Solid State Air Cooled Power Amplifier
• LT-100 Cooling Blower
• Signal Input for Closed-Loop Control (Vibration Controller Required)

FOB Warren, MI

1 Year Parts and Labor Warranty
