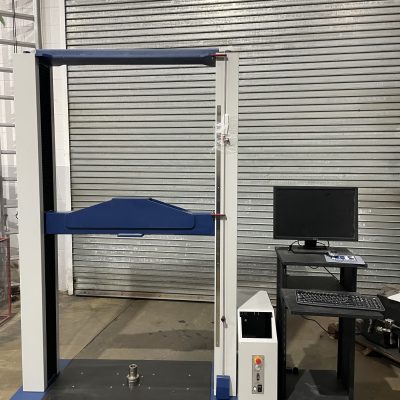

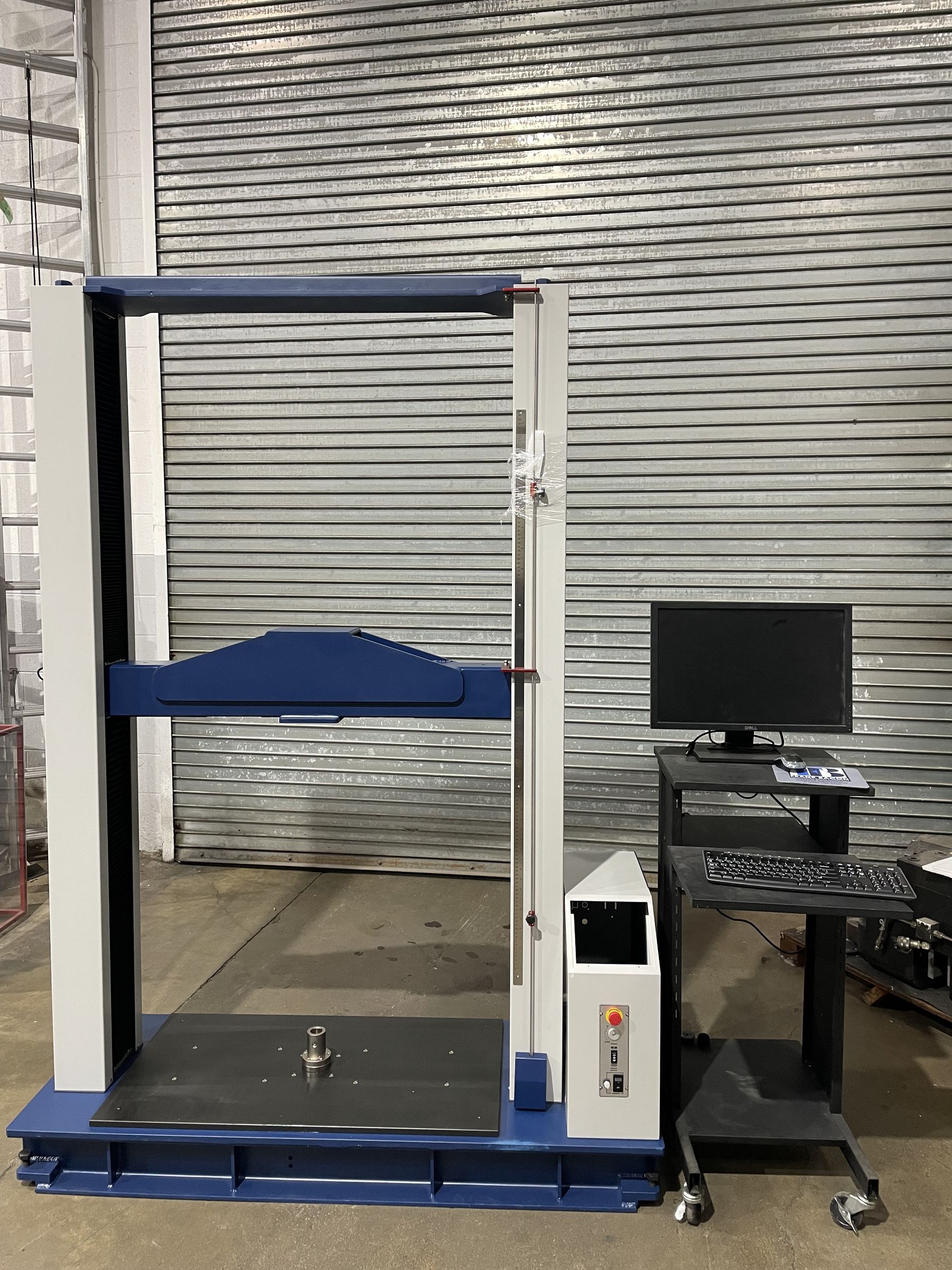

NEW 11,250 lbf (50kN) Frank Bacon Extra Wide Model FB-50EM-TT-EEW
NEW Frank Bacon 50kN Extra Wide
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 66"
Compression Testing Opening (Less Tooling): 66"
Distance Between Columns/Screws: 41"
Table Size: 39.5" x 21.5"
Testing Stroke: 50"
Testing Speed (IPM): .00002 – 14
Crosshead Adjusting Speed (IPM): 14
Load Frame Dimensions: 64" x 25" x 90"
Overall Weight: 1400lbs
Electrical Requirements (V,Hz,PH, Amps): 230, 60, 1, 10
EQUIPPED WITH:
-
Computer with Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor or Better & Manual
-
Microsoft Windows 11 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Precision AC Servo Motor and Drive
-
50kN Tension & Compression Load Cell
-
Upper and Lower Quick Release Adaptors
FOB Warren, MI
NEW, Calibrated and Certified
2 Year Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege
Hundreds of Grips, Fixtures, and Accessories Available
Click for quote | #FB-50EM-TT-EEW
