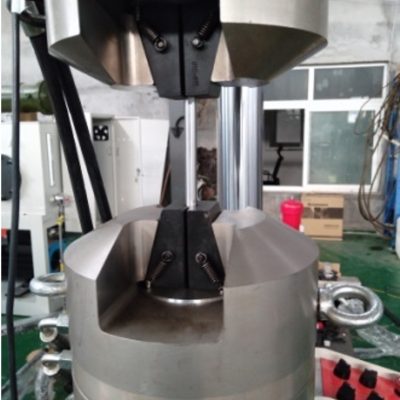

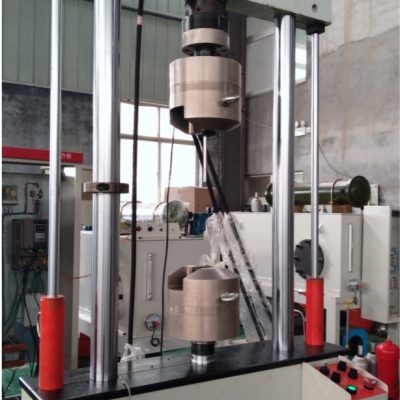

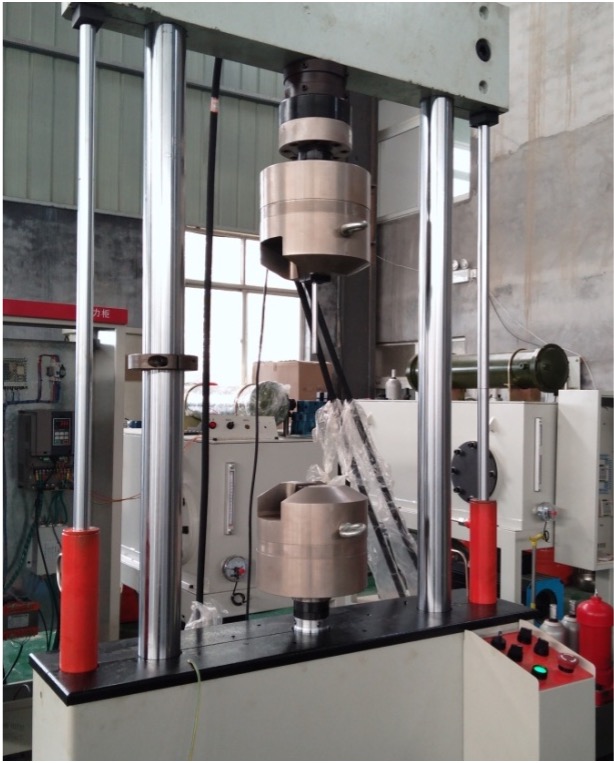

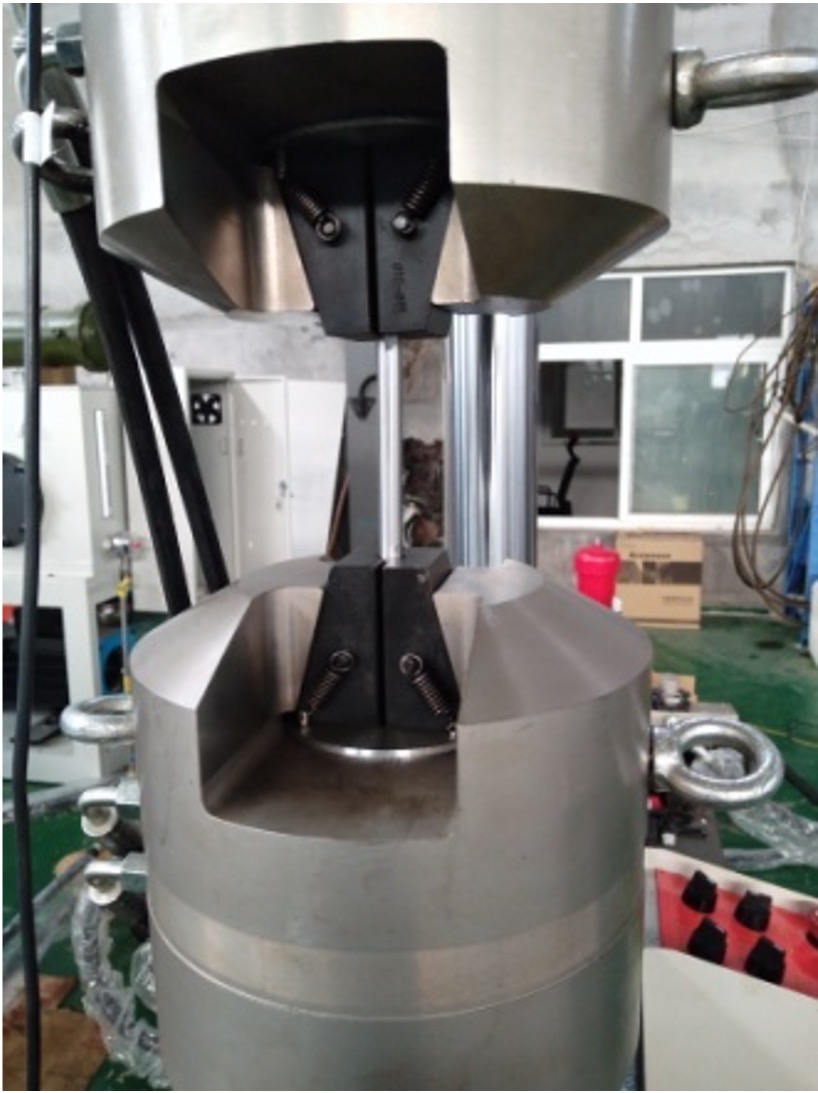

New 110KIP (500kN) Frank Bacon Fatigue Hydraulic Wedge Grips
New Set of Frank Bacon 500kN Fatigue Rated Hydraulic Wedge Action Fatigue Rated Grips

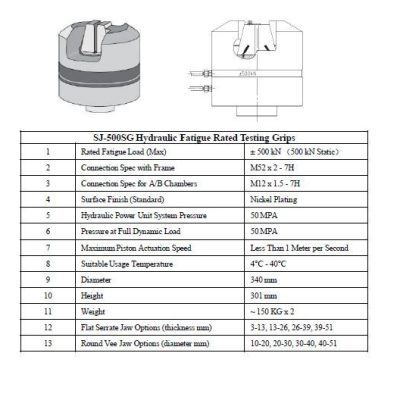

SPECIFICATIONS:
Model: G-FB500KNHWG
Fatigue Capacity: 110 KIP (500 kN)
Max. Hydraulic Supply Pressure: 3000 PSI
Stud Size: M52 x 2-7H
Weight Per Grip: 331 lbs.
Temperature Range (Celsius): 4 to 40
(4) Sets of Flat Wedges Width: 101 mm
Maximum Thickness: 51 mm
Minimum Thickness: 3 mm
(4) Sets of Vee Wedges Width: 101 mm
Maximum Diameter: 51mm
Minimum Diameter: 10 mm
FOB: Warren, MI 48091
Click for quote | G-FB500KNHWG
