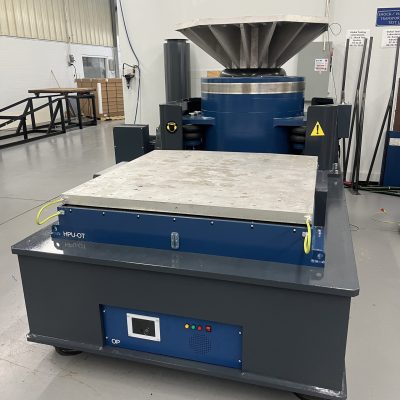

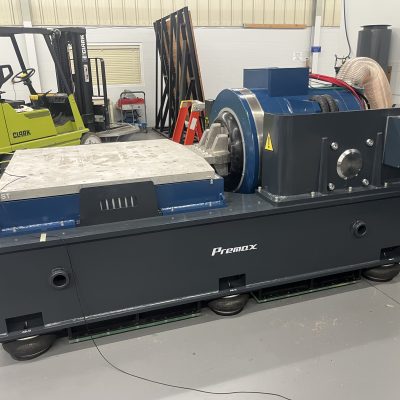

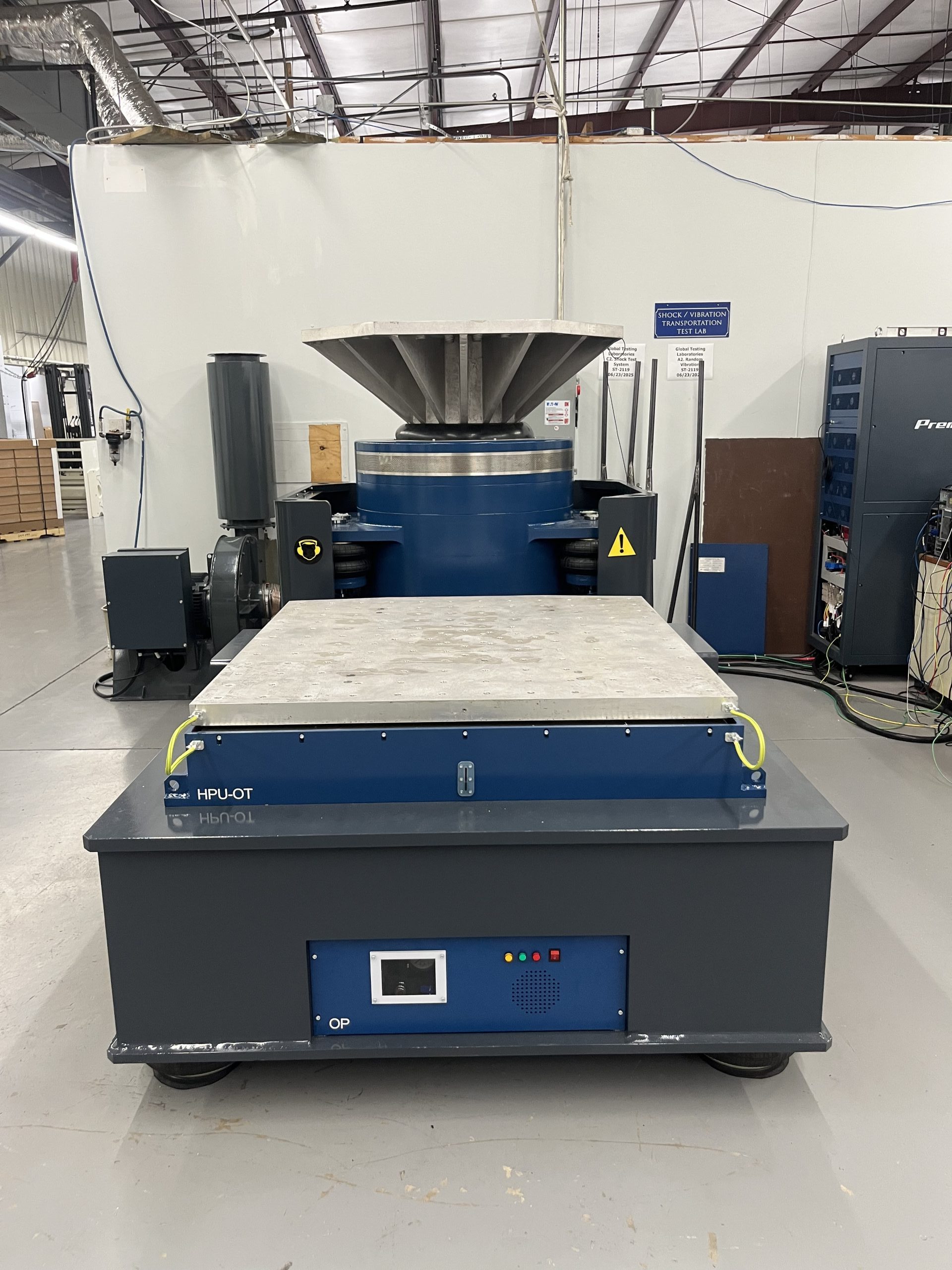

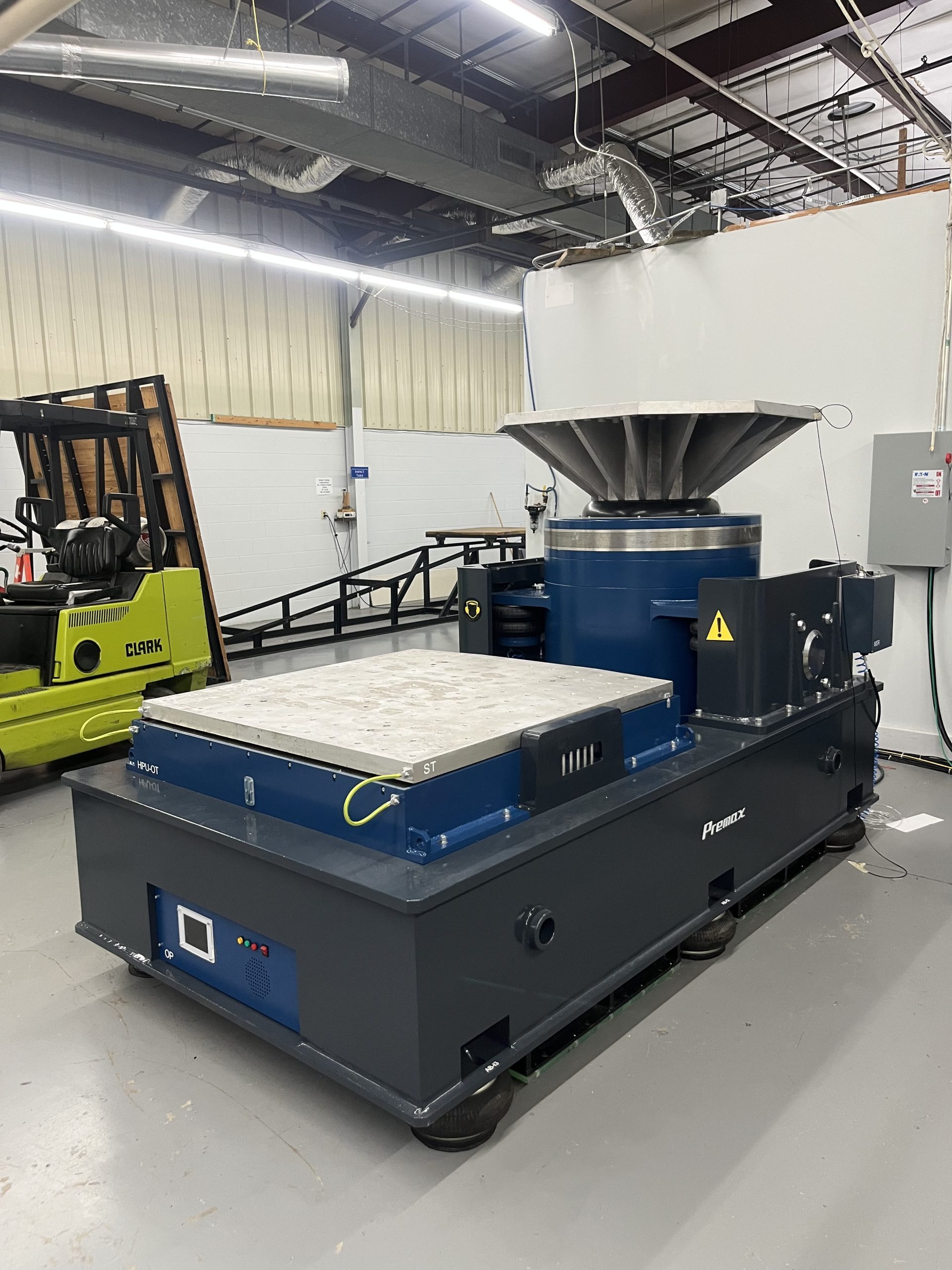

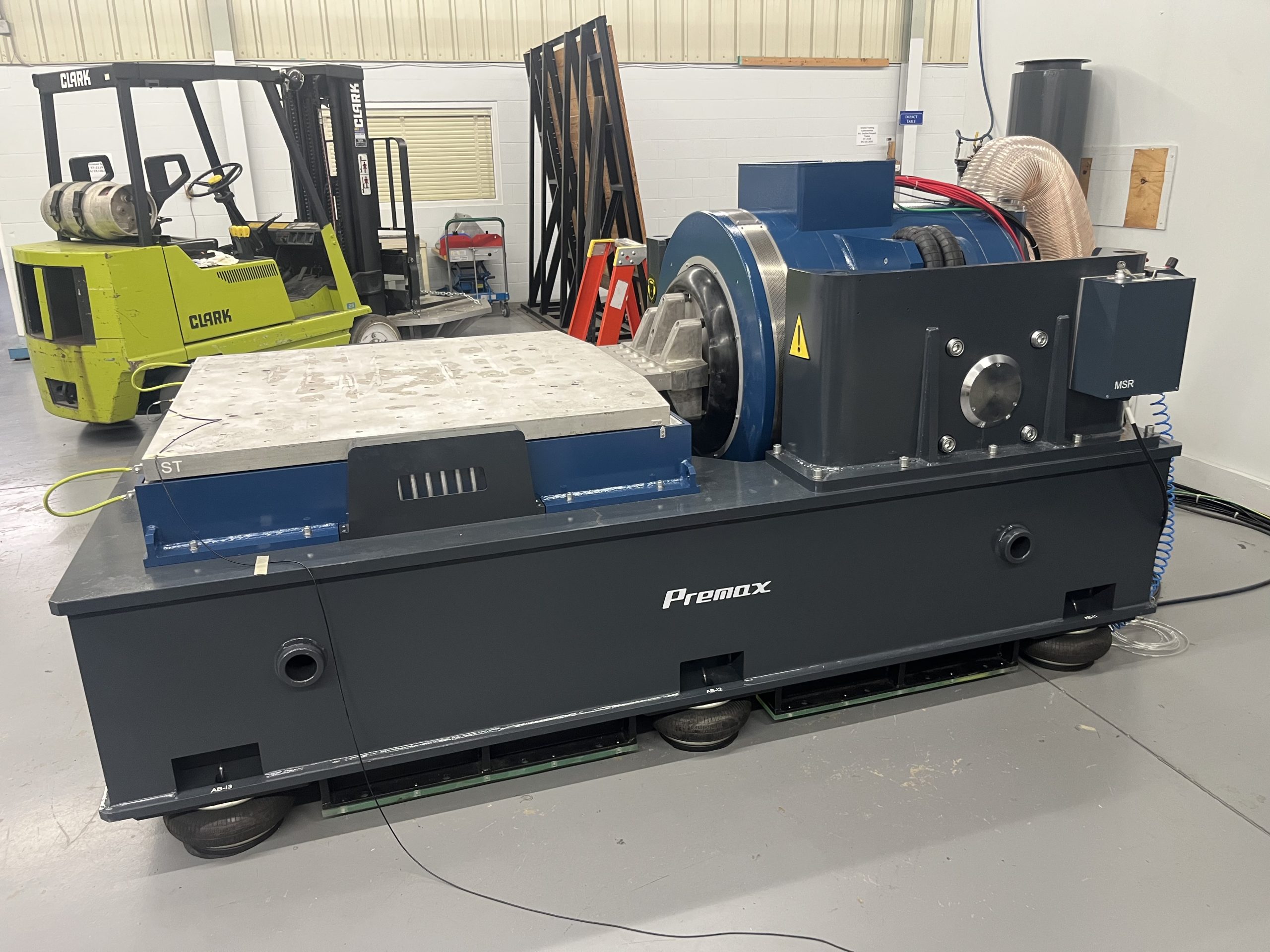

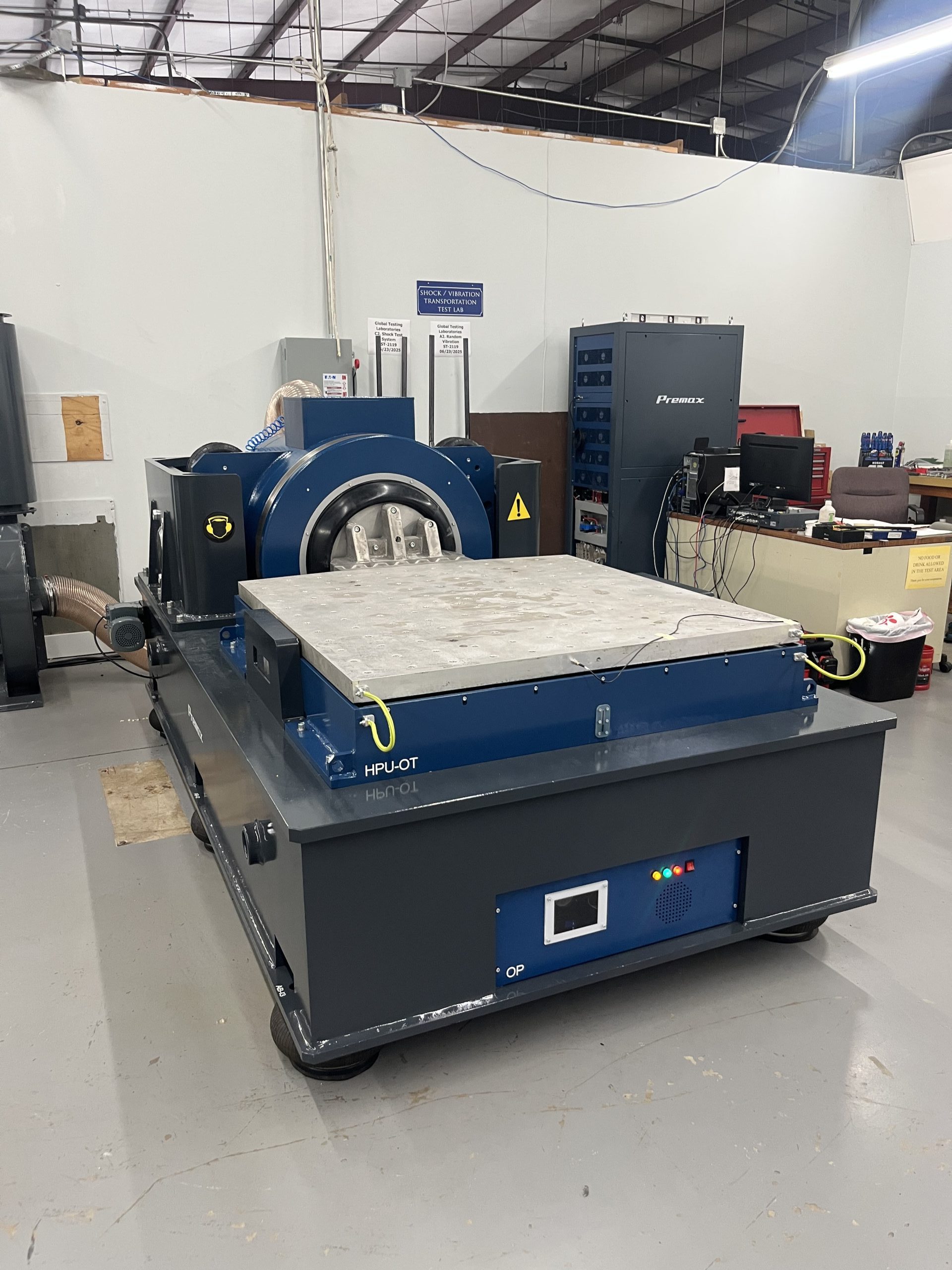

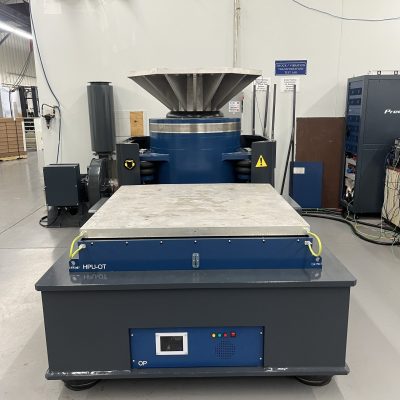

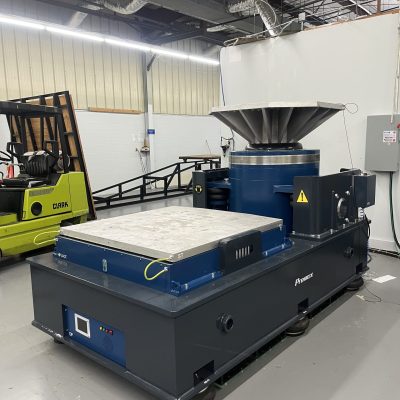

NEW 12KIP (53.4kN) ITS-5400LS-ST Long Stroke Vibration System with Slip Table

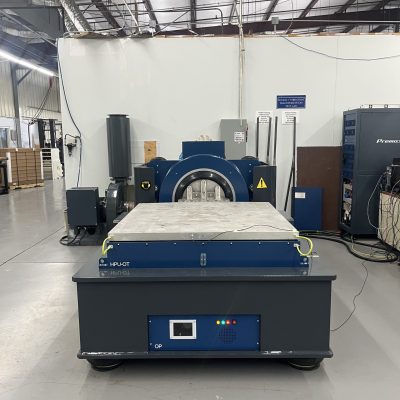

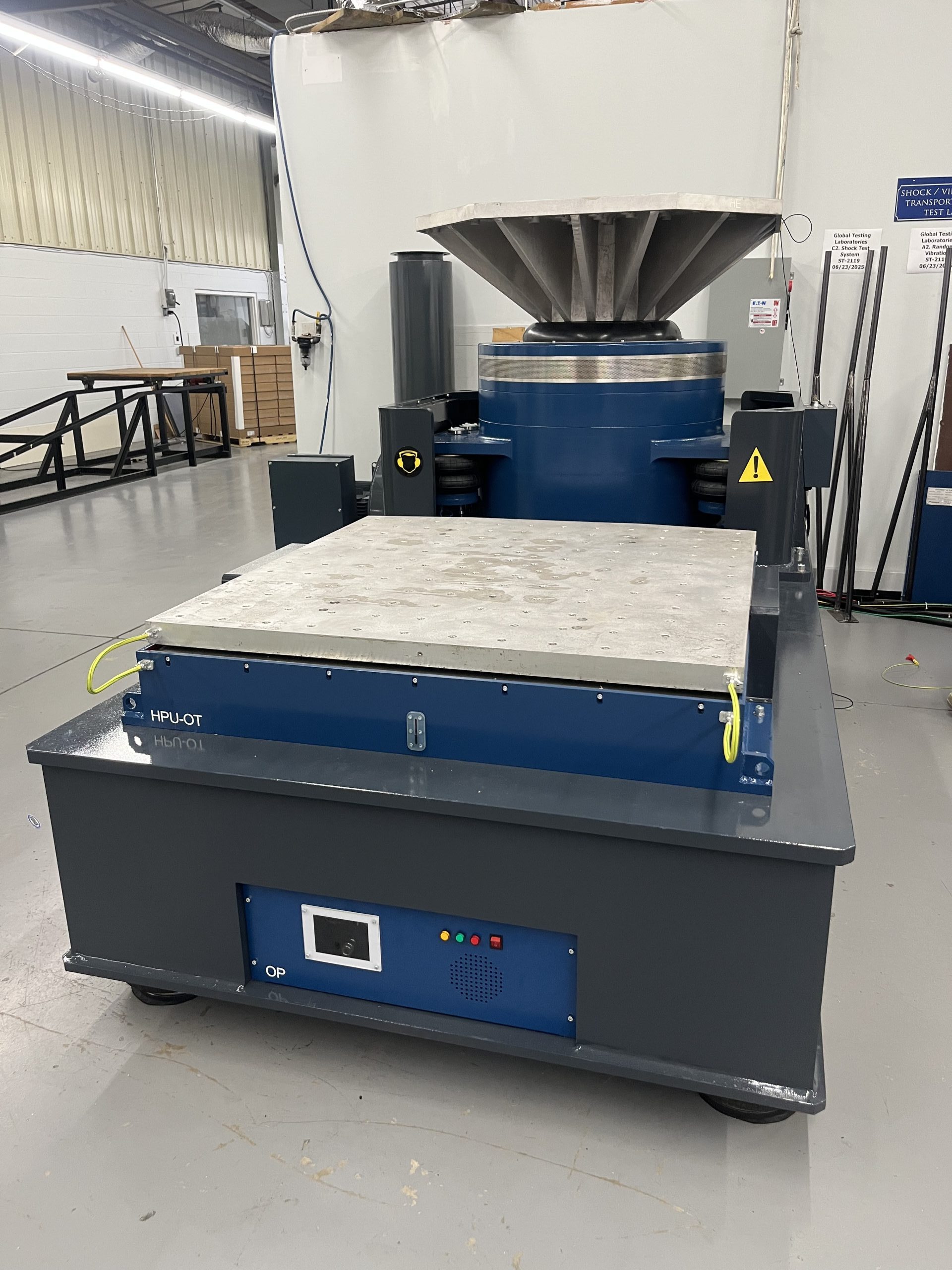

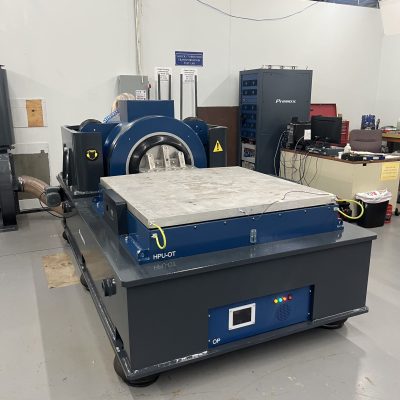

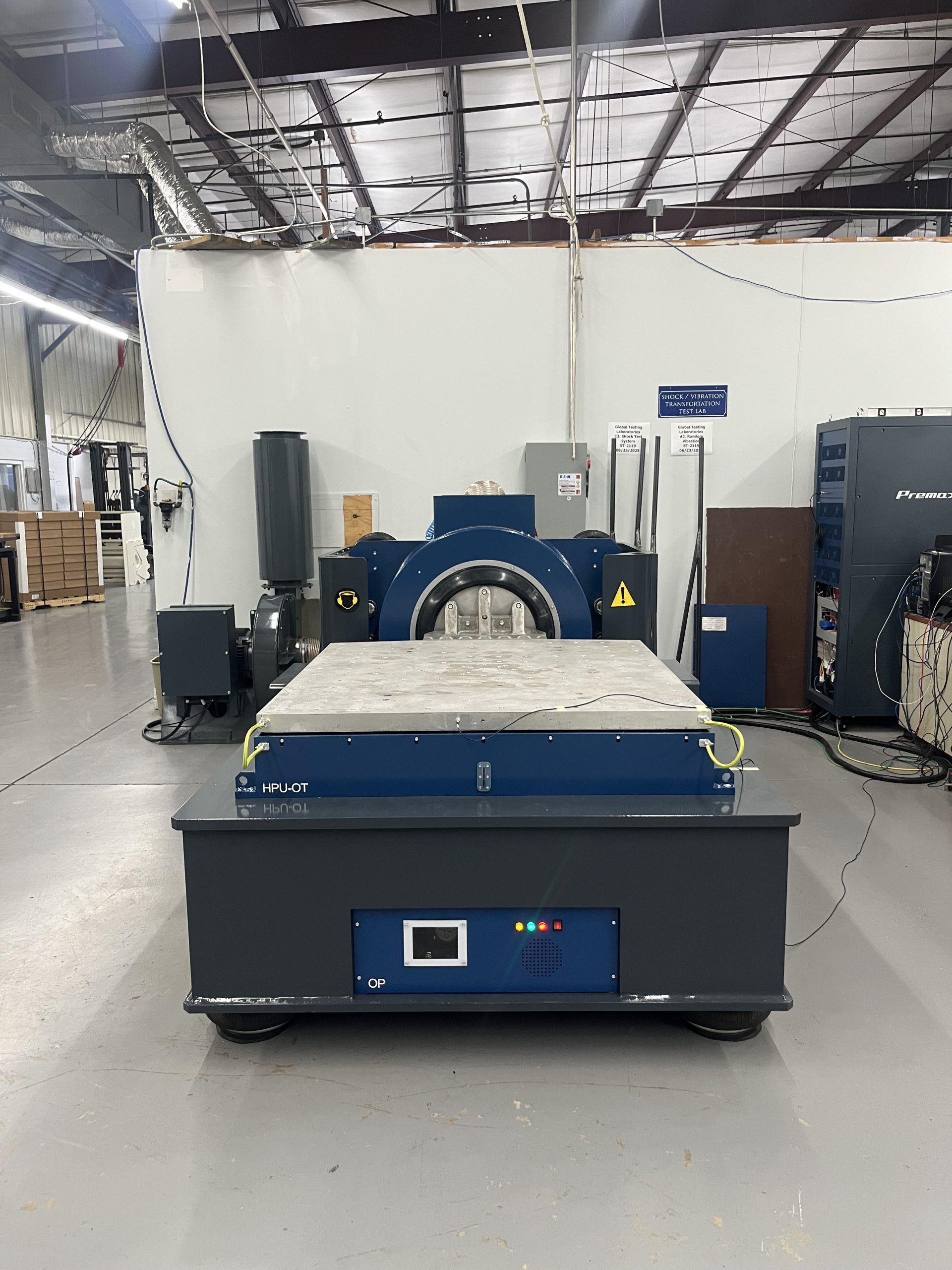

New Frank Bacon Model ITS-5400LS-ST, 12,000 lbf (53.4 kN) Long Stroke Electrodynamic Vibration Test System with Power Amplifier and Slip Table.

SPECIFICATIONS

Sine Force Rating: 53.4 kN (12,000 lbf)

Random Force Rating: 53.4 kN (12,000 lbf)

Shock Peak Force Rating: 106 kN (24,000 lbf)

Peak to Peak Displacement: 100 mm (4.00”)

Frequency Range (Hz): 2– 2,500 Max

Armature Diameter: 445 mm (17.5”)

Armature Mass (lbs.): 63 kg (138 lbs.)

Sine Peak Acceleration (Bare Table): 800 m/s^2 (80 g)

Max Payload: 800 kg (1,800 lbs.)

Voltage Requirements (V, Hz, Ph): 480, 60, 3, 95kVA

Utility Requirements: 87 PSI Compressed Air

Weight (Unpacked): 17,196 lbs.

Dimensions (Unpacked): 102.4 "L x 63"W x 52.4"H

EQUIPPED WITH:

• ITS-54ST-1200M: 1200 mm W x 1200 mm L Magnesium Slip Table System with Base (Weight: 367 lbs.) Frequency Limit: 2,000 Hz
• ITS-54HE-1200SM: 1200 mm W x 1200 mm L Magnesium Head Expander (Weight: 355 lbs.) Frequency Limit: 1,200 Hz
• ITS-H563A: 56 kVA Air Cooled Power Amplifier
• ITS-W20: 15 kW Blower
• Vibration Isolation Air-Bag System for Foundation Free Installation
• Signal Input for Closed-Loop Control (Vibration Controller Required)

FOB Warren, MI

1 Year Parts and Labor Warranty
