New 2,000kN (449,616 lbf) Model FB-2000HC Compression Testing Machine


New 2,000kN (449,616 lbf) Model FB-2000HC Compression Testing Machine
SPECIFICATIONS:
Compression Testing Opening: 19.68"
Distance Between Columns: 14.5"
Testing Stroke: 3.9
Compression Plate Size: 14.5
Piston Diameter: 12.2"
Testing Speed (IPM): 0 to 2
Frame Stiffness: 8 Giga-Newton/Meter
Approximate Overall Dimensions:
Servo Hydraulic Console (W x D x H): 36" x 48" x 48"
Load Frame (W x D x H): 25" x 26.5" x 98"
Approximate Weight (lbs): 3,400
Electrical Requirements (V,Hz,PH): 220/440, 60, 3
​
EQUIPPED WITH:

  • Computer System with Keyboard and Mouse.
  • 24" LED-Backlit LCD Color Monitor
  • Microsoft Windows 11 Professional, Workstation
  • MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
  • MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
  • Precision Magnetostrective Displacement Sensor for Speed and Position Feedback
  • Precision 2000 kN Load Cell Indicating System
  • 5,000 PSI Servo Air-Cooled Hydraulic Pumping System for Precision Closed Loop Control (Load, Position & Strain)
  • Upper Spherically Seated Compression Platen and Fixed Lower Compression Platen

FOB Warren, MI
2 Year Parts and Labor Warranty

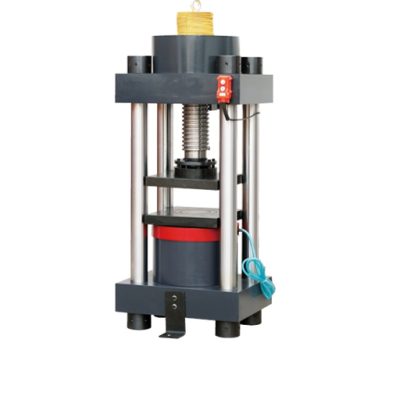

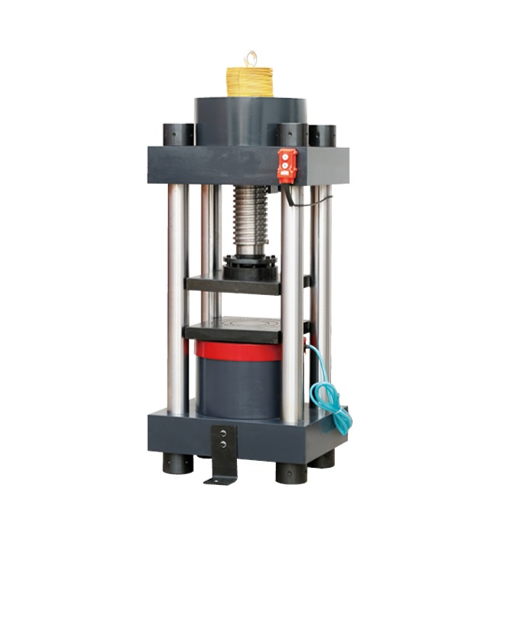

*Representative Image


Click for quote | #FB-2000HC

DOWNLOAD SPEC SHEET
