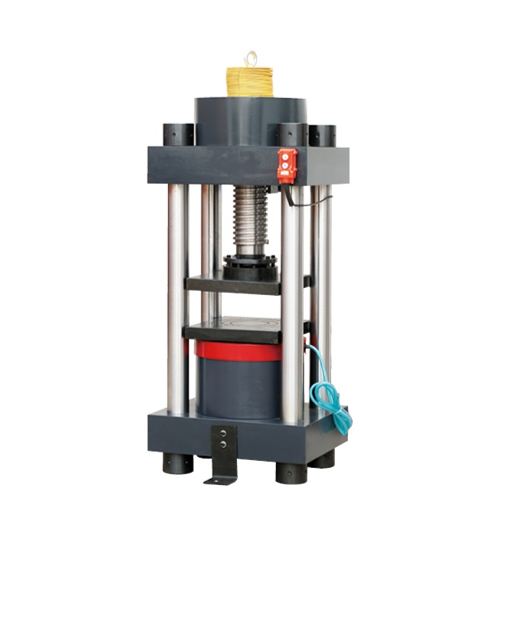

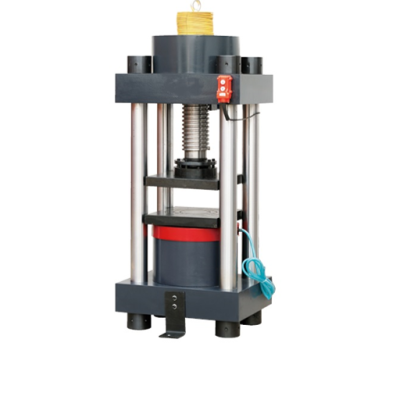

New 3000kN (674,426 lbf) FB-3000HC Compression Testing Machine
New 3,000 kN (674,426 lbf) Capacity Frank Bacon Model FB-3000HC, Hydraulic Compression Testing Machine with Adjustable top crosshead.
SPECIFICATIONS:
Compression Testing Opening: 19.68"
Distance Between Columns: 14.5"
Testing Stroke: 3.9
Compression Plate Size: 15.7" x 19.5
Piston Diameter: 15.7"
Testing Speed (IPM): 0 to 2
Approximate Overall Dimensions:
Servo Hydraulic Console (W x D x H): 36" x 48" x 48"
Load Frame (W x D x H): 31.5" x 31.5" x 98"
Approximate Weight (lbs): 5,100
Electrical Requirements (V,Hz,PH): 220/440, 60, 3
EQUIPPED WITH:
-
Computer System with Keyboard and Mouse.
-
24" LED-Backlit LCD Color Monitor
-
Microsoft Windows 11 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
-
Precision Magnetostrective Displacement Sensor for Speed and Position Feedback
-
Precision 3000 kN Load Cell Indicating System
-
5,000 PSI Servo Air-Cooled Hydraulic Pumping System for Precision Closed Loop Control (Load, Position & Strain)
-
Upper Spherically Seated Compression Platen and Fixed Lower Compression Platen
FOB Warren, MI
2 Year Parts and Labor Warranty
Click for quote | #FB-3000HC
