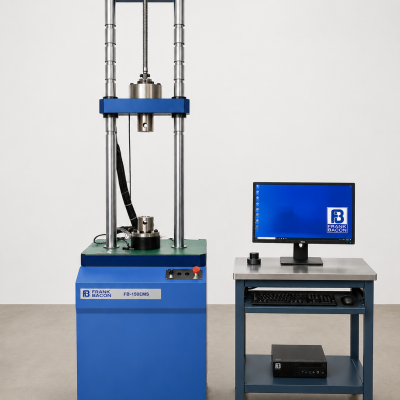

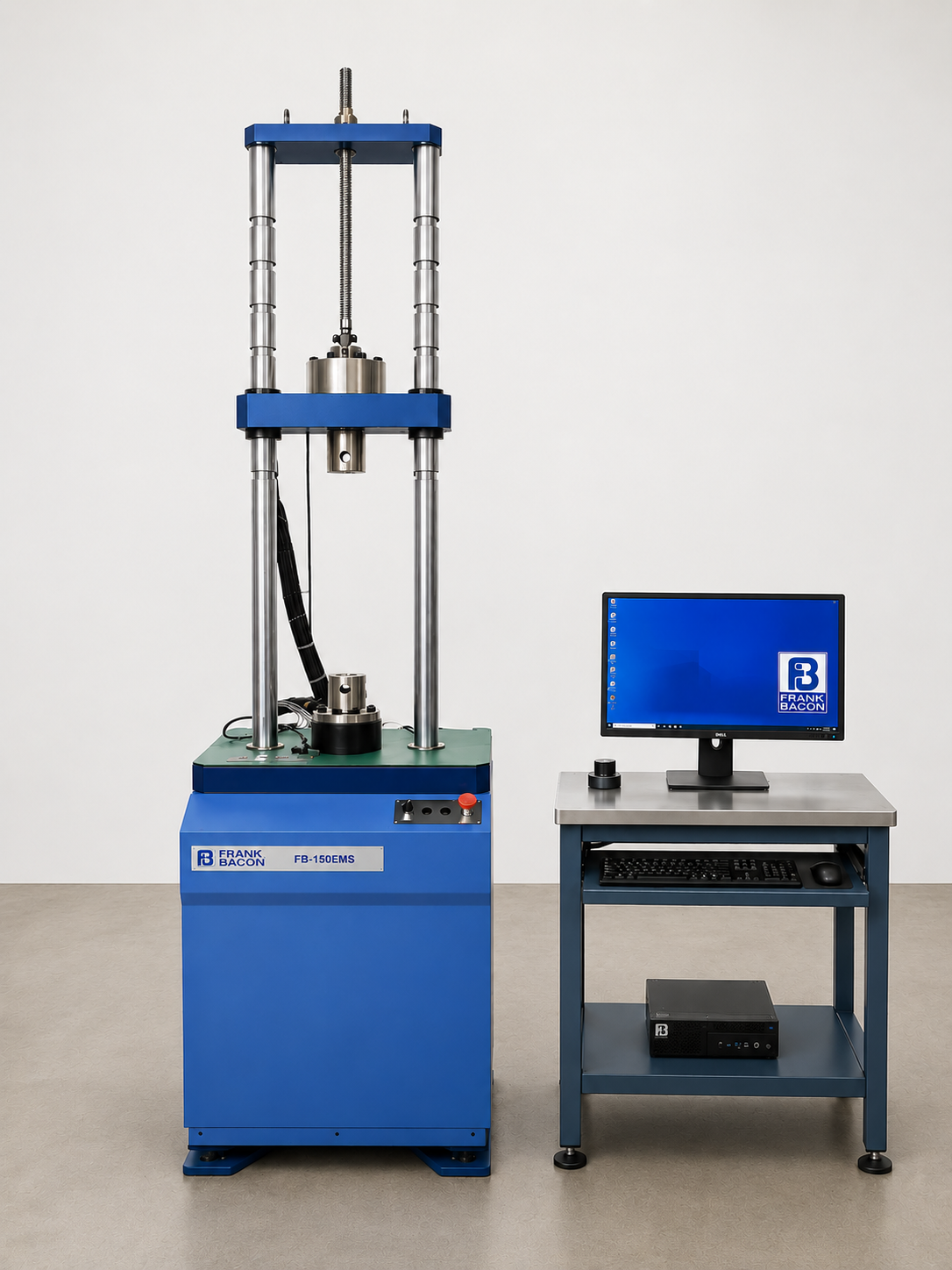

New 33.75K (150kN) FB-150EMS Tensile & Compression Test Machine

(1) NEW (1) NEW 33,750 lbf (150 kN) Capacity, Frank Bacon Machinery Model, FB-150EMS, Ball Screw Tension/Compression Testing Machine with Precision Load Cell.

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 17.5"
Distance Between Columns: 11.8"
Testing Stroke: 5.9"
Testing Speed: 0-5.9 (IPM)
Approximate Overall Dimensions:
Load Frame (W x D x H): 24.8" x 22.5" x 90"
Approximate Weight (Lbs): 1,800
Electrical Requirements: 230V 1Phase
Load Measurement Resolution: .01kN

EQUIPPED WITH:

• MTGenius Materials Testing Software and Controller with Load, Position, Axial Strain, Transverse Strain and AUX Channels
• New Windows Computer System with Monitor, Keyboard and Mouse
• Adjustable Top Crosshead Position with Manual Screw Drive
• Yaskawa AC Servo Motor and Drive System
• Precision Ball Screw Assembly
• High Precision Position Encoder for Speed and Position Feedback
• 150kN Tension and Compression Load cell

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification

Grips, Fixtures, and Accessories Available
