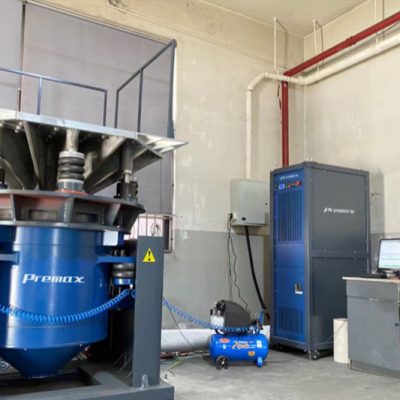

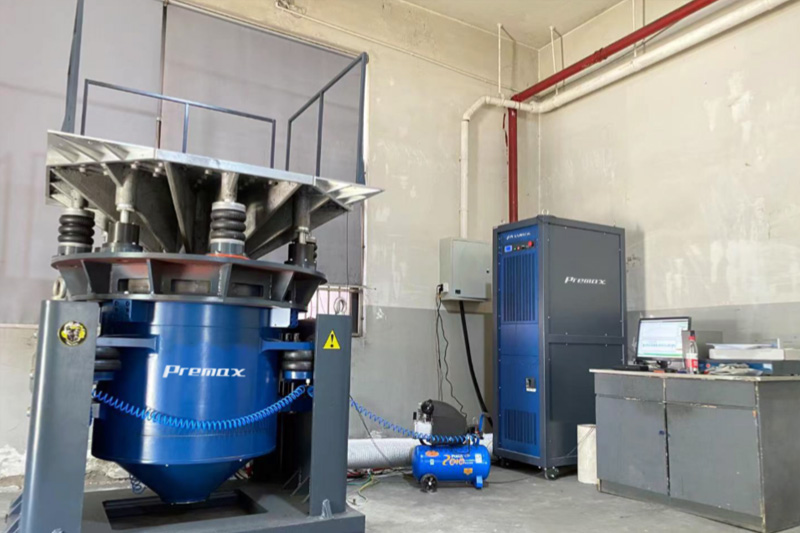

New 7KIP ITS-3200LS Long Stroke Electro-Dynamic Vibration Test System

New Frank Bacon, Model ITS-3200LS, 7,000 lbf Electro-Dynamic Vibration Test System with Power Amplifier, Head Expander and Blower

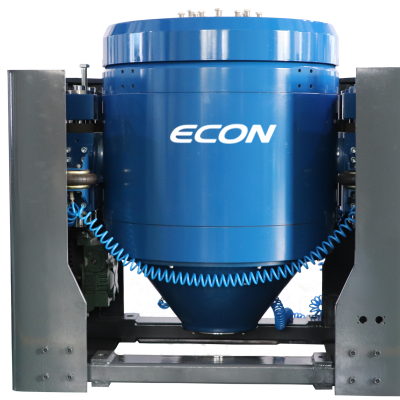

Frank Bacon ITS-3200LS

SPECIFICATIONS:

(Sine) Force Rating: 7,000 lbf (32 kN)

(Random) Force Rating: 7,000 lbf (32 kN)

(Shock Peak) Force Rating: 14,000 lbf (64 kN)

Peak to Peak Displacement: 100 mm  (4.00”)

Frequency Range (Hz): .5 – 2,000 Max

Armature Diameter: 9.8”

Armature Mass (lbs.): 88 lbs (40 kg)

Sine Peak Acceleration (Bare Table): 750 m/s^2 (75 g)

Max Velocity: 2 m/s (78 in/s)

Max Payload: 1,100 lbs (500 kg)

Voltage Requirements(V, Hz, Ph): 480, 60, 3

Utility Requirements: 87 PSI Compressed Air

Overall Dimensions: 46” L x 42”W x 45” H (Less Head Expander)

Total Weight: 6,250 lbs.

EQUIPPED WITH:

• 1200mm x 1200mm Magnesium Head Expander  (Weight:  114 lbs)
• VSA-D323A 32 kVA Air Cooled Power Amplifier
• PBL-W30 7.5 kW Blower
• Signal Input for Closed-Loop Control (Vibration Controller Required)

FOB Warren, MI

1 Year Parts and Labor Warranty
