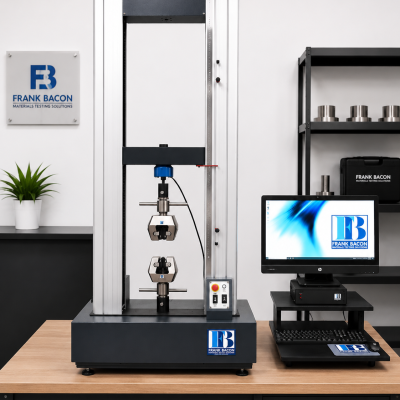

NEW Frank Bacon 11,250 lbf (50kN) Tensile & Compression Test System Bench Top
NEW 11,250 lbf (50 kN) Capacity, Frank Bacon Machinery Table Top Tension and Compression Testing Machine with Precision Load Cell.
NEW Frank Bacon 50kN Bench Top
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 57"
Compression Testing Opening (Less Tooling): 57"
Distance Between Columns/Screws: 16"
Table Size: 16" x 5.5"
Testing Stroke: 57"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Load Frame Dimensions: 35" x 23" x 80"
Electrical Requirements (V,Hz,PH): 230, 60, 1
EQUIPPED WITH:
-
Computer with Keyboard & Mouse
-
24" LED-Backlit LCD Color Monitor or Better & Manual
-
Microsoft Windows 10 Professional, Workstation
-
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
-
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
-
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
-
Precision AC Servo Motor and Drive
-
50kN Tension & Compression Load Cell
-
Upper and Lower Quick Release Adaptors
FOB Warren, MI
NEW, Calibrated and Certified
2 Year Parts and Labor Warranty 30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification
Click for quote | #FB-50EM-TT
