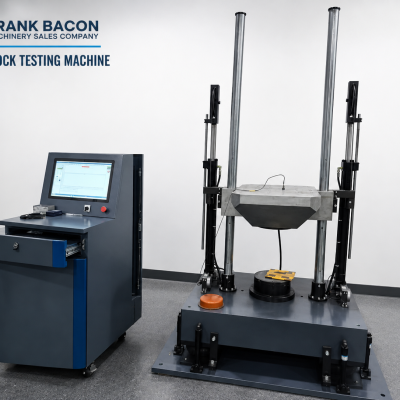

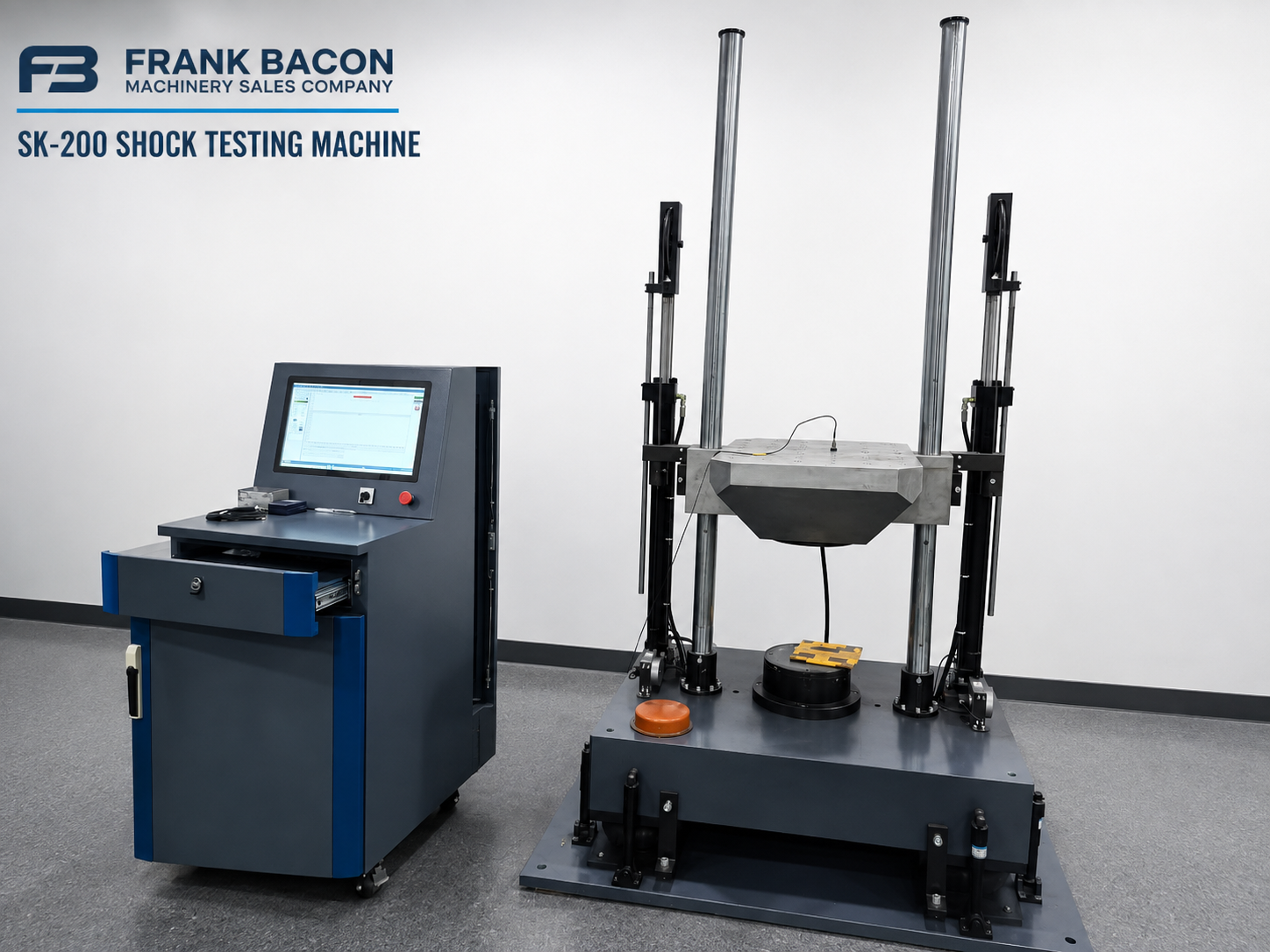

New SK-200 Free Fall Shock Test System
SK-200 Shock Testing Machine

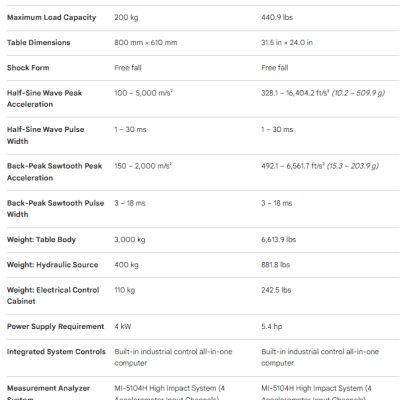

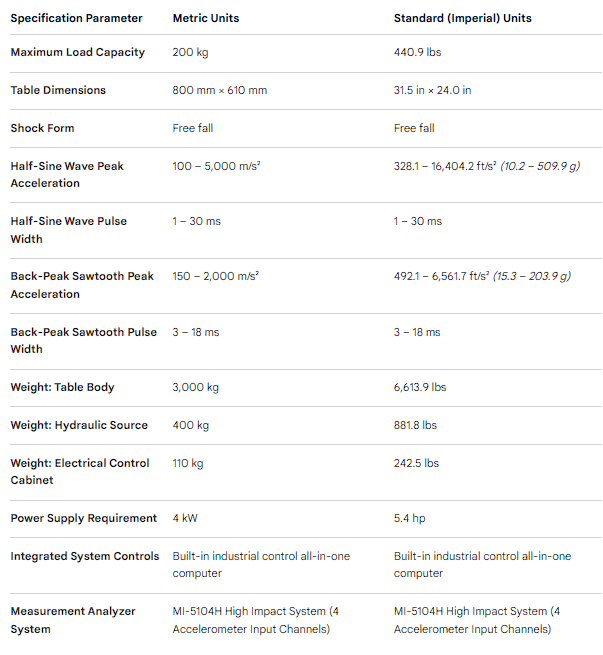

SPECIFICATIONS:
Electrical Requirements: 230V, 60HZ, 3PH (Hydraulic Lift System)
Maximum Specimen Weight: 440 lbs (200 kg)
Maximum Specimen Height: No Restrictions
Maximum Acceleration: 510 g ( 5,000 m/s^2)
Half Sine Wave Pulse Width: 1 - 30 ms
Over all Dimensions (W x D x H): 64" x 42" x 107"
Overall Weight: 6,800 lbs
EQUIPPED WITH:
- 31.5"W x 24"D Table (800 mm x 610 mm)
- Two Precision Guide Rods
- Wide Range of Shock Pulses Available
- Hydraulic Lift Cylinders for Quick Loading

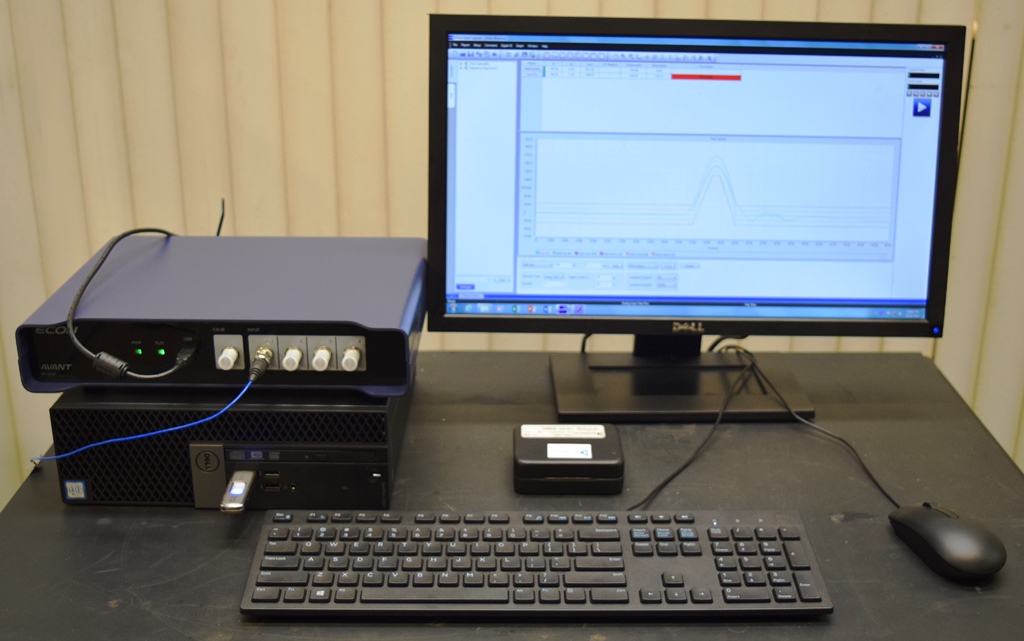

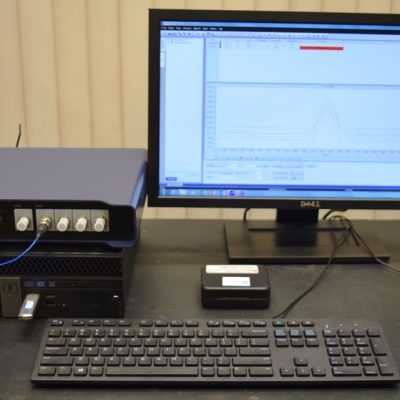

- New MI-5104H 4-Channel High Impact Measurement Analyzer System with New Windows Computer System
- Software: Shock Measurement, Pulse Analysis, Shock Response Spectrum Analysis
FOB Warren, MI
1 Year Parts and Labor Warranty
Click for quote | #SK-200
