Used Lansmont Model 6000 TTV2 Hydraulic Vibration Test System

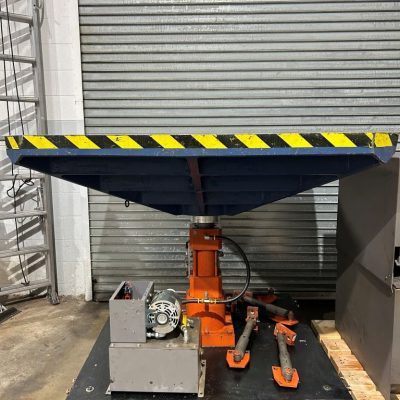

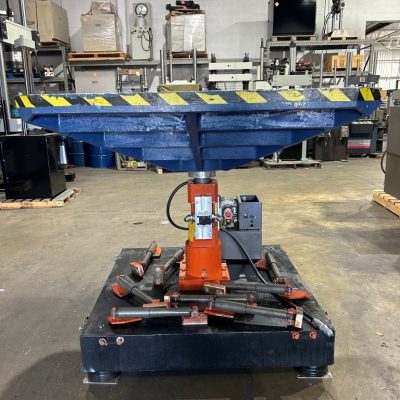

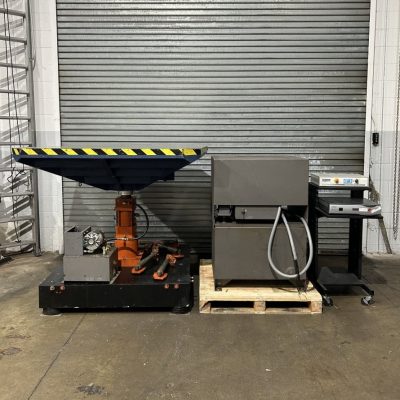

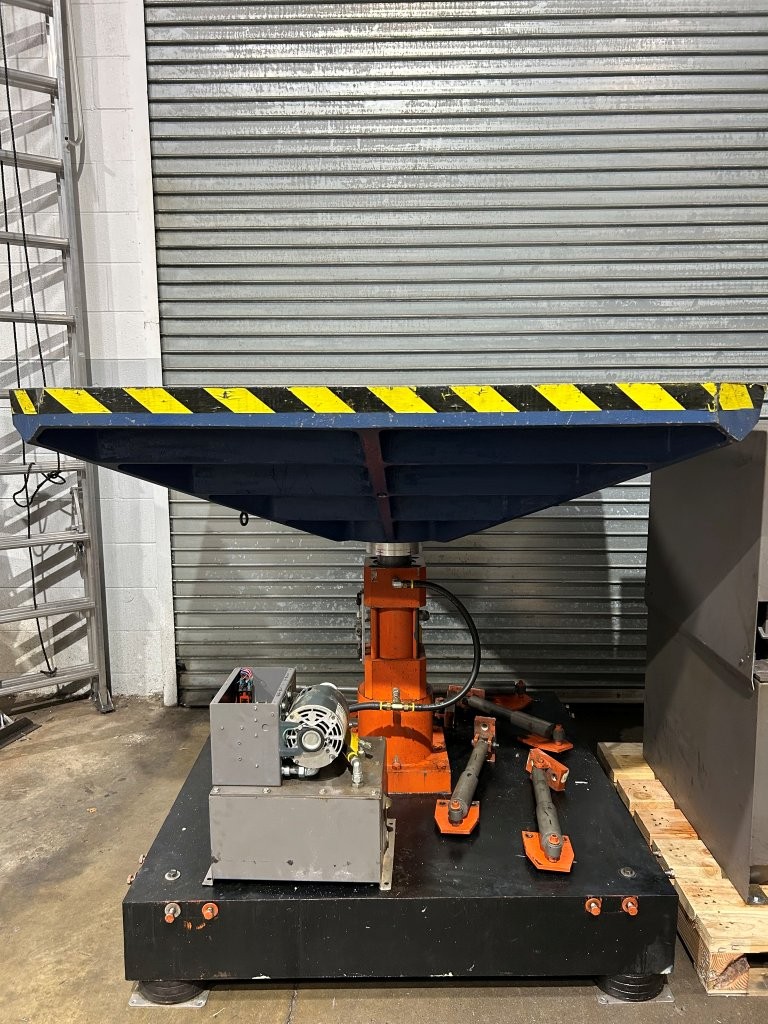

Lansmont 6000 TTV2 Vibration Test System
SPECIFICATIONS:
Load Capacity: 2000 lbs
Maximum Stroke: 6" Peak to Peak
Frequency Range: 3-200 Hz
Actuator Stall Force: 6160 lbf (27 kN) at 2,500 PSI
Voltage Requirements: 460V/230V, 60Hz, 3Ph
Cooling Water Requirements: 60 Degrees F at 6 Gal/Min.
Overall Dimensions:
Seismic Base: 49"W x 49"D x 7.75"Thick
Shaker: 60"W x 60"D x 55"H
Hydraulic Pump: 31"W x 31"D x 45"H
EQUIPPED WITH:
-

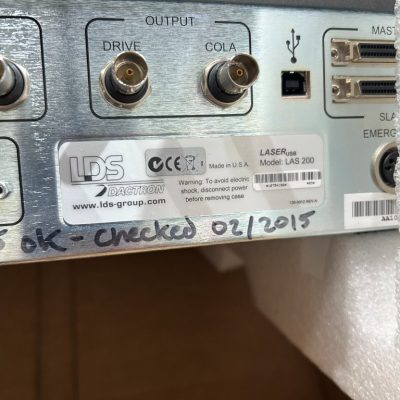

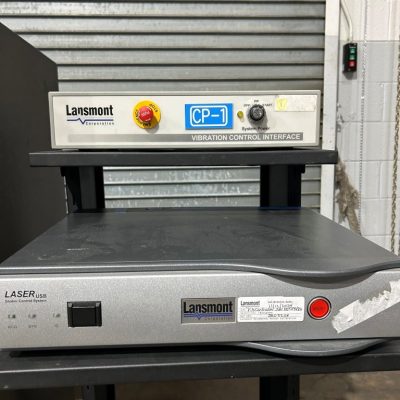

Lansmont TTV2 Controls: Lansmont Vibration Controller Interface and Lansmont Vibration Controller S/N 10754186, Model LAS 200
-
Lansmont Water-Cooled Hydraulic Power Supply
-
Hydraulic Hoses and System Cables
-
Seismic Base with Isolators
-
60” x 60" Aluminum Table with Tapped Grid Area
-
General Purpose Accelerometer & Signal Cable
FOB Warren, MI

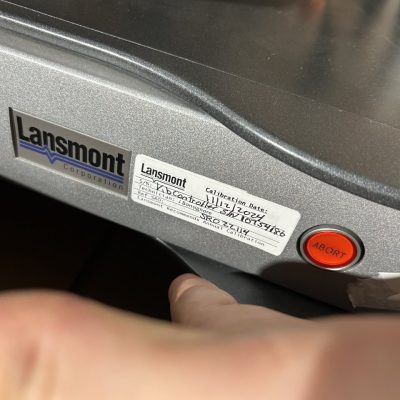

*Serviced by Lansmont on 11/12/24 with Checkout Sheet Available Upon Request*
30 Day Satisfaction Guarantee Return Privilege
*Actual Images
Click for quote | #13303-00
